Solar Brace

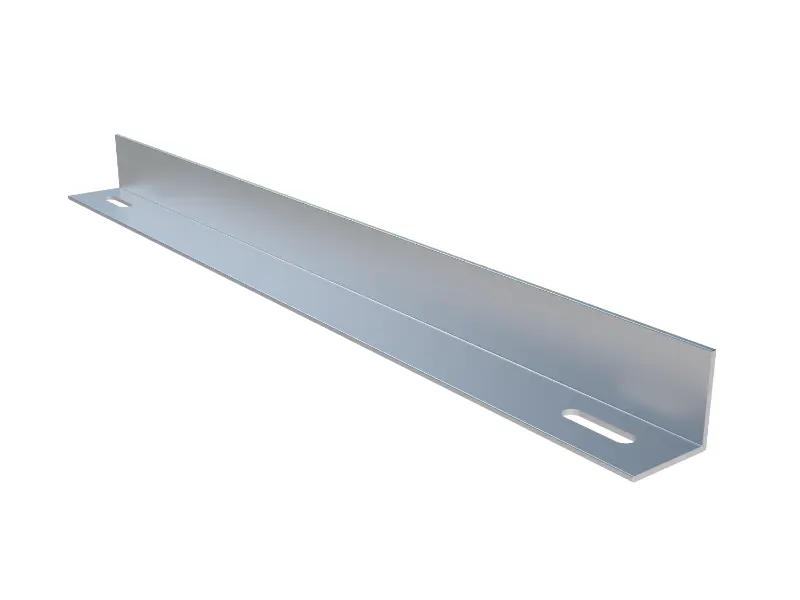

Within photovoltaic mounting systems, Solar Brace typically appears as a sturdy L-shaped bracket. Its profile is straight, with adjustable-length connectors at both ends—one secured to the upper section of the main column, the other anchored at an inclined angle to the adjacent support pillar. Its core function is to prevent the entire mounting system from tipping sideways.Please contact us to inquire about the price.

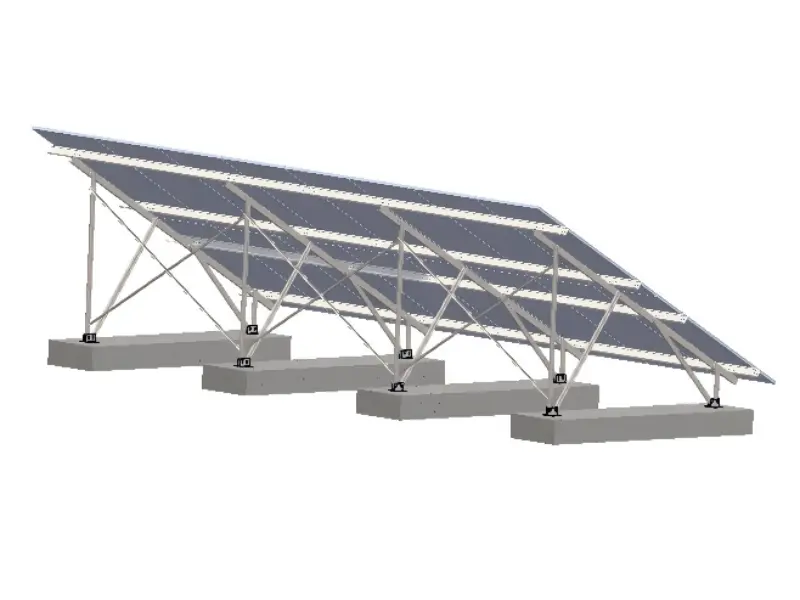

Solar brace rail is one of the most critical components in a photovoltaic mounting system, particularly in regions with high wind and snow loads where its usage frequency increases significantly. Typically installed at both ends of a photovoltaic array, the number of intermediate units required depends on the total length of the array, generally necessitating one every span or two.

Design features

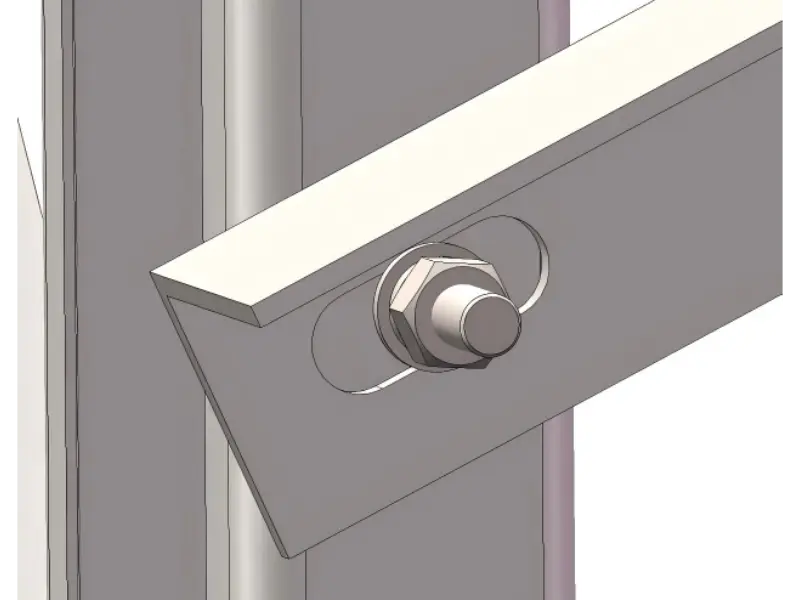

Due to Solar mount brace’s L-shaped design, engineers typically equip it with hex socket bolts to facilitate installation for workers. This significantly simplifies the installation process because both manual and electric screwdrivers require sufficient space, and the compact size of hex sockets makes them highly favored by engineers and workers alike. Additionally, it commonly uses M8*30 bolts, which further ensure stability and safety.

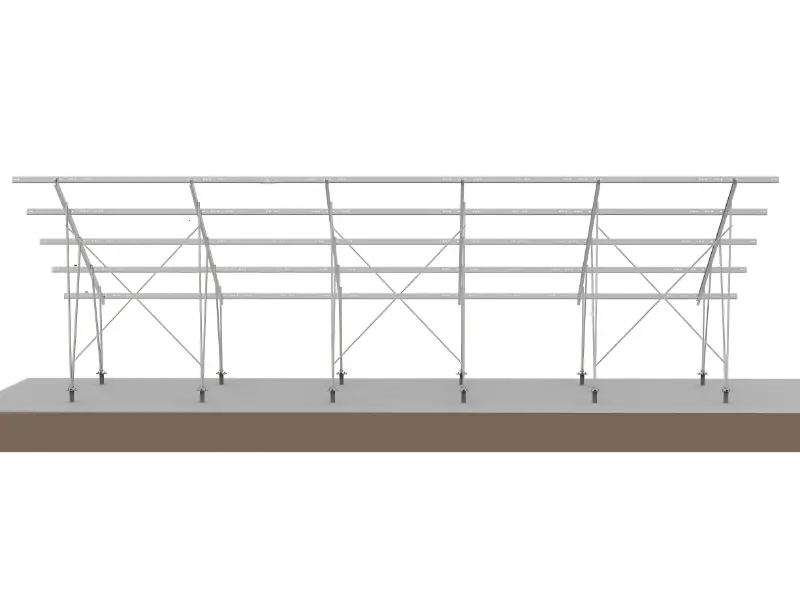

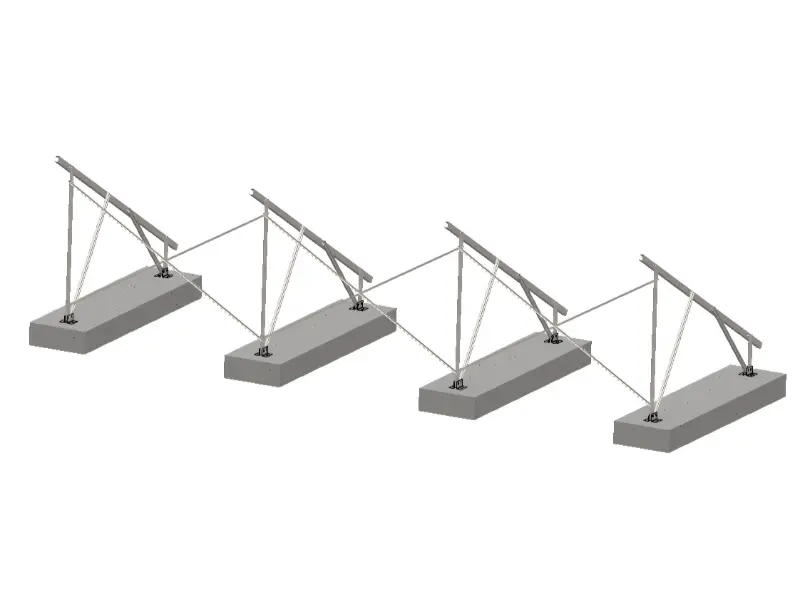

The installation process of Solar mount brace rail is not complicated. Even adjacent spans share the same column, and in such cases, certain precautions must be taken during installation. First, within a single span, it must be installed on both sides of the column, presenting a cross-shaped configuration to ensure the entire system's stability. Second, when connecting to the next span, the opposite installation method is required to guarantee smooth installation.
