Steel Solar Rail

Feature

Honor Energy's steel solar rails are good quality and budget-friendly.
1.They have ultra-high strength supports—made from top-notch steel, with a sturdy structure, and their load-bearing capacity is way higher than aluminum ones.It is particularly suitable for large ground-mounted power stations and areas with strong wind pressure.

2.Really good at handling the weather: The surface is hot-dip galvanized, so it doesn’t rust or corrode. It can stand up to rough stuff like salt spray and acid rain, and it lasts more than 25 years

3.Economical and practical choice:Compared with aluminum alloy tracks, it has a greater cost advantage and significantly reduces the cost of photovoltaic systems while ensuring quality.

4.Flexible installation design: It comes in various cross-sectional styles like C-shape and U-shape, works with all sorts of fixtures, and is easy and quick to put up—fitting all kinds of installation needs.

5.Stable and reliable guarantee:After strict mechanical tests, it has excellent wind pressure resistance and snow load resistance performance, ensuring the long-term safe and stable operation of the photovoltaic system.

Description

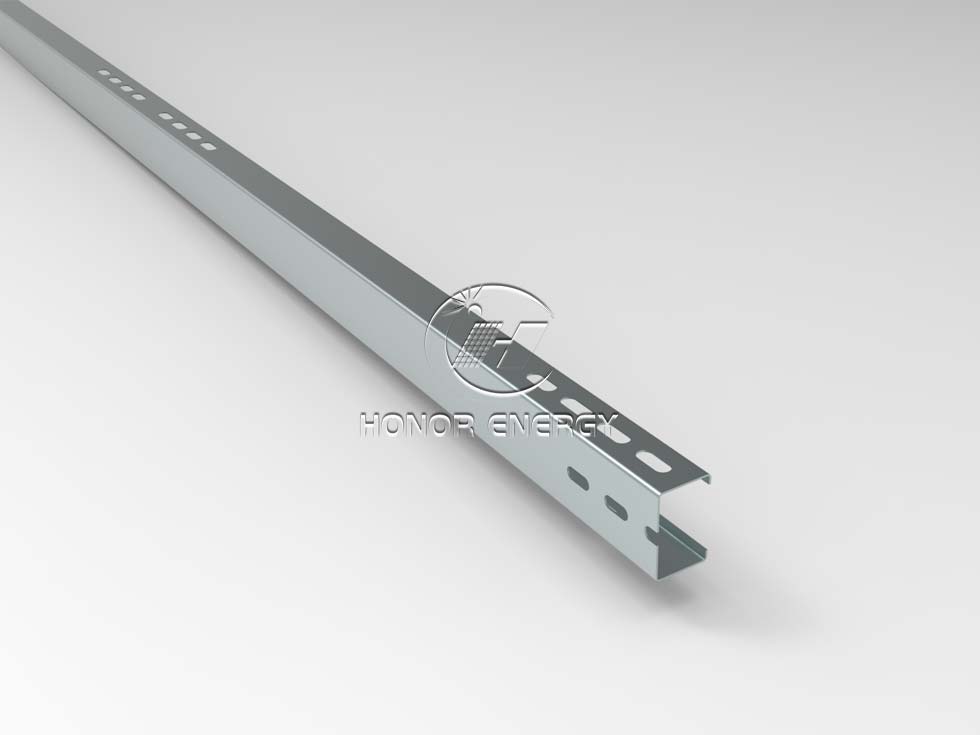

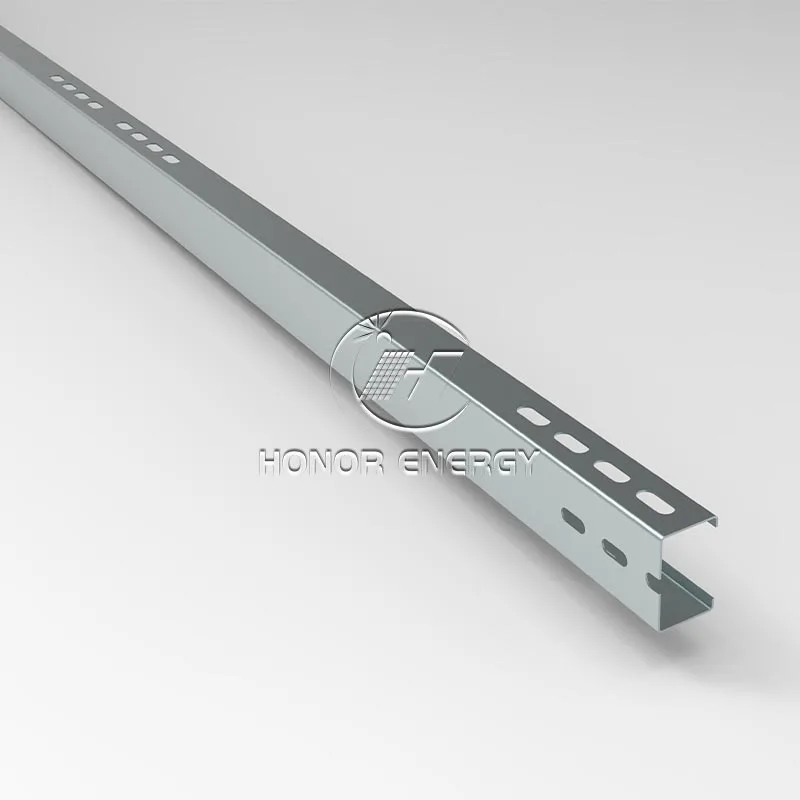

1.C-type steel solar rail is really good at handling heavy loads. Its thickened steel walls give it solid support, so it’s perfect for large solar power stations and any setup that needs to bear a lot of weight.

Stable structure -The open C-shape makes it easy to install and secure. It fits with all sorts of fixtures and stands up well to wind and pressure.
Economical and long-lasting-Made from good carbon steel and given a hot-dip galvanizing treatment, it doesn’t rust or corrode.

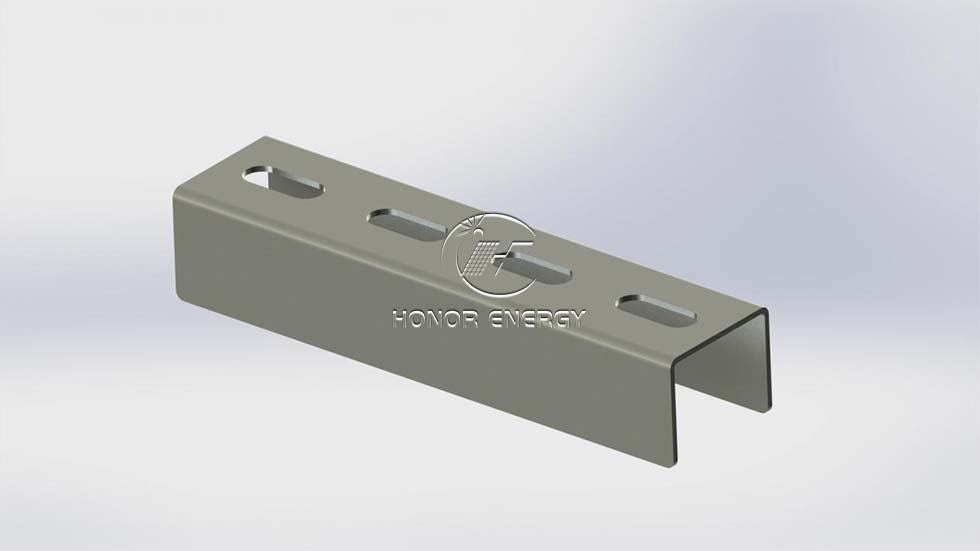

2.U-shaped steel rail is light but sturdy. The U-groove design keeps it from being too heavy, yet it stays rigid enough—perfect for distributed solar setups and rooftop projects.

Convenient wiring-The open structure makes cable management easy, cuts down on how tricky installation is, and speeds up the work.

High adaptability-You can get it with surface galvanization or spraying. It handles the weather well, so it works in tough spots like deserts and coastal areas.

Installation steps

1.Mark the installation positions of the tracks according to the design drawings and ensure the accuracy of the spacing.
2.Install the support components (columns or beams), and adjust the levelness and verticality.
3.Place the steel solar panel rails correctly in the C/U slot direction and initially fix them with fixtures.
4.Lock it with stainless steel bolts (M8 or above) according to the standard torque (40-50N·m).
5.Use a level to check the overall straightness (≤3mm/10m) and correct the deviation.
6.Make sure all connections are not loose, the galvanized coating is not damaged, and clean up the site.

FAQ

1.What are the advantages of carbon steel tracks over aluminum alloy tracks?
Answer: Stronger bearing capacity, lower cost, suitable for large power and high load demand scenario, provide long-term anti-corrosion galvanized processing.

2. In which environments is it applicable?
Answer: Our steel solar rail uses hot-dip galvanizing for corrosion protection, making it suitable for harsh environments such as coastal areas, high-humidity areas, and industrial zones. It has a service life of over 25 years.

3.How to maintain and service?
Answer: Regularly check if the fasteners are loose, clean the dust on the track, and if the galvanized layer is damaged, repaint it in time to prevent rust.
