Solar IV type Carport Mounting system

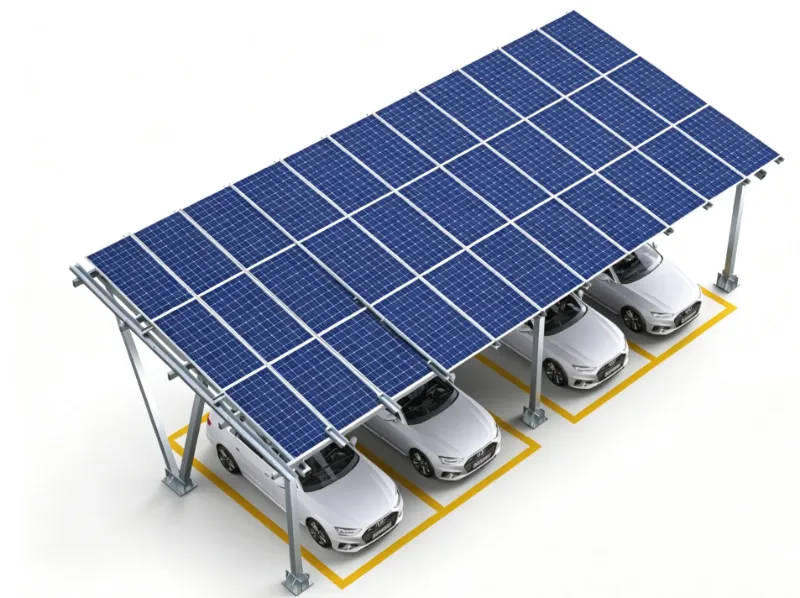

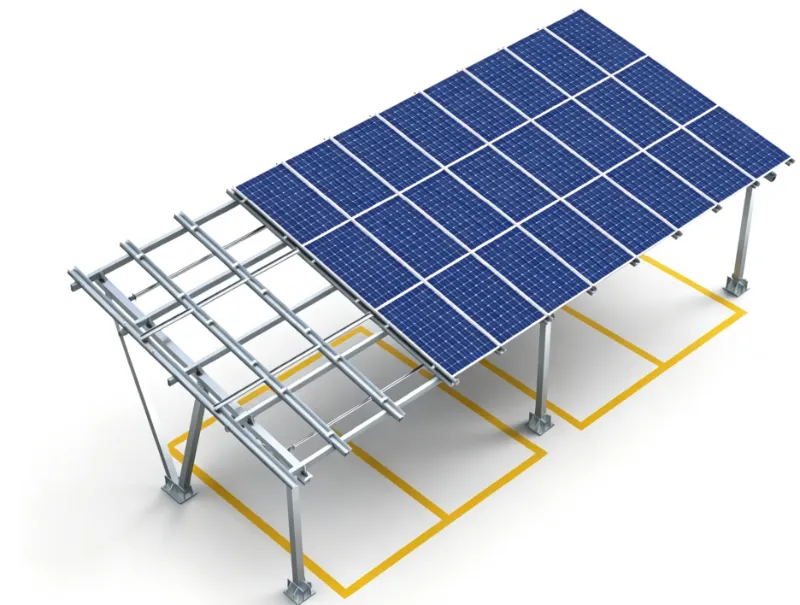

This Solar IV type Carport Mounting system from supplier Xiamen Honor Energy adopts a triangular diagonal‑brace mechanical design. Columns, braces, main beams and purlins are hot‑dip galvanized steel carport carbon steel, paired with 304 stainless steel fasteners to prevent galvanic corrosion. This PV carport structure delivers reliable outdoor performance.

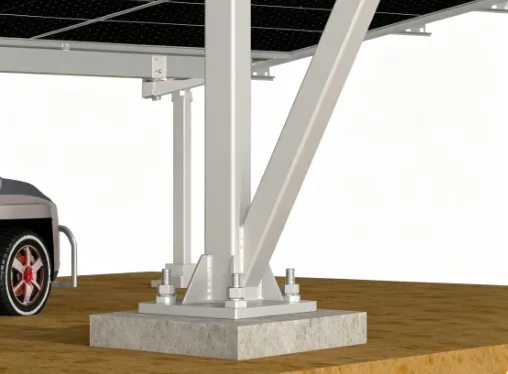

A concrete block foundation is standard; a ground anchor foundation is also available to fit different site soil conditions.

Tilt angle can be adjusted per project demand, compatible with most framed solar panels, and both landscape and portrait module mounting.

Modular bolt‑connected parts, no on‑site welding required, which saves plenty of site construction time.

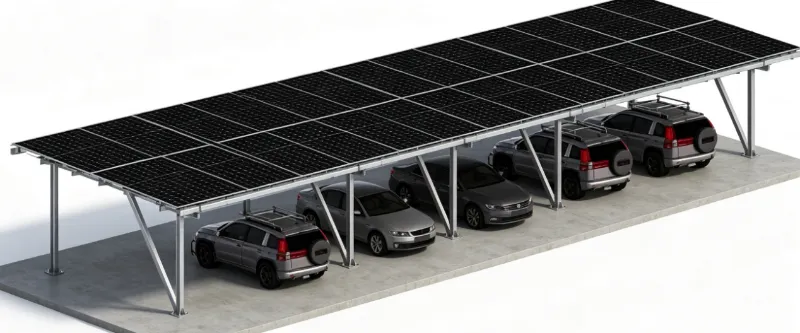

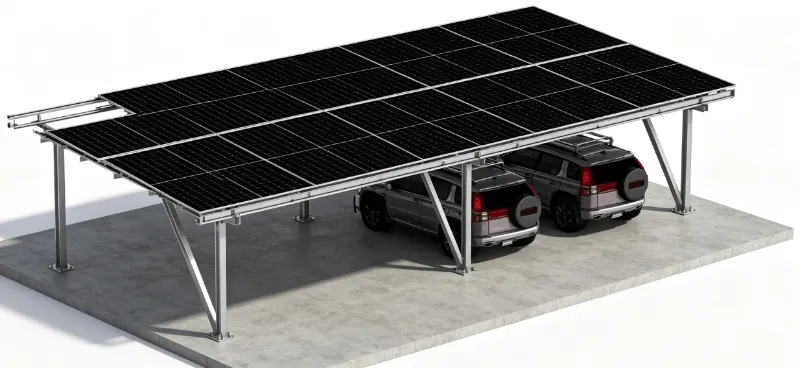

Multi‑bay extension is feasible. You can start from a simple 2‑car unit and expand to large‑scale commercial parking areas. Pre‑reserved space for EV charger retrofitting is optional to build a complete solar parking canopy.

Factory Pre‑assembly

We conduct pre‑assembly inspection for key components of the pv carport structure in‑house.

During production, main beams, diagonal braces, and connection joints are trial‑fitted. We double-check hole positions, gaps and overall dimension accuracy.

After full matching verification, we take them apart for packing. On‑site crews only need bolt connection, no extra cutting or drilling work. It lowers installation mistakes and speeds up your whole project progress.

Dependable Lead Time

Standard stock components can be shipped within 2‑3 days upon payment received.

For complete commercial solar carport project orders, typical lead time runs 2‑3 weeks based on project volume.

For large multi‑bay carport orders, a priority production schedule will be arranged. We keep you updated on production status, to match your site construction timeline.

Packing & Container Loading

We pack steel parts either on steel pallets or ISPM‑15 heat‑treated wooden pallets. Protective gaskets go between components to stop the galvanized surfaces from getting scratched during shipping.

All bolts and small hardware come in separate waterproof bags, and every pallet includes a complete packing list.

We pick the right pallet type based on your destination country’s rules. Our wooden pallets fully meet ISPM‑15 export phytosanitary requirements.

Our team works out the best loading layout to make the most of container space.Goods are firmly strapped to reduce shake and abrasion, ensuring safe arrival of the Solar IV type Carport Mounting system at destination port.

Advantages vs Competitors

The IV‑type triangular bracing structure brings better wind‑load performance, well

suited for coastal typhoon‑prone regions with lower deformation risk.

Full hot‑dip galvanized carbon steel with qualified zinc thickness, superior salt‑spray resistance, much longer outdoor service life compared with painted steel alternatives.

One‑stop supply: columns, braces, purlins and all fasteners are delivered together, no extra spare‑part sourcing needed from your side.

Flexible customization: parking bay quantity, clearance height, tilt angle and foundation options can be adjusted to meet local engineering standards, with engineer load calculation support.

Factory trial assembly reduces on‑site rework and cuts your site labor cost.

Specifications

Main Material: Q235B / Q355B

Parking Bays: Start from 2‑bay, multi‑bay expandable

Tilt Angle: 5‑15°, customizable

Foundation Option: Concrete block / ground screw

Module Orientation: Landscape / Portrait

Max Wind Load: Up to 45 m/s

Snow Load: 1.6 kN/㎡

Warranty： 10‑year product warranty, 25‑year design life

Application: Business park, factory site, commercial parking lot

Inspection Reports

Every batch of Solar IV type Carport Mounting system goes through strict factory inspection before shipment.

Available documents include a zinc‑coating thickness test, a salt‑spray test report, a steel material certificate, and dimension tolerance records.

Reports can be provided together with orders for overseas project review and tender use.

After‑sales Support

Complete construction drawings and installation manuals for the Solar IV type carport mounting system will be supplied.

Our engineers offer online technical guidance during project execution for on‑site installation questions.

For non‑artificial quality defects, we provide proper solutions following warranty terms.

Technical service is available for later‑stage modification and multi‑bay expansion of your carport system.
