Adjustable Solar Steel Ground Mount

Name: Adjustable Solar Steel Ground Mount

Brand:Honor Energy

Product Origin: Fujian, China

Material: Steel

Warranty: 12years

Duration: 25years

Shipping Port: Xiamen Port

Lead Time: 7-15 days

Max Wind Speed: 60m/s

Max Snow Load: 1.6kn/㎡

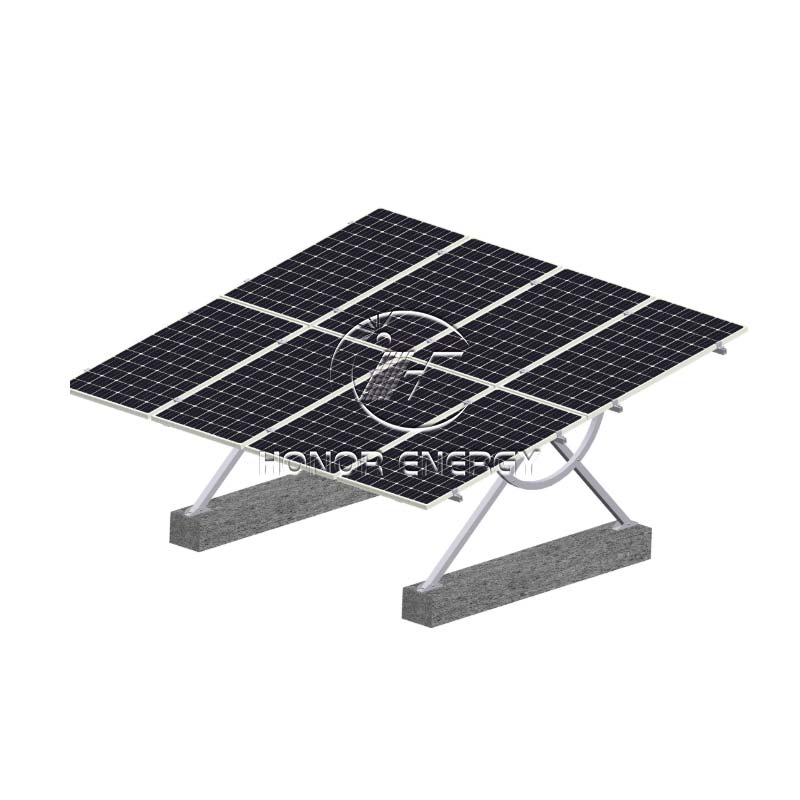

The tilt-adjustable carbon steel ground support is a ground support structure made primarily of carbon steel, with the key feature being its ability to flexibly adjust the installation angle.

Adjustable carbon steel solar Ground mounting system is primarily constructed from carbon steel, which inherently possesses excellent strength and load-bearing capacity, enabling it to stably support equipment installed on it, such as photovoltaic modules in common application scenarios.

As for the adjustable tilt design, this is one of its major advantages. When installing, techs can tweak the angle using the bracket’s adjustment parts, depending on things like how the sun hits the area or the local landscape. Like, places with different latitudes have the sun sitting at different heights—so they can set it just right. Tweaking the angle of the mounting bracket lets the solar panels soak up more sunlight, which means they make more electricity. That flexibility comes in handy—whether you’re putting them on flat ground or a sloped area, you can adjust the angle to fit just right.

Additionally, from the perspective of cost and practicality, carbon steel material is more cost-effective than aluminum material, making it suitable for large-scale deployment. Also, the way the bracket’s built is all about making installation easy. The parts connect simply and hold strong, so it doesn’t take as long to put together, and the whole job is less of a hassle.

These angle-adjustable carbon steel ground mounts are used a lot in things like solar setups and communications—anywhere you need gear mounted on the ground. It’s because they’re made of good material, you can tweak their angle easy, and they give a lot for the money. They really help keep equipment running steady and working well.

Why should you buy this product?

The angle can be tweaked to match how the light comes in. It’s carbon steel with a zinc layer, so it holds up well, doesn’t rust, and works great outdoors. Plus, setting it up is easy—saves you time and labor.

Sea and air freight options available, competitive logistics prices, customs clearance documents included, sturdy packaging, transparent pricing with no hidden costs.

Cheaper than stainless steel, stronger than aluminum alloy, more cost-effective for large-scale use, suitable for all climates, with after-sales service guaranteed.

How should we install this product?

1. First, mark out where the brackets need to go to figure out their exact spots.
2. Fasten the base down, using expansion bolts to lock it to the ground.

3. Put the main bracket together—connect the vertical poles and cross braces.
4.Slap on the angle adjuster and set it to whatever tilt you need.
5. Crank all the pieces down real tight and make sure nothing’s wobbly.
