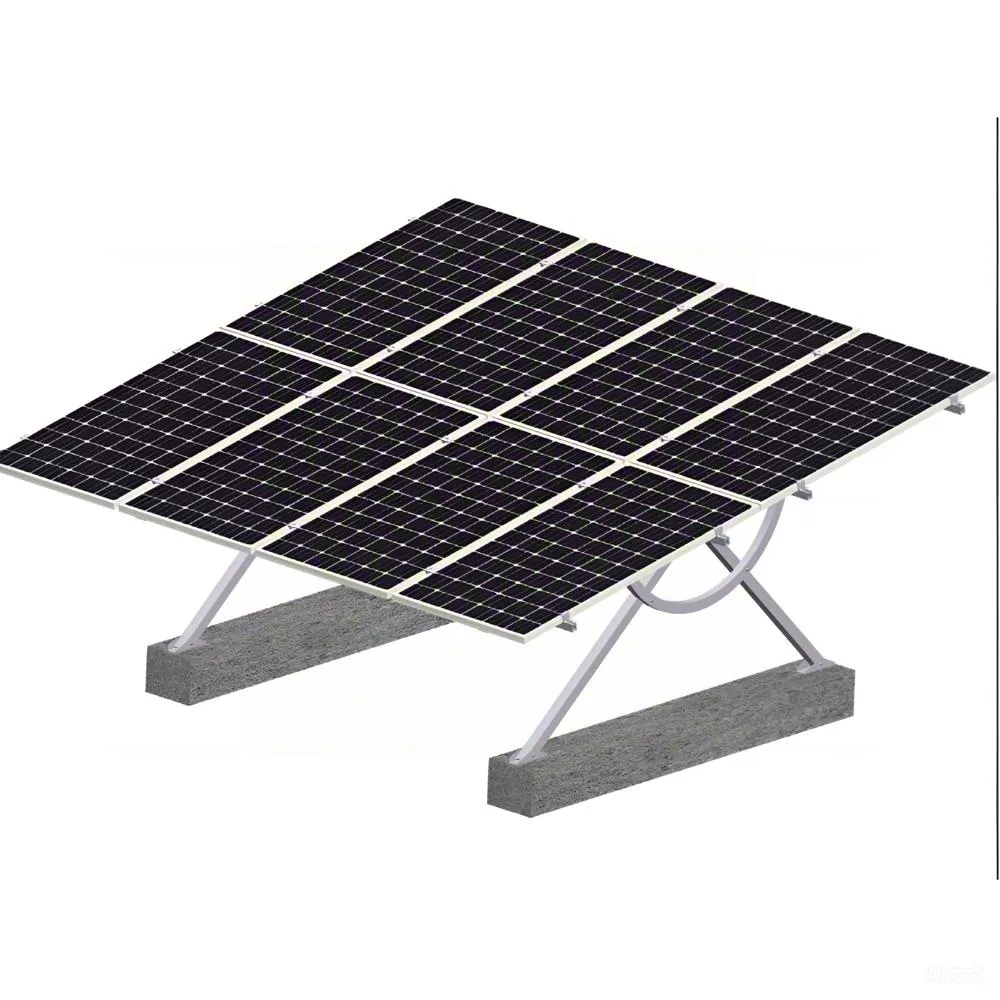

Easy-Operation Manual Tilt-Adjustable Carbon Steel Ground Mount

The Easy-Operation Manual Tilt-Adjustable Carbon Steel Ground Mount manufactured by the Xiamen Honor Energy system is primarily constructed from carbon steel, which inherently possesses excellent strength and load-bearing capacity, enabling it to stably support equipment installed on it, such as photovoltaic modules in common application scenarios.

The tilt-adjustable carbon steel ground support is a ground support structure made primarily of carbon steel, with the key feature being its ability to flexibly adjust the installation angle.

Specification

Suitable Application Environments

1. Concrete flat rooftops for commercial & industrial buildings

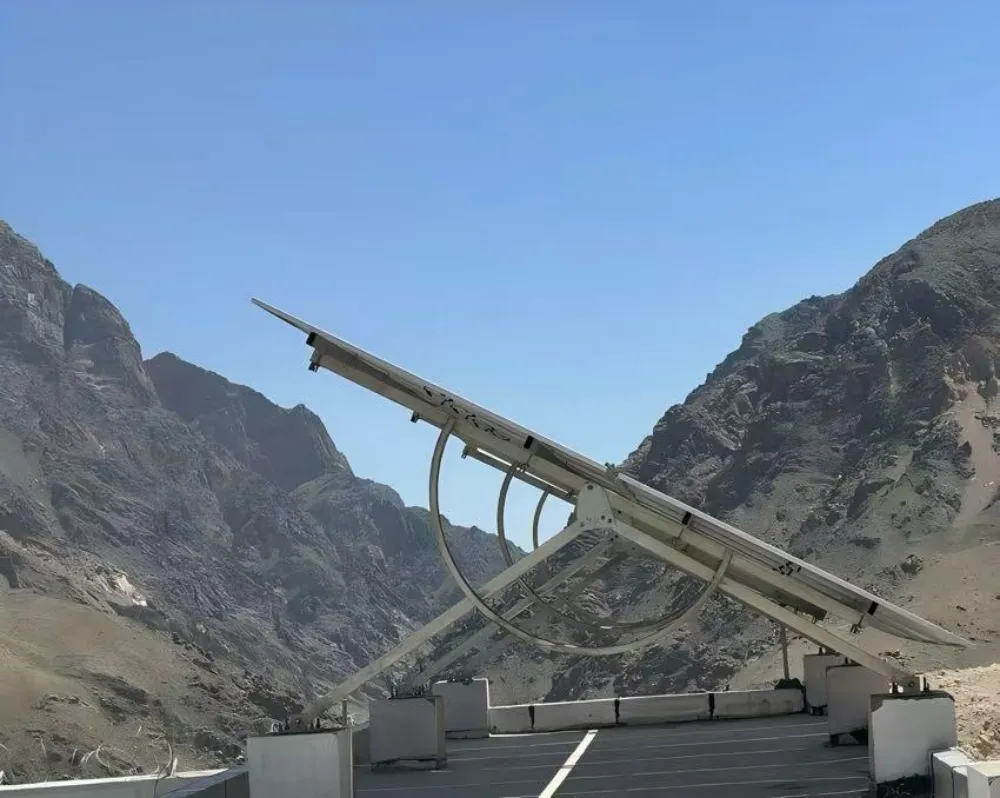

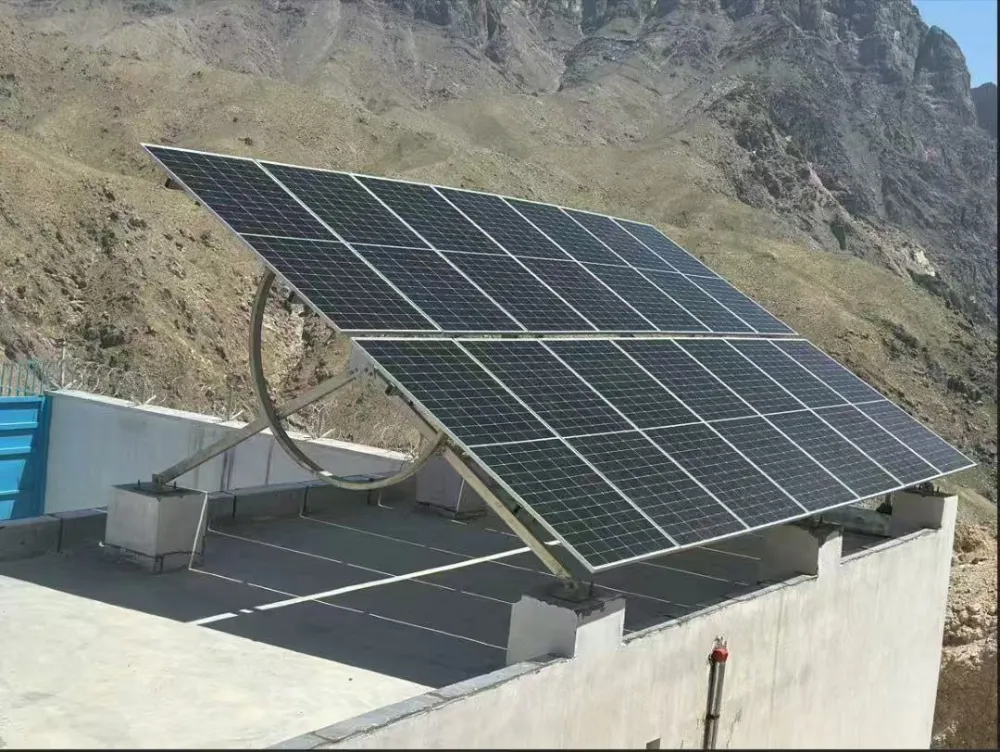

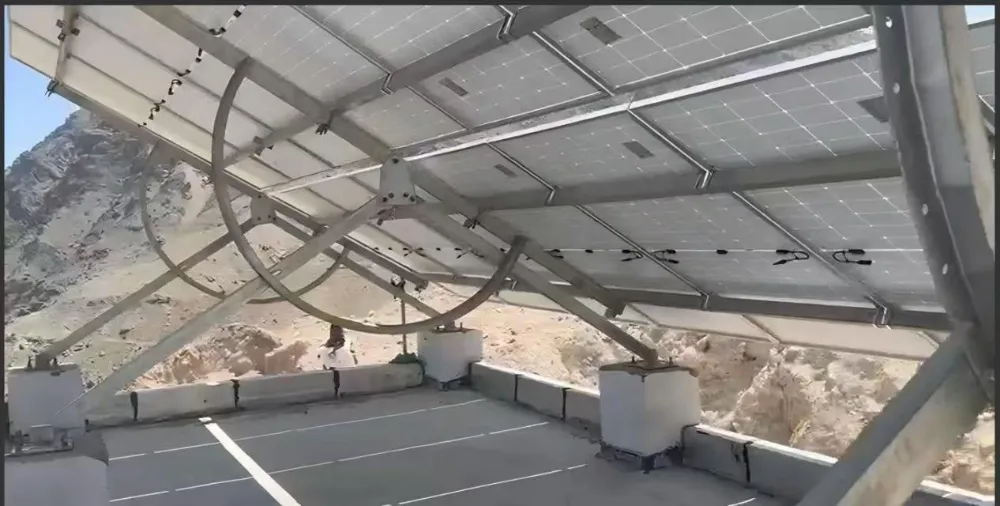

Drilling on the roof and damage to the waterproof layer are not permitted; chemical anchors cannot be adopted. The system relies on concrete counterweights for load-holding, and module tilt angle can be manually adjusted on-site via arc-shaped clamps.

2. Requiring on-site tilt fine-tuning according to local latitude

Angle-adjustable carbon steel ground mounts can be manually adjusted repeatedly on-site.

Bolts can be loosened later to reset the tilt angle for better power generation output.

Ideal for commercial, industrial, and distributed PV projects.

Not suitable for GW-scale utility-grade ground power stations, due to heavy manual adjustment workload.

3. Sites where existing structures shall not be damaged

Roofs or paved ground where the owner prohibits drilling that would damage waterproof layers or pavement.

The advantage

The angle-adjustable carbon steel ground mount's angle can be tweaked to match how the light comes in. It’s carbon steel with a zinc layer, so it holds up well, doesn’t rust, and works great outdoors. Plus, setting it up is easy—it saves you time and labor.

That we can design customized adjustable tilt supports according to the site size, quantity of solar panels, and local climate conditions provided by clients, and analyze solar energy utilization efficiency for customers.

Our design also accounts for the force needed for manual adjustment, ensuring users can adjust the tilt easily without extra effort.

The installation

1. First, mark out where the brackets need to go to figure out their exact spots.

2. Fasten the base down, using expansion bolts to lock it to the ground.

3. Put the main bracket together—connect the vertical poles and cross braces.

4. Slap on the angle adjuster and set it to whatever tilt you need. 5. Crank all the pieces down real tight and make sure nothing’s wobbly.

The certification

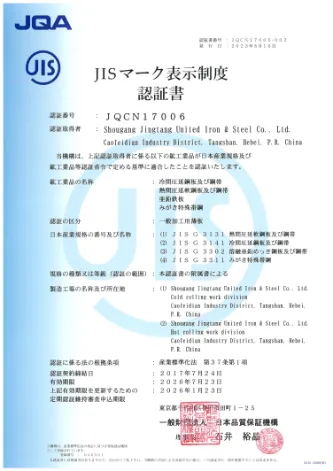

We hold TUV, CE, and JIS certificates. Full process quality control covers raw material to finished goods. Our technical and sales team provides one-stop support for global PV customers.

The packing

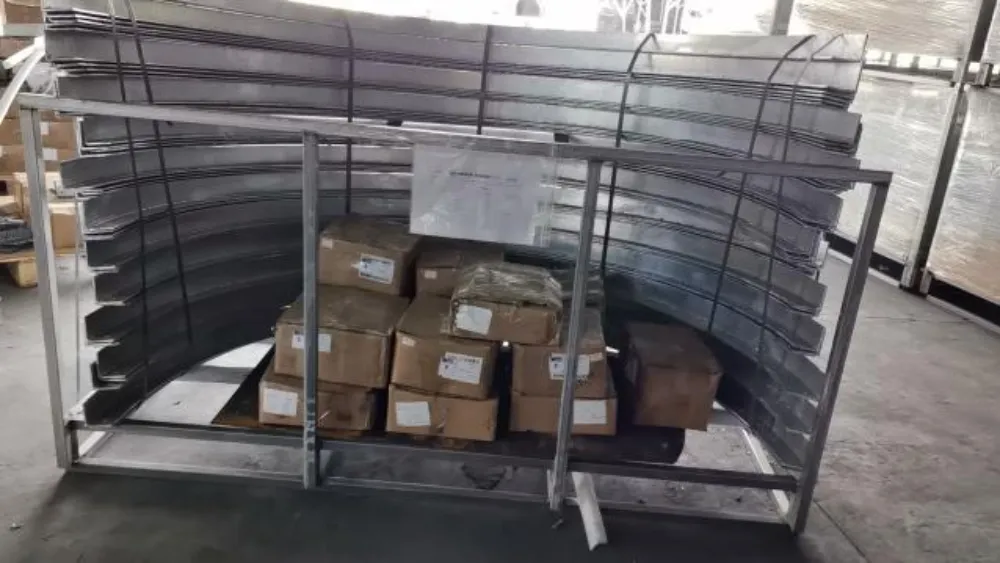

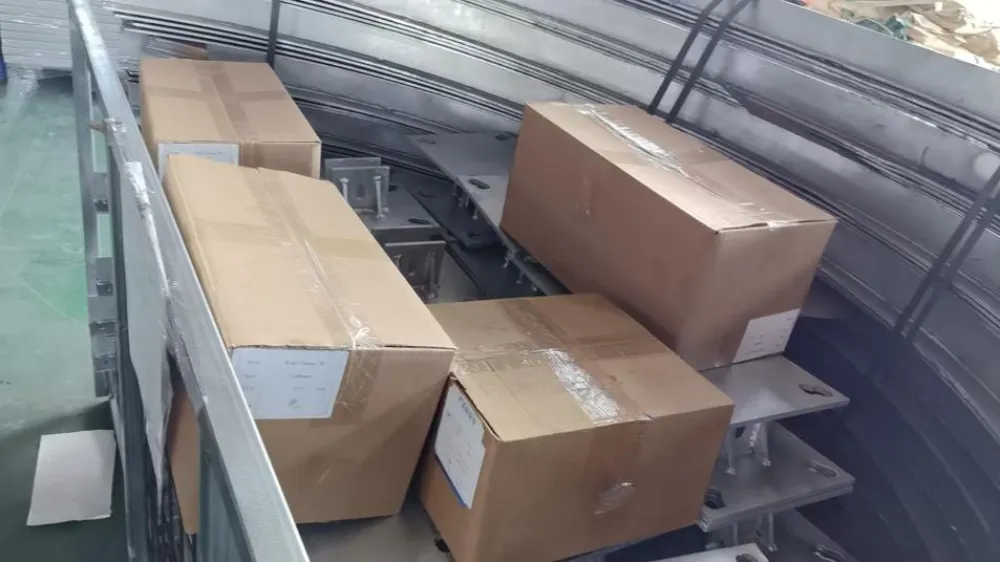

All our products are shipped with steel or wooden pallets, which protect the mounting structures against deformation for easy transportation. Small components are packed in cartons.

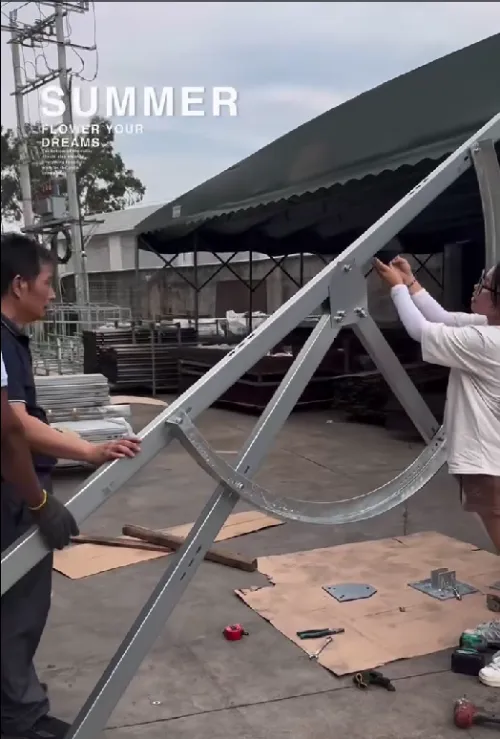

The factory pre-assembly and inspection

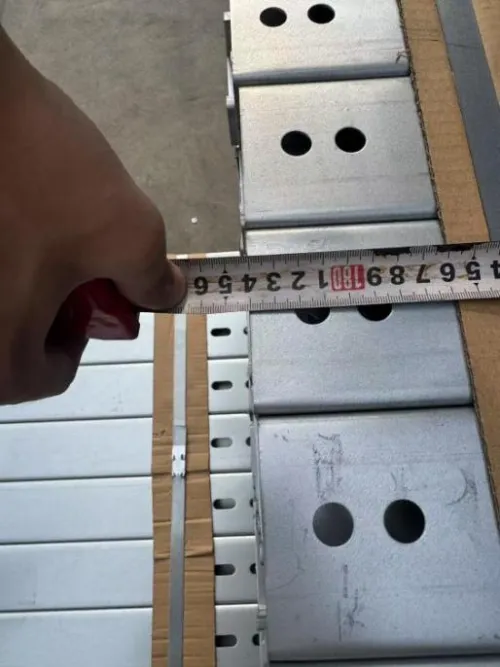

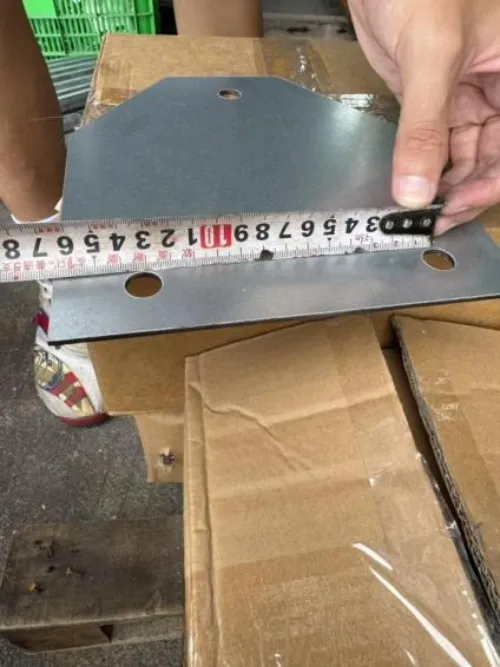

All products go through pre-assembly inspection prior to shipment. We verify key data including angle, dimension and thickness to guarantee the delivered items meet customer expectations.

FAQ

Q: What tilt angle can this bracket adjust to?

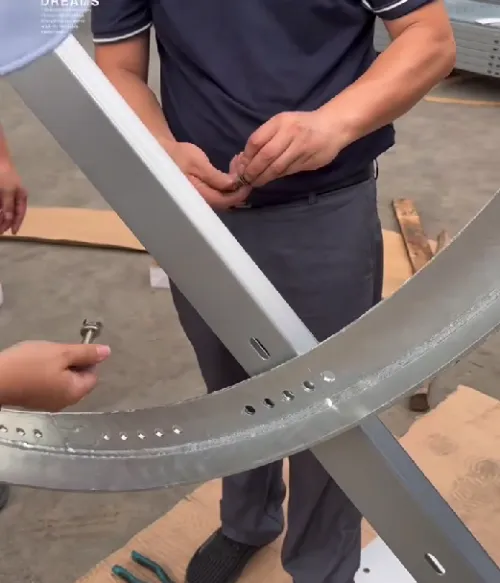

A: The standard adjustable tilt range is 10°-35°. Custom maximum angle up to 40° is available based on project latitude. The angle is manually locked via the semicircular arc-shaped slotted hole. Tighten the bolts after angle setting; no extra accessories are required.

Q: Ballasted or penetration-type mounting?

A: This is a ballasted mounting system, fixed by bottom concrete counterweights. No roof drilling required, and the roof waterproof layer will not be damaged. Drilled installation solution is optional for high wind load projects.

Q: What are the wind load and snow load capacities?

A: Standard design wind load: 60 m/s; snow load: 1.6 kN/m².

Q: Can it be installed both on flat rooftops and on the ground?

A: It is primarily designed for concrete flat rooftops. It can also be used on hardened flat ground. Direct installation on soft soil is not recommended; concrete footings are required for ground projects.

Q: Is it suitable for coastal salt fog areas?

A: Standard aluminum profiles resist normal humid conditions. A full SS304 bolt kit is recommended for sites within 5 km from the coastline to extend service life.

Q: How difficult is the installation? What tools are needed?

A: Modular pre-assembled design. Only basic hand tools are required, such as spanners and socket wrenches. Detailed installation drawings are supplied. No special heavy-duty equipment is necessary.

Q: Can the tilt angle be adjusted after installation?

A: Yes. Loosen the locking bolts on the arc hinge, reset to your target angle, then retighten all bolts.

Q: What is the warranty period?

 A: 12-year warranty for aluminum structural parts. Extended warranty options are negotiable.

Q: What is the production lead time?

A: Normally 7:15 working days after deposit received, subject to total order quantity.
