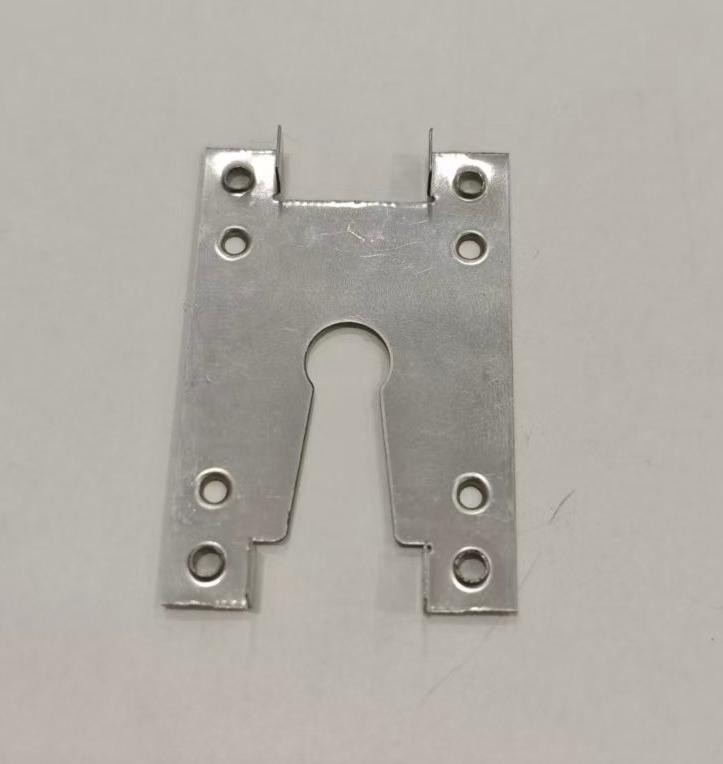

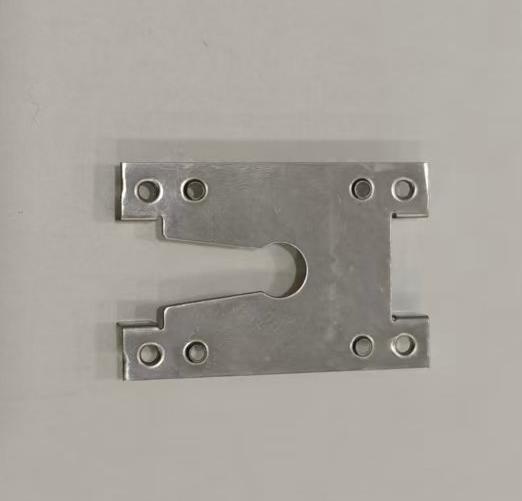

H type Solar Earting Clip

H type Solar Earthing Clip is made of high quality stainless steel SUS304. It mostly used with solar mid clamp so it’s quantity is equal to mid clamp. Its function is to form a closed-loop circuit for the entire system, preventing damage to the photovoltaic panels caused by lightning strikes or static electricity.

How it works?

H type Solar grounding Clips has unique shape on its holes, each circular hole features raised edges that can pierce both the coating on the track surface and the coating on the panel surface. This allows electrical contact with the conductive metal inside the track and panel, achieving an anti-electric shock effect.

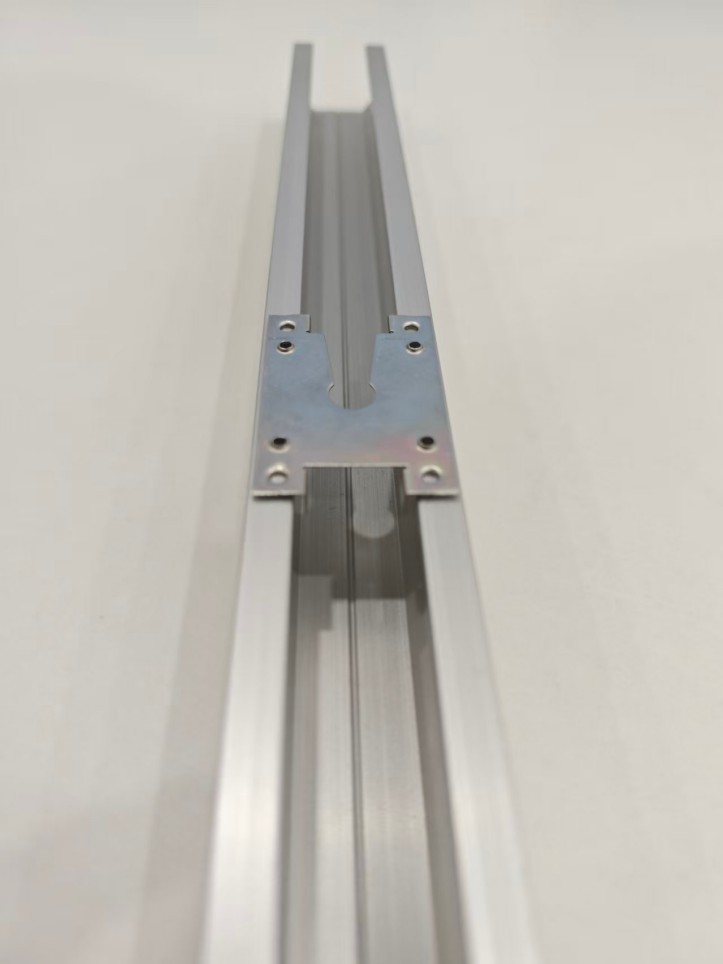

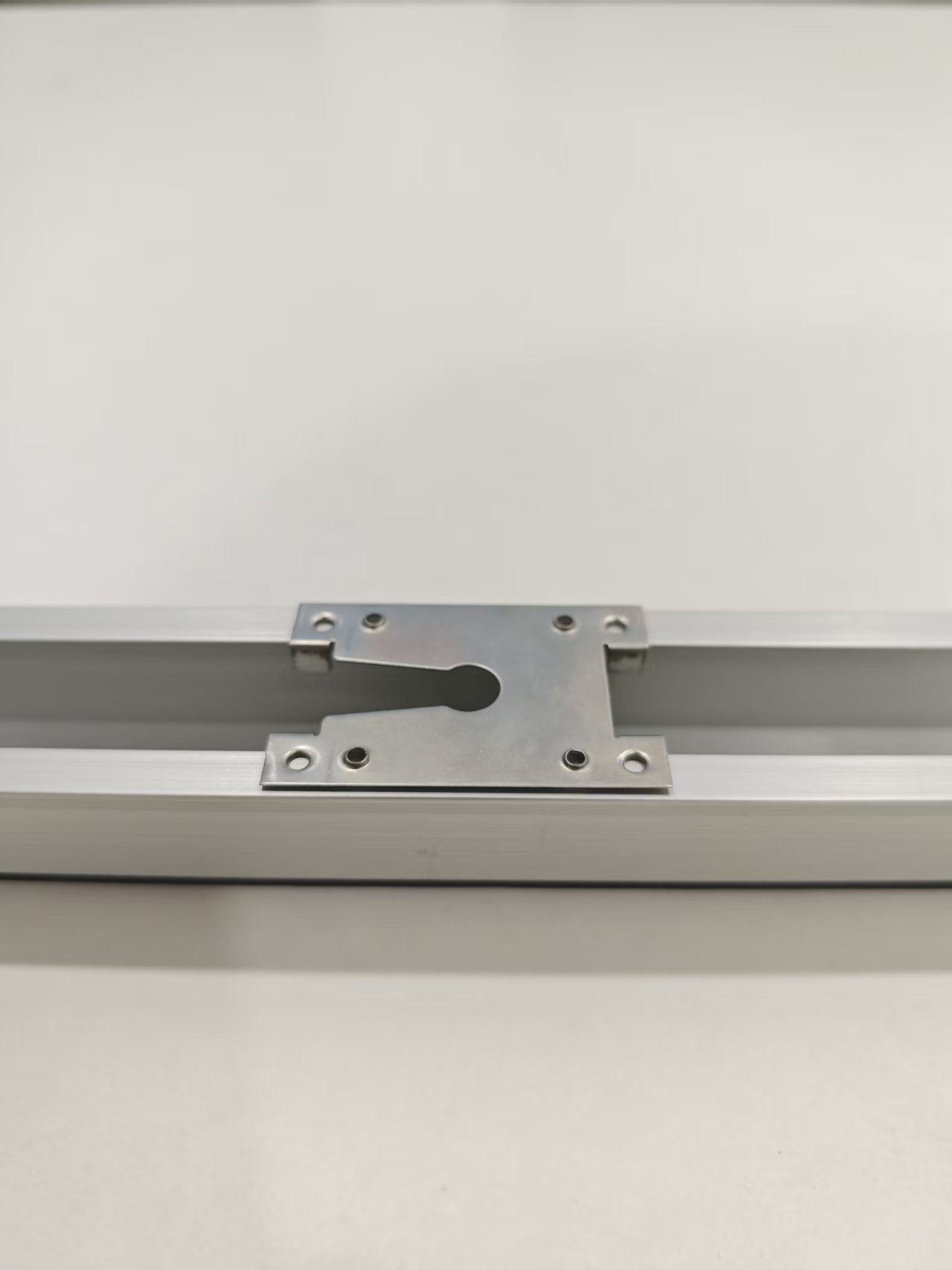

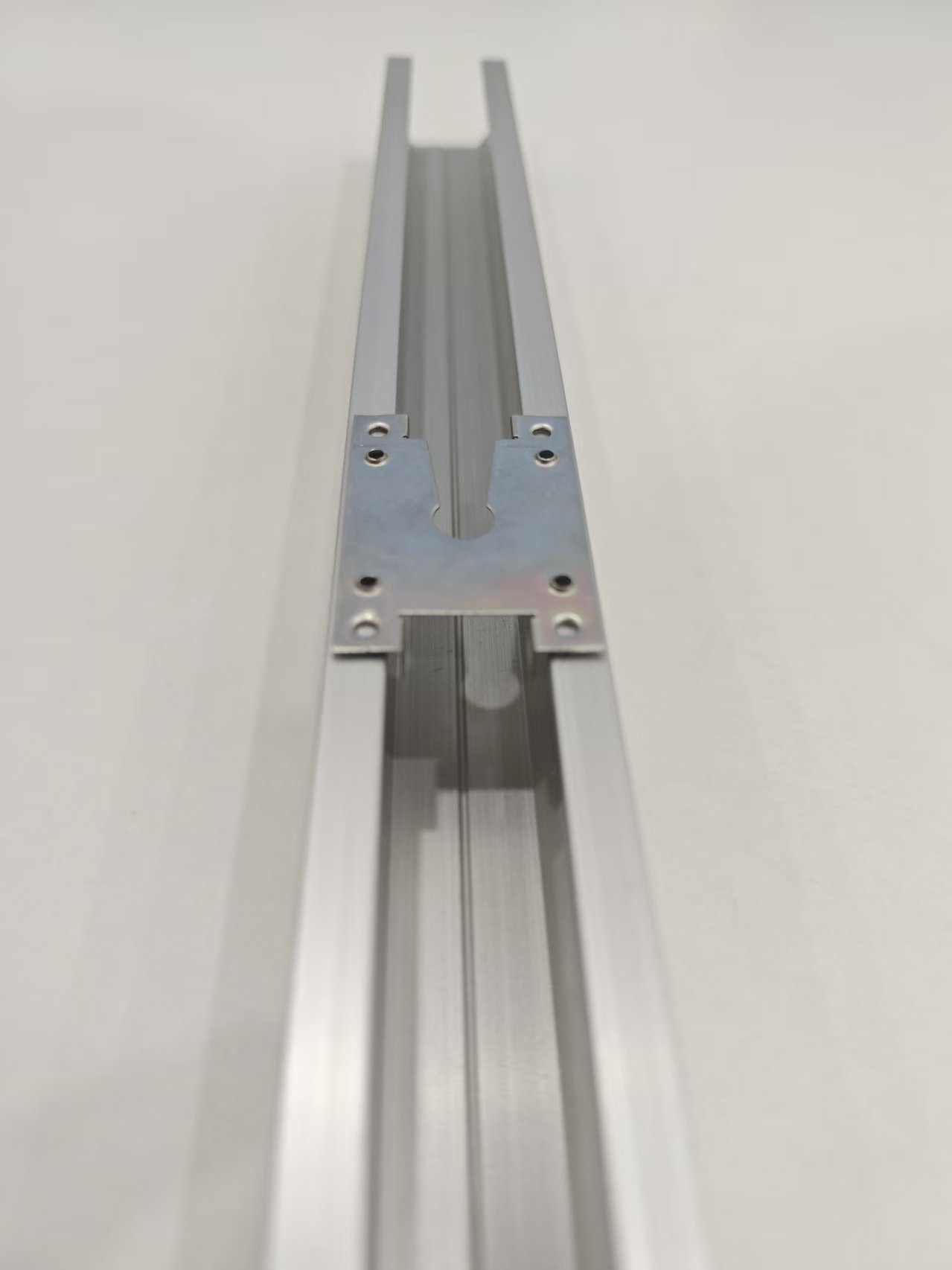

Installation Process

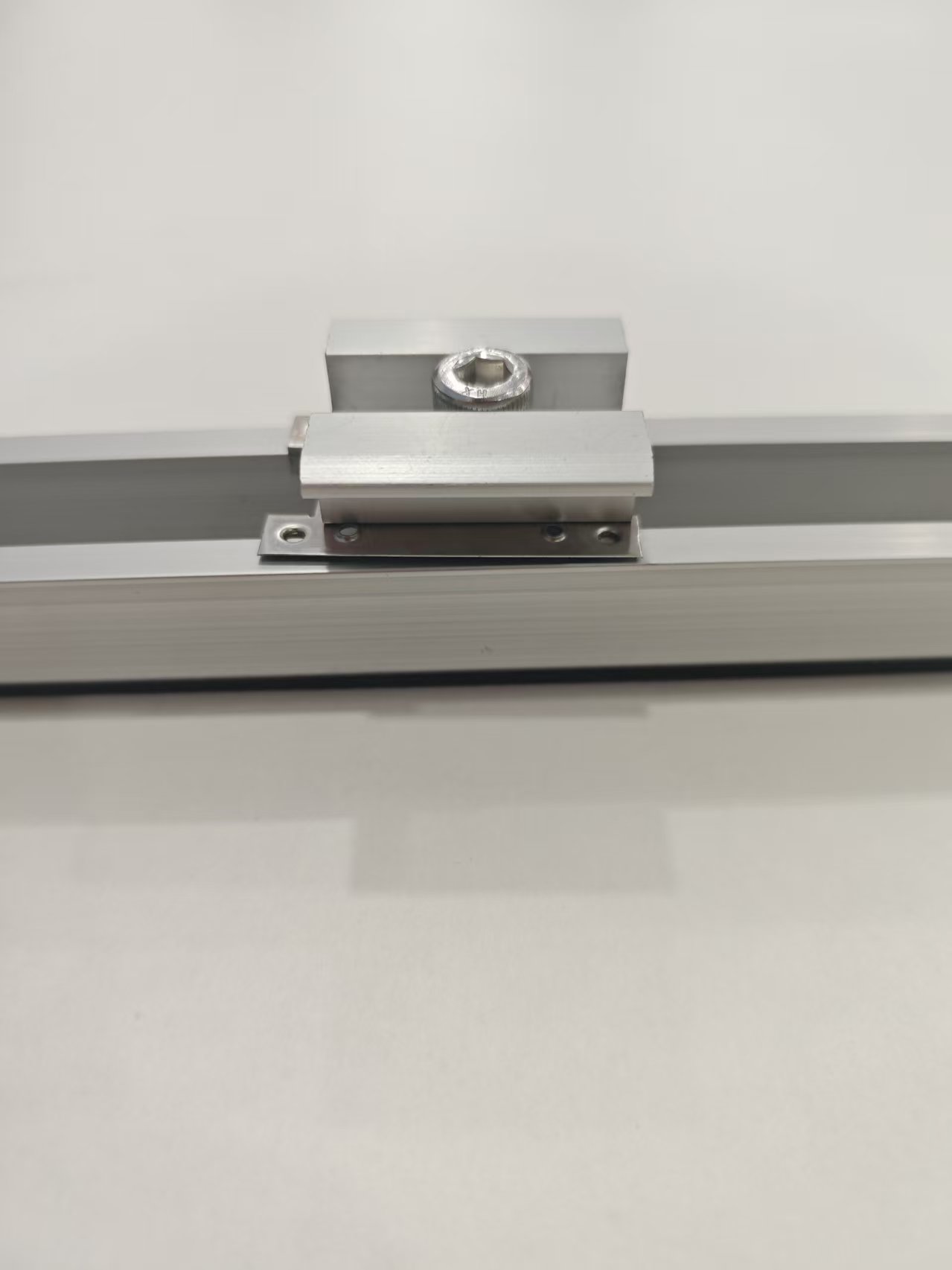

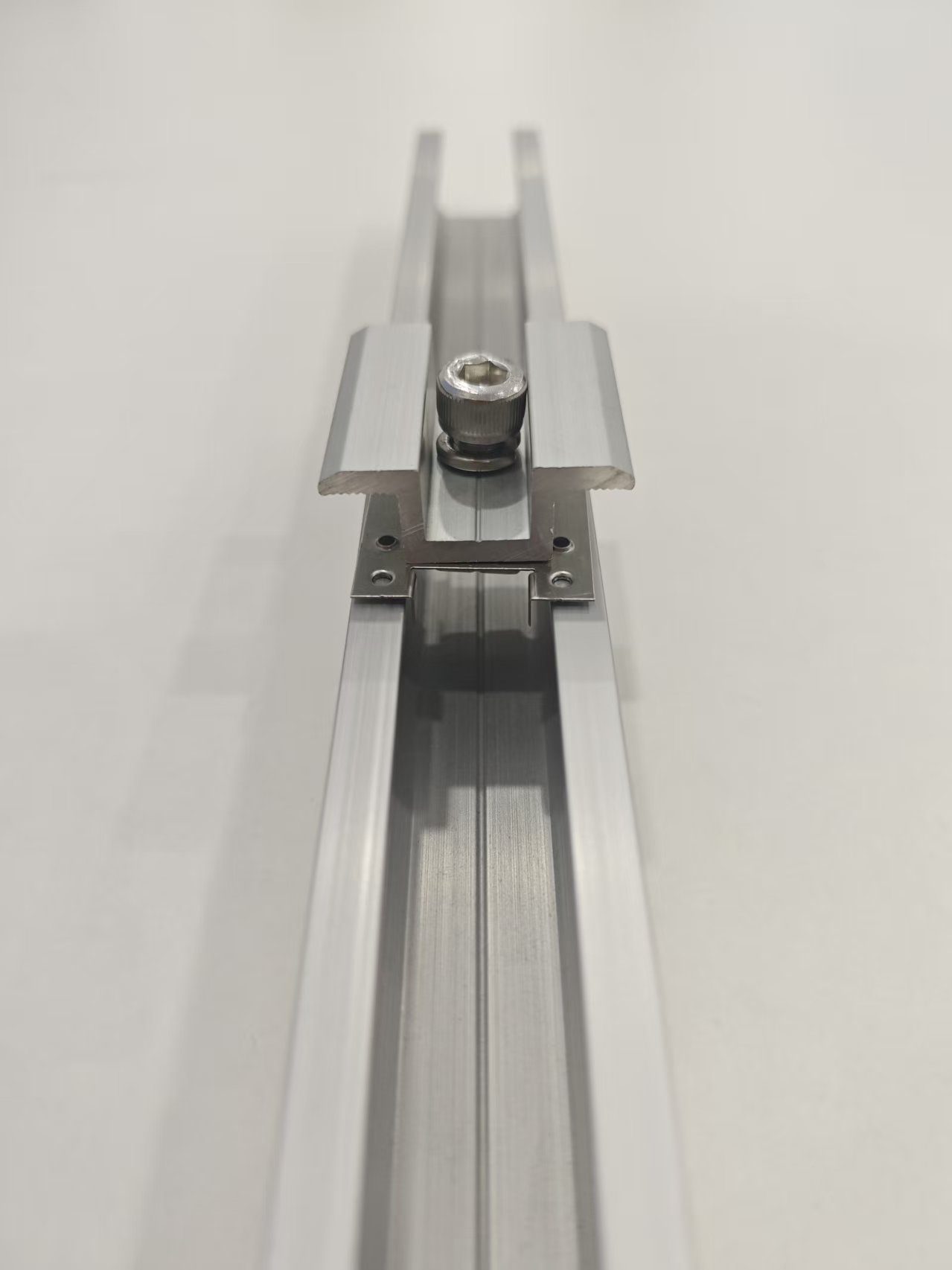

Installation of H type Solar Earthing Washer is extremely simple and easy to get started with. Firstly, Take out a complete set of mid clamp and screw the bolt into washer. Secondly, put the clamp into rail and ensure the washer on its position. Finally tighten the bolt and complete the installation.

Service Life

H type Solar Grounding Washer has long service life because of its material and surface treatment.It use stainless steel so it could be placed in high salinity area.And it arrange from 304 to 316 so that it could be suit for every place.
