No Drill Solar end clamp

The no drill solar end clamp operates by combining the clamp and bolts to firmly secure the solar panel edges to the support rails.This setup effectively balances the weight of the panels themselves and handles external forces like wind and snow loads.

This innovative design features a unique structural integration that seamlessly locks onto the lip of the carbon steel rail, forming a secure, closed mechanical assembly. The connection interface is engineered with an adaptive opening, which accommodates rails of varying thicknesses without compromising stability—a key mechanical advantage of this system. Furthermore, solar end clamp without drilling’s pre-tapped threaded holes align precisely with standard bolts, removing any requirement for extra hardware and streamlining the installation process significantly.

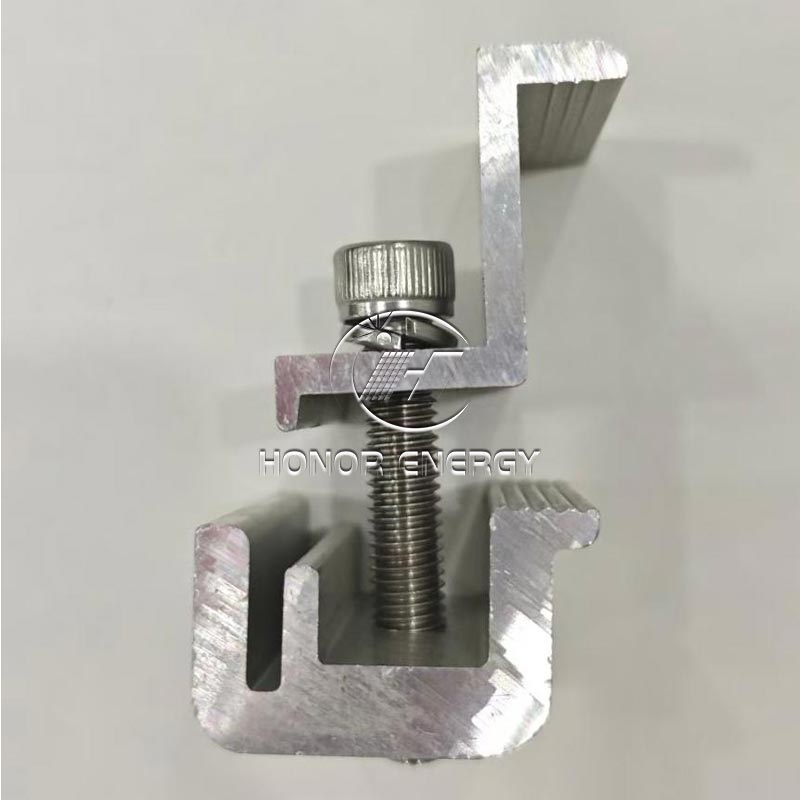

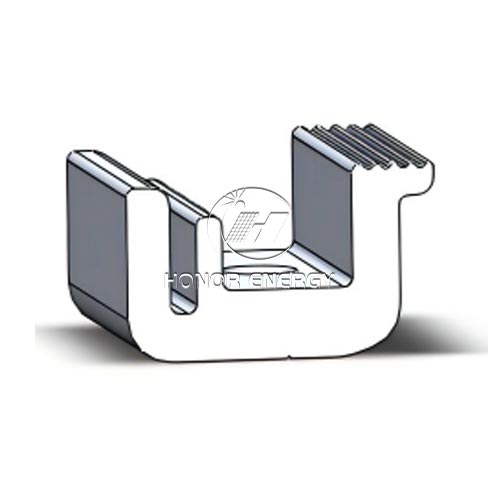

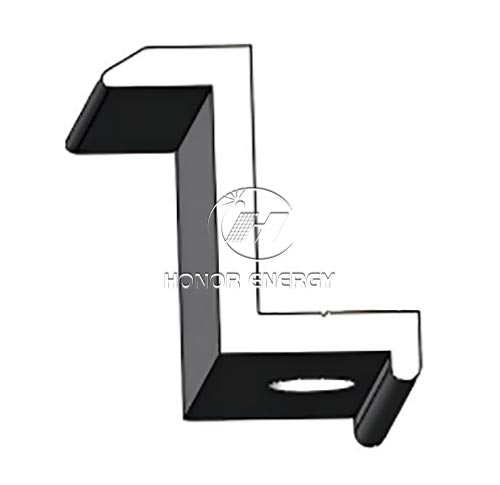

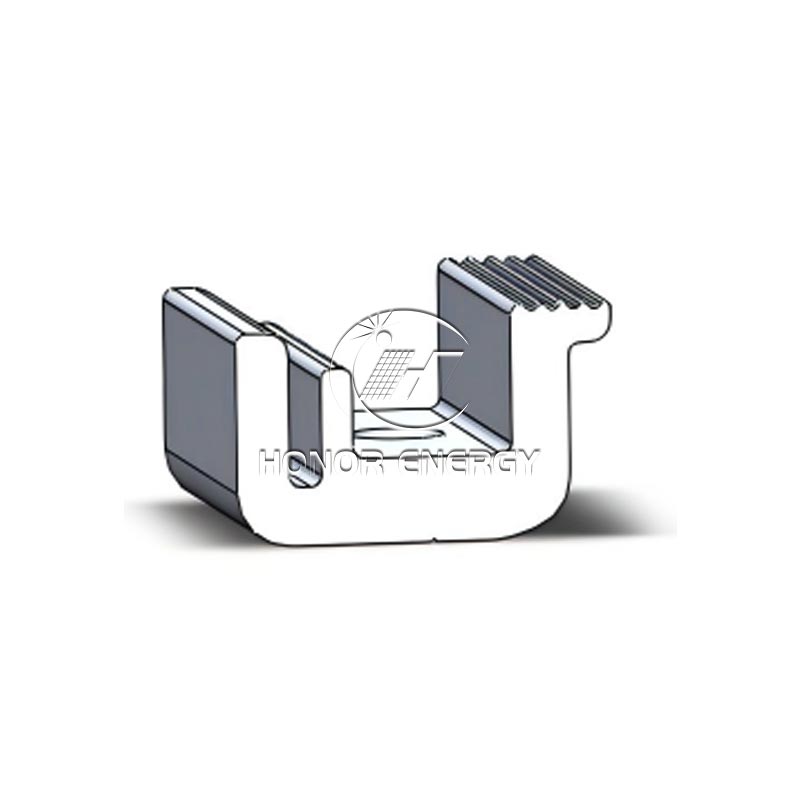

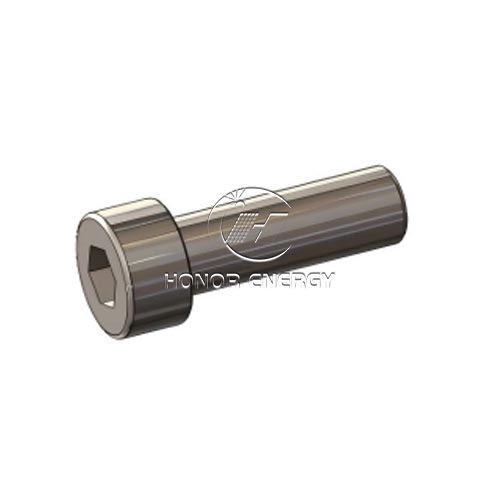

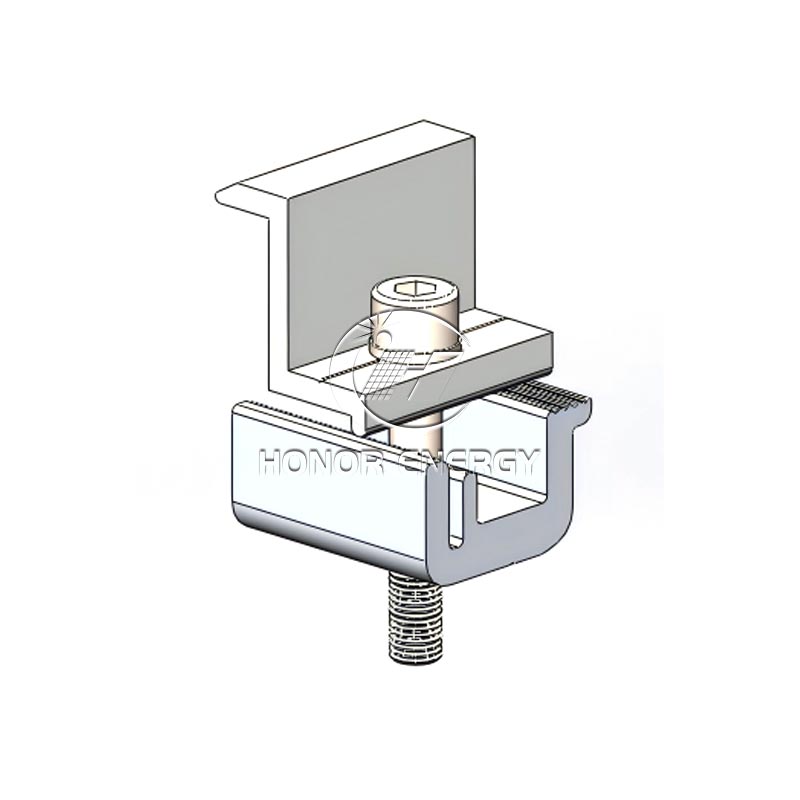

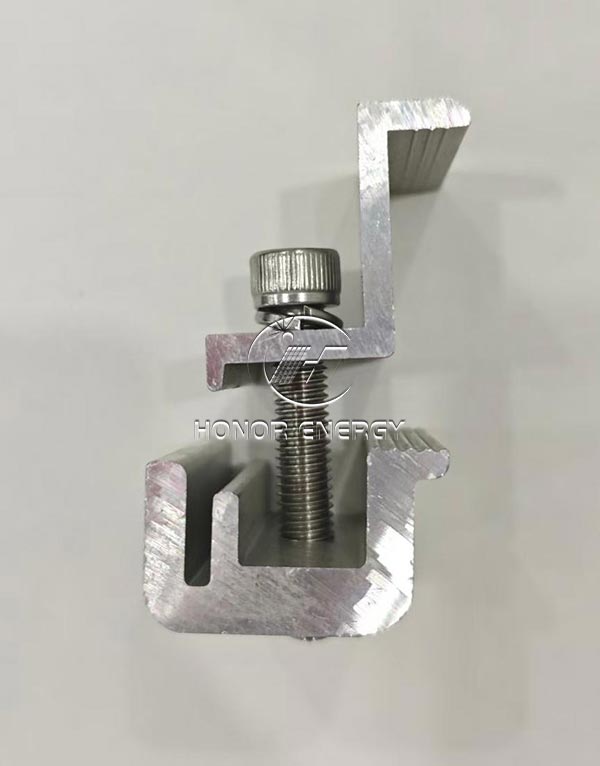

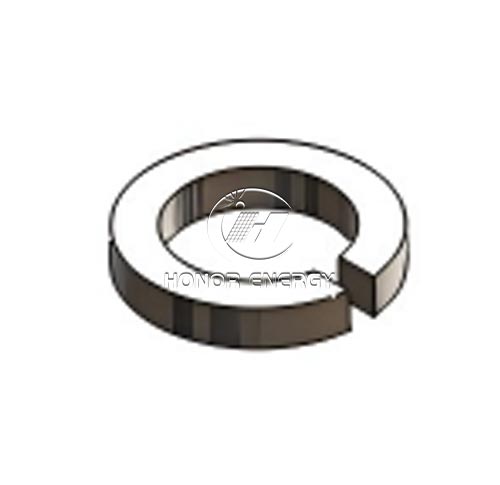

A complete end clamp without drilling assembly typically consists of four components: the end clamp plate, the locking block, the bolt, and the spring washer. These four parts alone are sufficient to securely fasten the panel to the track. The minimal number of components also makes installation more convenient. We typically deliver this entire unit ready-to-use, so workers only need to place it correctly and secure the bolt during setup.

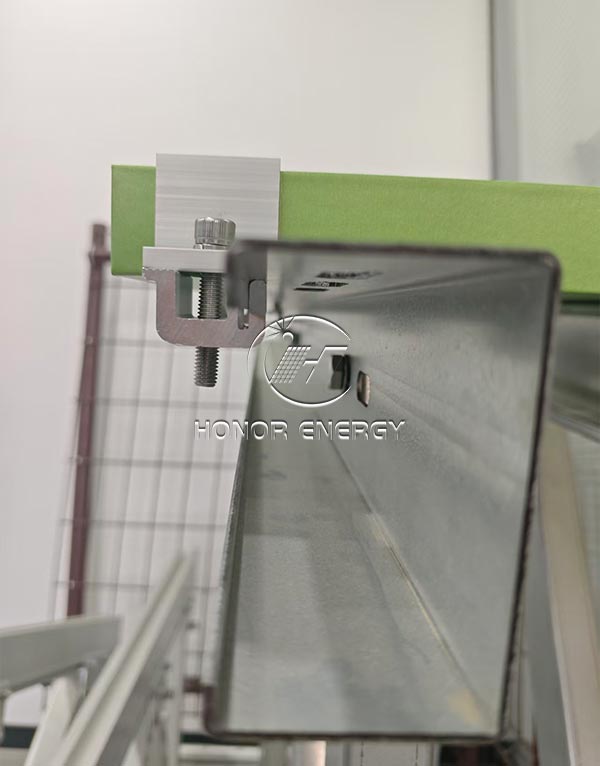

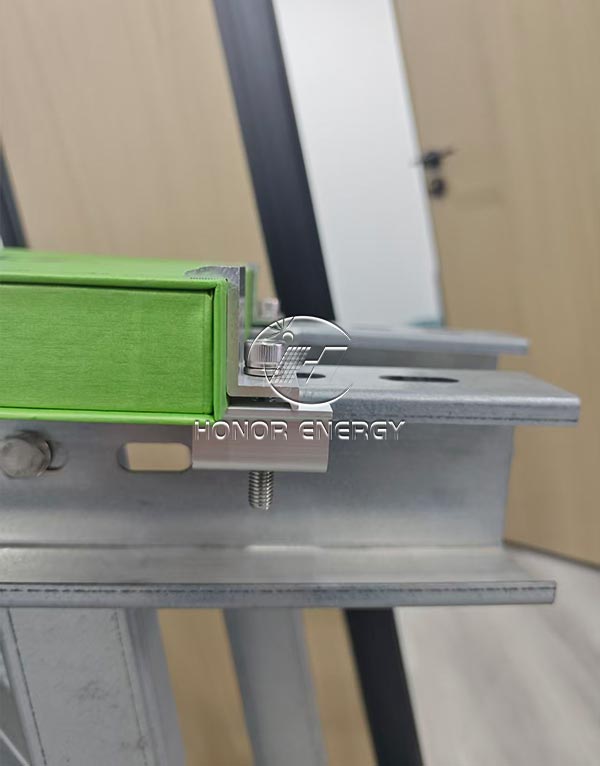

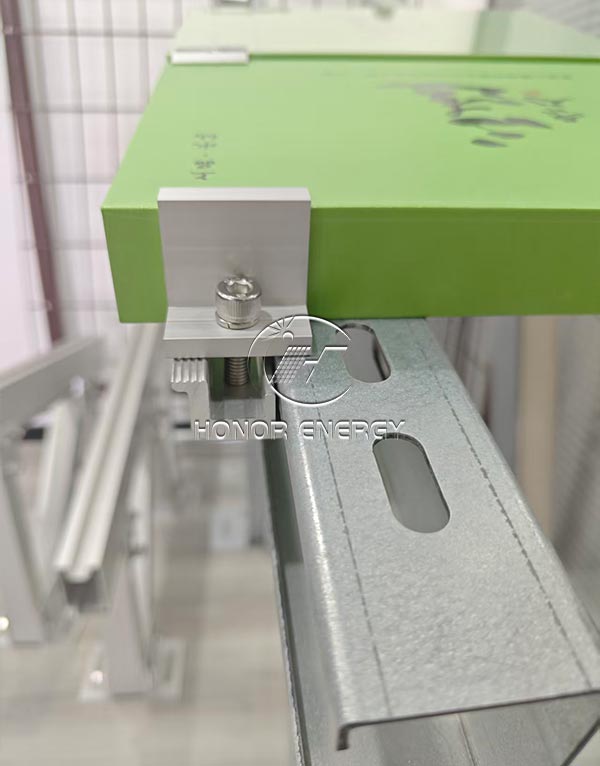

This method smartly supports the rail without direct alteration.No drill end clamp attaches solely to the flange of the rail, preventing any penetration into the rail core during end clamp use. This protects the rail's original toughness and supports flexible installation. The layout enables easy readjustment, eliminating the need for pinpoint screw alignment. If the first position isn't exact, the piece can be shifted into place without taking anything apart or making fixes.

While no drill solar panel end clamp may not look typical, this end clamp setup is very stable. Its built-in fixed panel side and the panel work together like interlocking pieces, sharing the load—each one supports and is supported by the other at the same time. Below, a clamping mechanism grips the track tightly, ensuring the entire assembly is securely locked together from panel to rail.
