Solar Mid Clamp

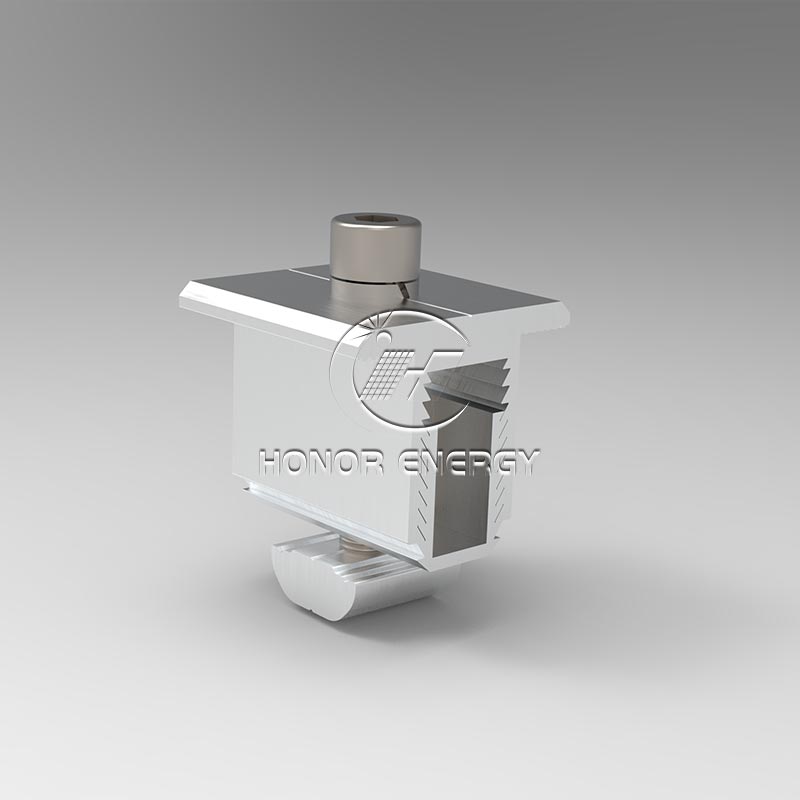

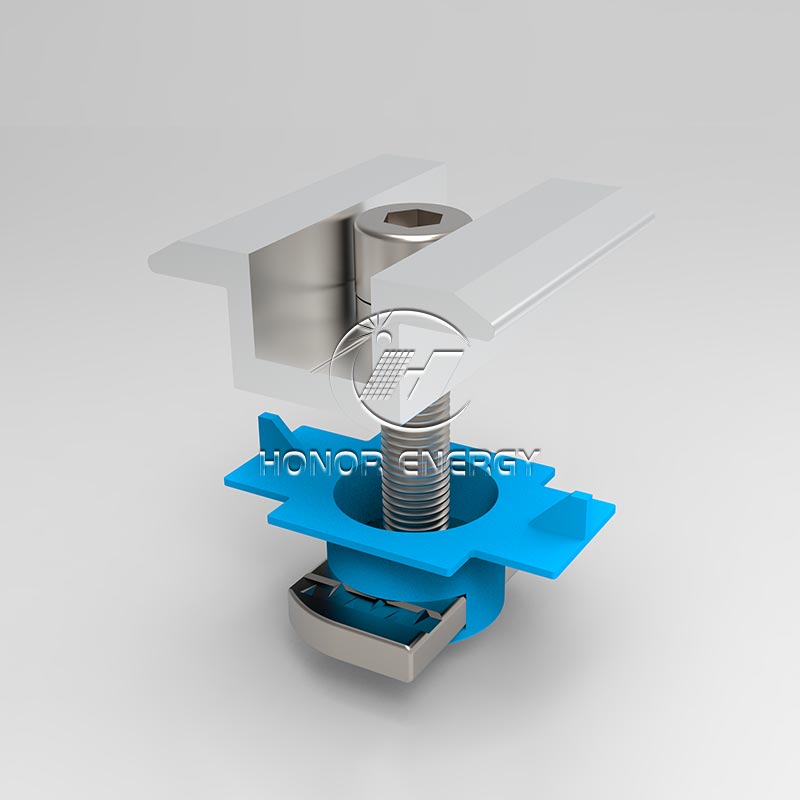

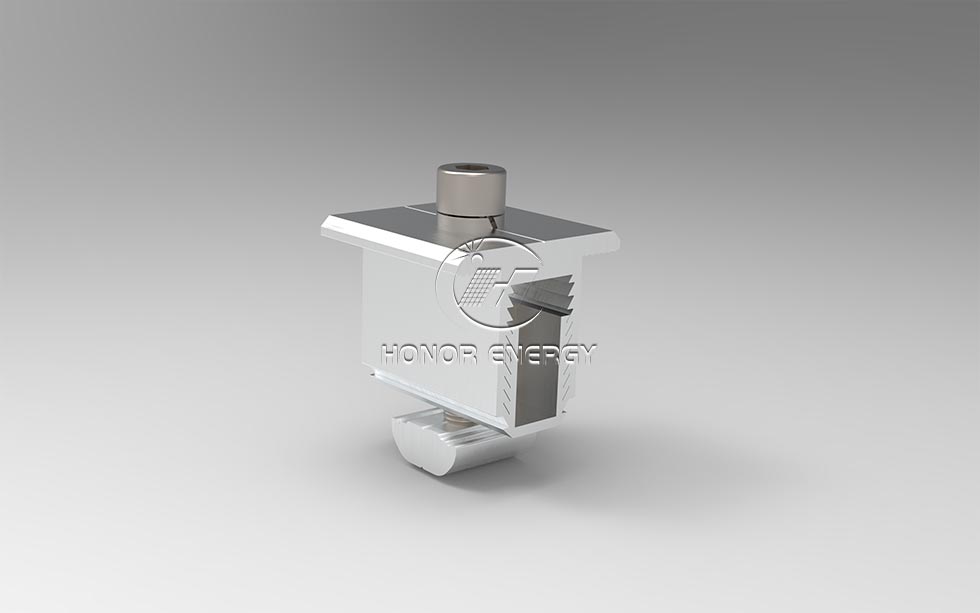

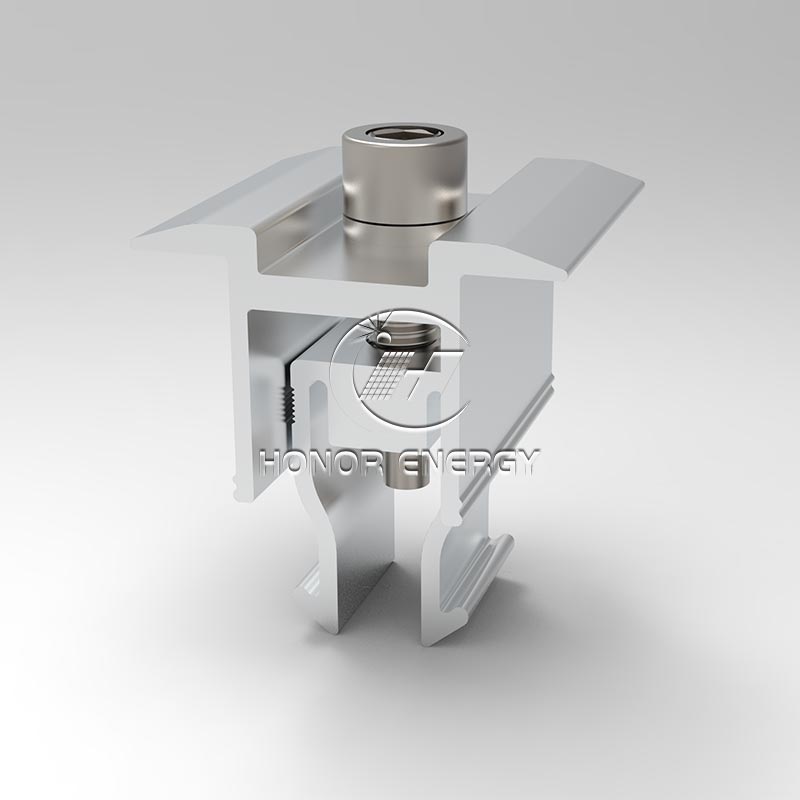

Honor Energy is a manufacturer of solar mid clamp from China, which is a crucial hardware component in solar photovoltaic installation systems. It is mainly used to firmly connect two adjacent solar panels and fix them on the rails of photovoltaic brackets. In the entire solar photovoltaic system, although it is small in size, it plays an indispensable role in the system's stability, safety and power generation efficiency.
Stable connection: The solar mid clamp is precisely installed in the middle of the sides of two adjacent solar panels. Through the fastening bolts or the built-in clamping structure, the two solar panels are tightly connected together, preventing them from relative displacement due to external forces such as wind and vibration during daily use. This greatly enhances the structural stability of the entire photovoltaic array.
Maintaining spacing: While connecting the solar panels, the solar panel mid clamps can ensure that there is a specific and uniform spacing between the two panels. This spacing is of vital importance as it provides a good ventilation and heat dissipation space for the solar panels, effectively preventing the panels from operating at excessively high temperatures due to heat accumulation, which in turn could affect the power generation efficiency. Studies show that a reasonable ventilation spacing can lower the operating temperature of solar panels and increase the power generation efficiency by approximately 5% to 10%.
Diverse adaptability: To meet the installation requirements of solar panels of different specifications, middle clamps come in a rich variety of sizes and models. Whether it is the common 30mm, 35mm, 40mm, 45mm or 50mm thickness solar panels, suitable medium-pressure clamps can be found. Installers can flexibly choose according to the actual specifications of the solar panels used, greatly improving the convenience and flexibility of installation.
| Classification | Concrete type | Core feature | Applicable scenarios |
| By functional type | Plastic wing medium pressure | The classic metal clamping arm is fastened with bolts, ensuring stable load-bearing and high cost performance | Thin components, easily worn frame items |
| Ordinary mid clamp | The classic metal clamping arm is fastened with bolts, ensuring stable load-bearing and high cost performance | Conventional ground-mounted power stations and large-scale rooftop projects | |
| Rapid mid clamp | The quick-install snap-on design eliminates the need for complex tools and boosts efficiency by over 30% | Projects with tight schedules and large-scale component laying | |
| Adjustable mid clamp | The bolt adjustment is adapted to components of multiple thicknesses, flexibly responding to specification differences. | Multi-specification photovoltaic module mixed installation project (suitable for modules with thickness differences ranging from 20 to 55mm) | |
| Solid mid clamp | High-intensity clamping; Weather-resistant and durable Easy to install | Fix solar energy cables and bracket connectors to ensure long-term stability outdoors | |
| Surface color | Silver mid clamp | Metallic original color, anti-corrosion with oxide film, mature technology and moderate cost | Photovoltaic power stations on industrial plant rooftops and wasteland |
| Black mid clamp | Black appearance, stronger weather resistance, and easy to blend with dark environments | Residential roof, BIPV building integration project |
advantage
1.All-type adaptation, precisely matching the needs of different scenarios
2.High weather-resistant material, 15 years of anti-corrosion and resistance to extreme environments
3.Quick-installation scratch-resistant design saves labor and ensures the safety of components
4.Available in silver and black, both appearance and compliance are guaranteed
5.12-year warranty + full technical support, worry-free after-sales service
Installation Instructions
Before installation
Verify that the model of the solar middle clamp matches the thickness of the component (30-55mm), and check that the accessories are undamaged.
Clean the contact surfaces of the component frame and the guide rail to remove oil stains and impurities.
Installation procedure
Positioning: Center the clamp body between the component frame and the guide rail, aligning the edges.
Pre-fixing: Manually screw in the bolts until light force is applied, and adjust the components to be flat without deviation.
Tightening: Use a torque wrench to tighten according to the standard (8-12N · m for aluminum alloy, 10-15N · m for stainless steel), ensuring a tight fit without any looseness.
Special Edition Note
Rapid end clamp: Push it into the rail slot and press the latch until it locks with a "click".
Plastic wing end clamp: Ensure that the plastic flange is completely in line with the edge of the component without lifting.
