Solar End Clamp

Fixed components: Through the coordination of the clamp body and bolts, the end of the photovoltaic modules are firmly locked onto the guide rails of the support, balancing the self-weight of the modules and external loads (such as wind and snow, wind pressure).

Buffering protection: Some end clamps are equipped with rubber or silicone gaskets inside, which can reduce the direct friction between the component frame and the metal clamp body, prevent the frame from being scratched, and at the same time alleviate the thermal expansion and contraction stress caused by temperature changes.

Adaptation and adjustment: Different specifications of solar panel end clamps can be adapted to photovoltaic modules of different thicknesses (usually 20-50mm) and different frame types (such as aluminum alloy, fiberglass reinforced plastic), meeting diverse installation requirements.

End rail clamp is widely used in scenarios such as ground-mounted photovoltaic power stations, rooftop distributed photovoltaic systems, and photovoltaic curtain walls. It is particularly suitable for flat-laid or inclined installation structures where the side of the components needs to be fixed. It is an indispensable auxiliary fixing component in photovoltaic support systems.

End clamp is divided into four types:

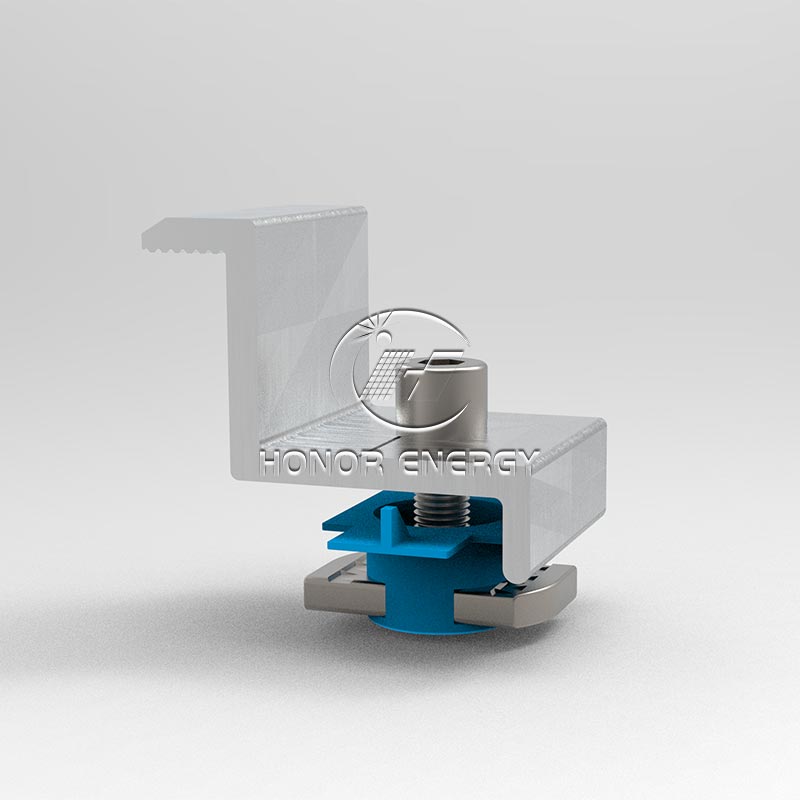

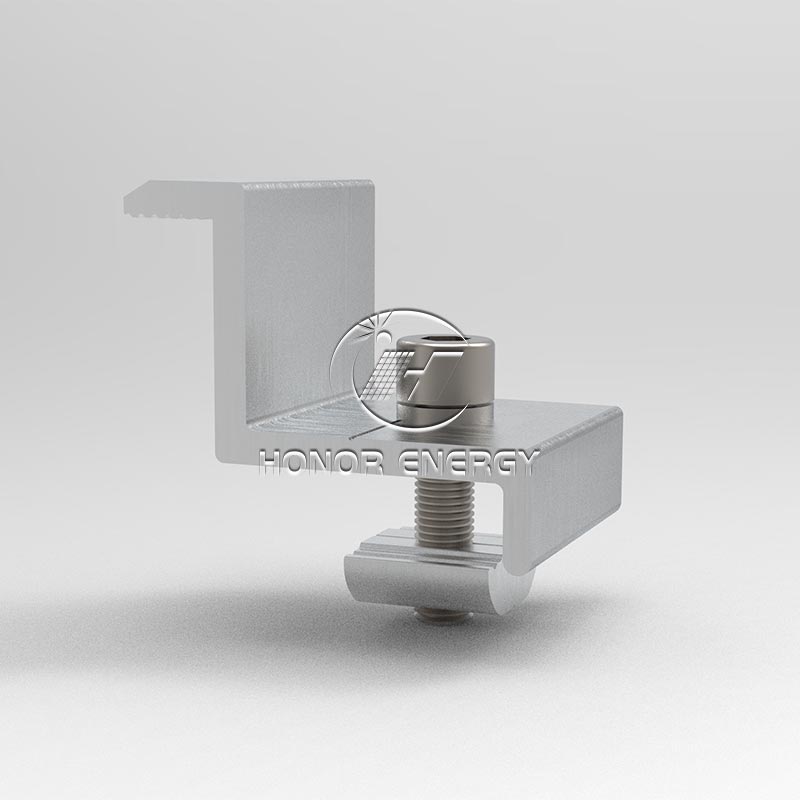

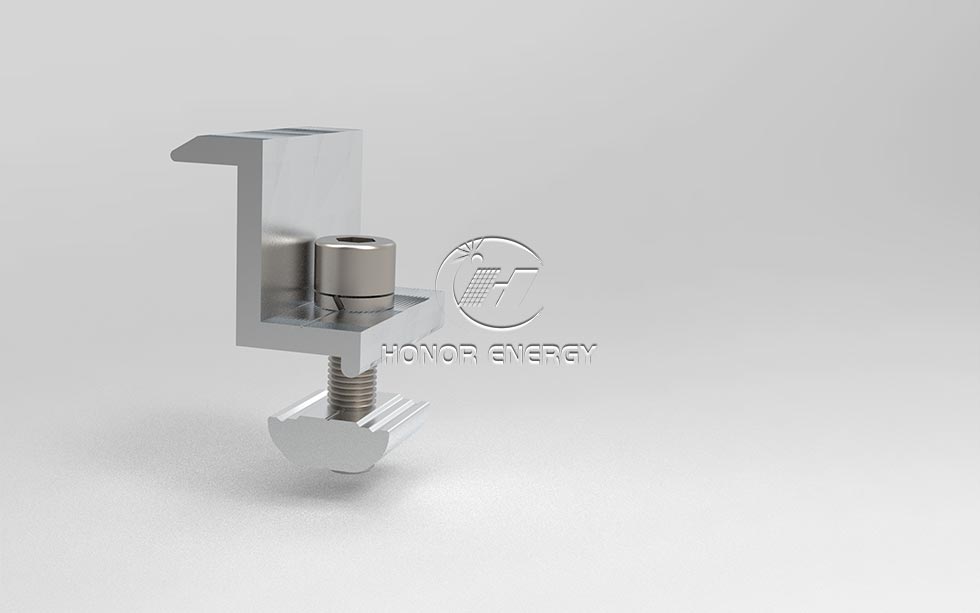

1.Ordinary end clamp：The bolt adjustment is adapted to components of multiple thicknesses, flexibly responding to specification differences.

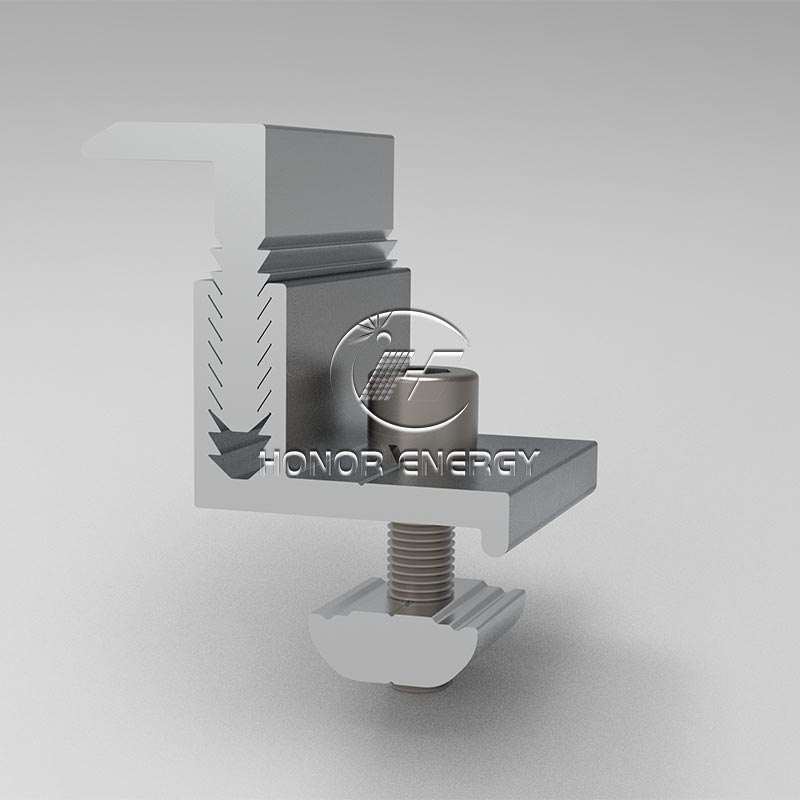

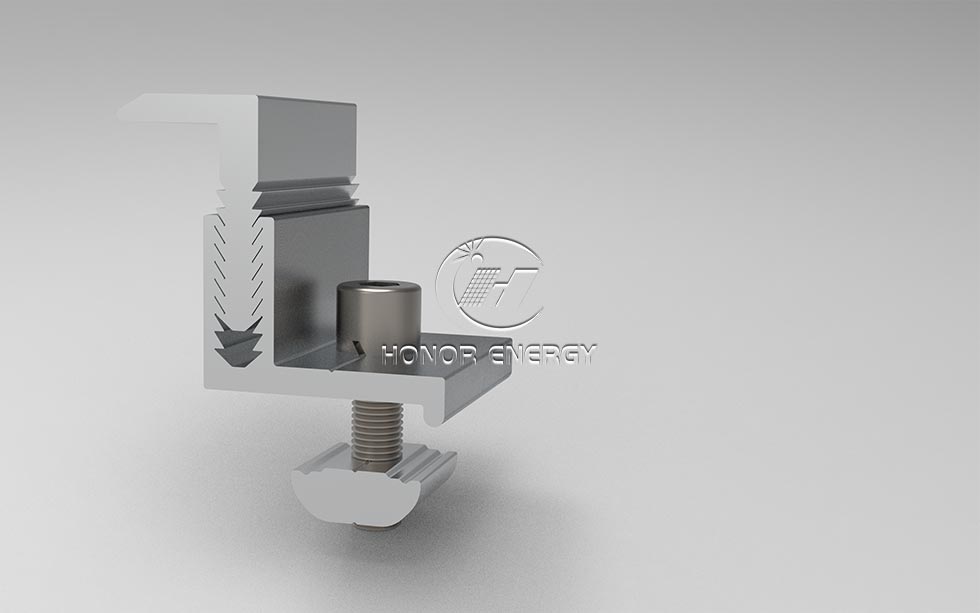

2.Adjustable end clamp：The bolt adjustment is adapted to components of multiple thicknesses, flexibly responding to specification differences.

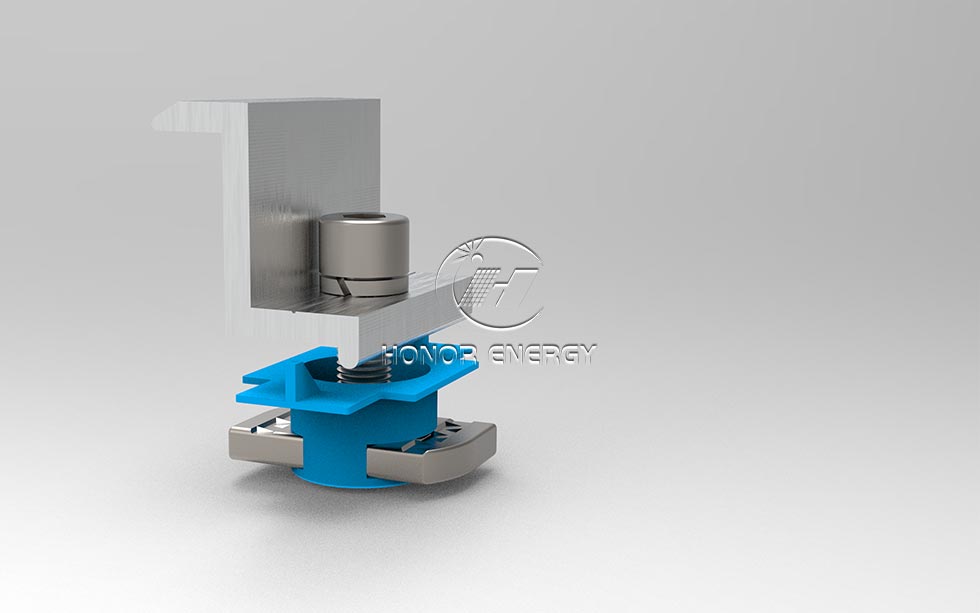

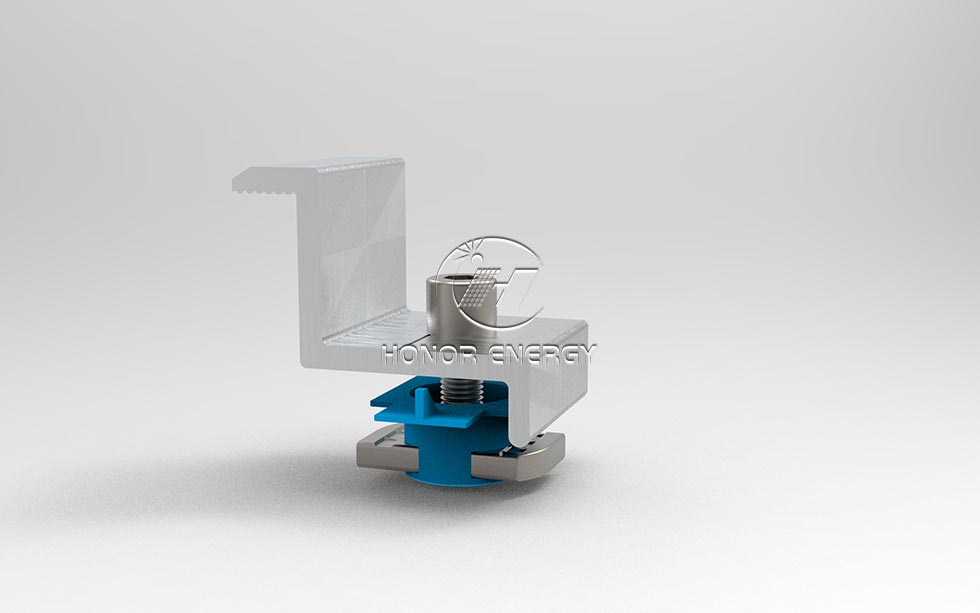

3.Plastic wing end clamp：With plastic flanges and gaskets, it is scratch-resistant, stress-reducing and protects the frame.

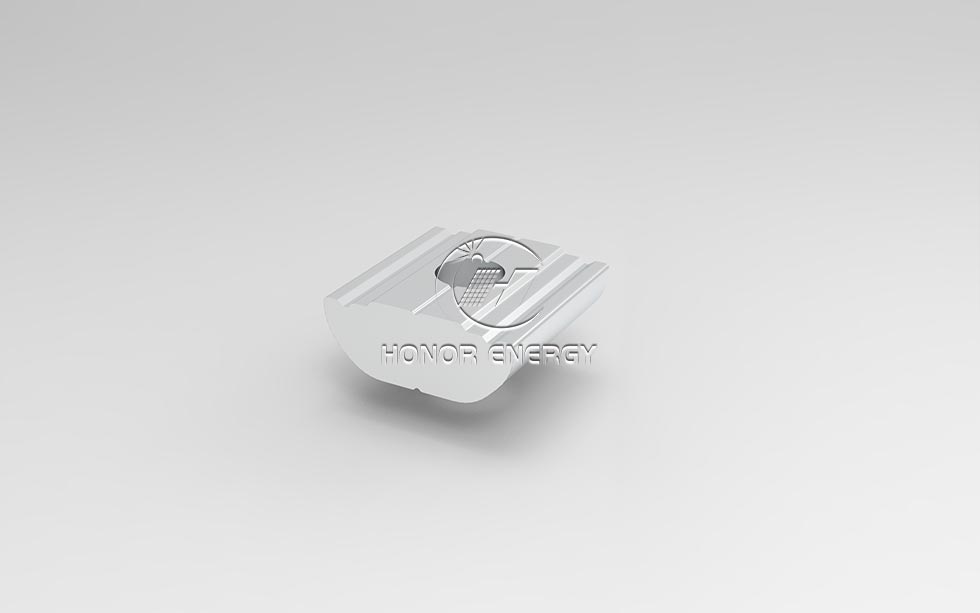

4.Rapid end clamp：The snap-on/slot design enables tool-free quick installation and speeds up large-scale construction.

advantage

1.Full range of models covered: adjustable, standard, plastic wing, and quick models are all available, compatible with components ranging from 20 to 55mm, meeting all requirements for scratch resistance and quick installation.
2.Details bonus points: The plastic wing model features a double buffer protective frame, the adjustable model is precisely fine-tuned, the black model has a matte blend of scenery, and the quick-installation snap-on has been tested for durability after 100,000 cycles.
3.Peace of mind Guarantee: IEC certification + 12-year warranty, bulk purchase with low loss and peace of mind

Installation Instructions

Before installation

Check that the model matches the thickness of the solar end clamp (20-55mm), and clean the oil stains and dust on the installation surface.

Installation procedure

Positioning: Center the clamp body between the side of the component and the guide rail, and align the edges.
Pre-fixing: Manually tighten the bolts to apply light force and level the components.
Tightening: Use a torque wrench to tighten at 8-12N · m to ensure a tight fit without any looseness.

Special Edition Note

Plastic wing end clamp: The plastic flange must be completely in line with the edge of the component.
Rapid end clamp: After pushing into the card slot, press the buckle until it locks with a "click", and then gently push until there is no displacement.
