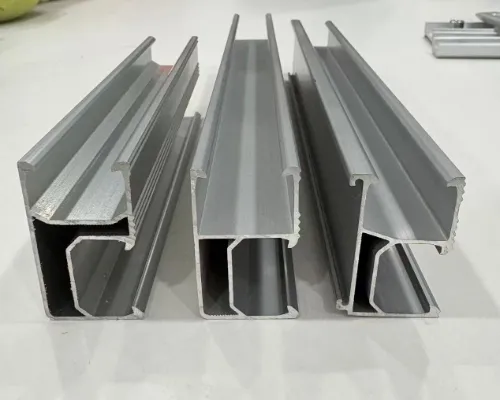

Photovoltaic Aluminum Alloy R47 Rails

As distributed photovoltaics rapidly advance toward "building-integrated" solutions, a rooftop is no longer just a shelter—it is a micro power station waiting to be activated. The skeleton that carries this green energy—solar R47Rails—directly determines the safety, lifespan, and installation efficiency of the entire system.

Our Photovoltaic Aluminum Alloy R47Rails are specifically designed for rooftop PV systems and are used in conjunction with L-feet. Made from lightweight, high-strength, corrosion-resistant aluminum alloy, they provide stable and reliable module support for industrial and commercial factories, residential tiled roofs, and color steel sheet roofs.

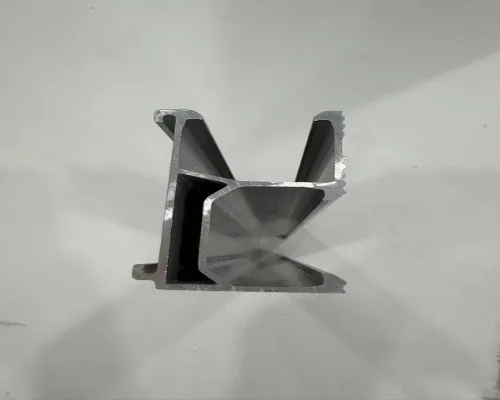

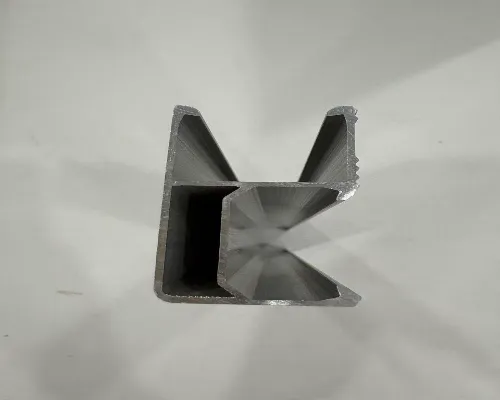

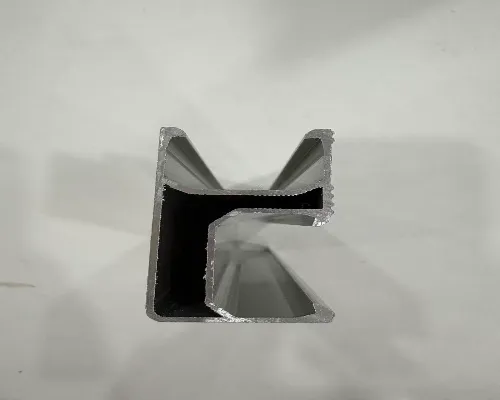

This product is a high-strength aluminum alloy photovoltaic r47rail, primarily made of AL6005-T5 (or AL6063-T5, depending on specifications), with a anodized surface treatment that offers excellent weather resistance and corrosion resistance. The rail is used together with L-feet. The L-angle serves as the transition piece between the rail and the roof substrate (such as purlins or rafters), enabling stable installation and height adjustment of the rail.

Product Advantages

1. Lightweight yet strong, less pressure on your roof

Aluminum alloy is around three times lighter than steel. It keeps great structural strength while adding very little extra weight to the roof. This makes it ideal for color steel roofs and older buildings that have limited load-bearing capacity, effectively avoiding roof overloading risks.

2. Excellent corrosion resistance for longer service life

Aluminum naturally forms a tight protective oxide layer on the surface. Paired with professional anodizing treatment, the rails stand up well to rain, salt spray and industrial air pollution. It fully adapts to C5 and lower corrosion environments based on ISO-9223 standards, covering almost all residential, commercial and industrial rooftop scenarios.

3. Versatile L-feet design fits most roof types

4. Super Easy to Install, Save Time and Labor

We designed the top groove of the rail so the module clamps can slide in and lock anywhere you want. No need for on-site cutting, welding or tedious hole alignment at all. Paired with our pre-assembled L brackets, it drastically cuts down high-altitude working hours and saves you a lot of labor cost.

5. Great Compatibility & Flexible Expansion

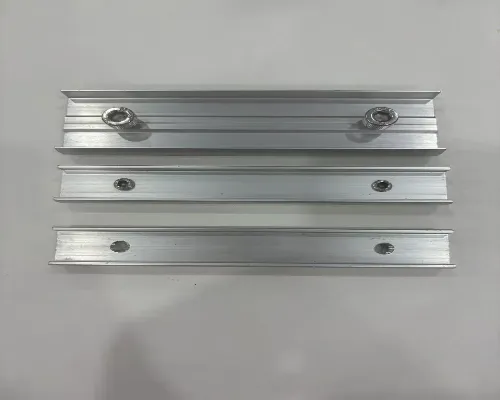

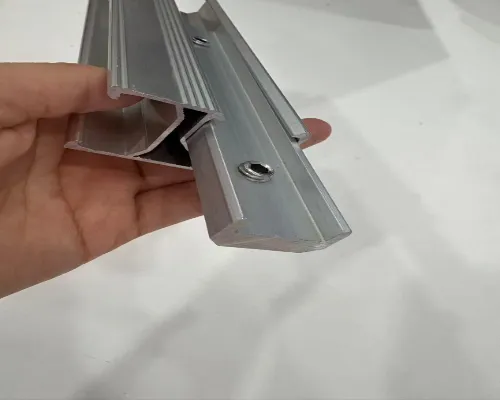

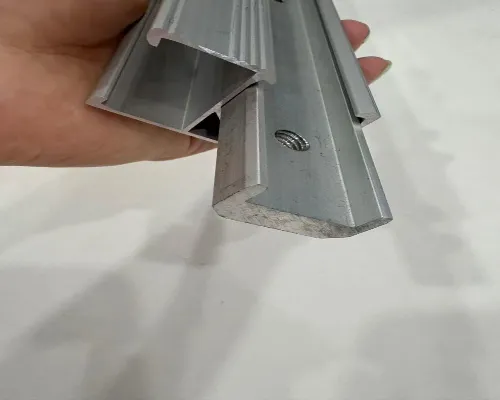

You can freely mix and match rail lengths and connectors. It supports both horizontal and vertical solar module installation. With rail connectors, the system can be extended endlessly, fitting all kinds of projects — from small household rooftop systems to large MW-level industrial and commercial solar plants.

Q&A

What is the role of the L-angle connector? Is it mandatory?

Using L-feet achieves: ① Raising the rail to the required height to ensure ventilation clearance behind modules; ② Adapting to different roof slopes and unevenness; ③ Distributing loads to structural stress points on the roof. In the vast majority of rooftop installations, L-angles are standard configuration.

Aluminum alloy vs steel rails — which one is better?

Both materials have their own pros, but aluminum alloy is definitely the better pick for rooftop distributed solar projects. It’s super lightweight, so it won’t add extra load to your roof. It’s also far more corrosion-resistant than regular steel, no hot-dip galvanizing needed for long-term outdoor service. Besides, the extrusion manufacturing process makes the rails high-precision with customizable cross-sections, so you can finish installation fast with our special matching clamps. For color steel roofs and residential rooftops, aluminum alloy is the top choice.

Will scratches on the anodized coating hurt corrosion resistance?

Light scratches caused during installation won’t affect the overall anti-corrosion performance at all. The anodized film sticks tightly to the aluminum base material. Even if there’s minor local damage, the aluminum will automatically form a new oxide layer to protect itself. That said, you should avoid deep scratches and leave cut cross-sections exposed for a long time. For areas with severe corrosion, you can simply coat the cut edges with anti-rust paint. Our R47 photovoltaic aluminum alloy rails are always your most reliable option.

What bolts work for connecting rails and L brackets?

We recommend SUS304 stainless steel bolts (grade A2-70 or higher), matched with stainless steel nuts and spring washers. Stainless steel paired with aluminum alloy won’t cause galvanic corrosion, perfect for long-term outdoor use. M8 is the most common bolt size, and we can adjust the exact specification according to your load-bearing design needs.

From every single bolt and rail to each L bracket and rooftop solar system, we always focus on making PV installation safer, easier and more long-lasting. Our aluminum alloy rail and L bracket mounting system offers solid, durable structural support for your rooftop solar power station, standing the test of time. Feel free to contact us for product samples and professional technical support!
