Solar Horizontal Waterproof Channel

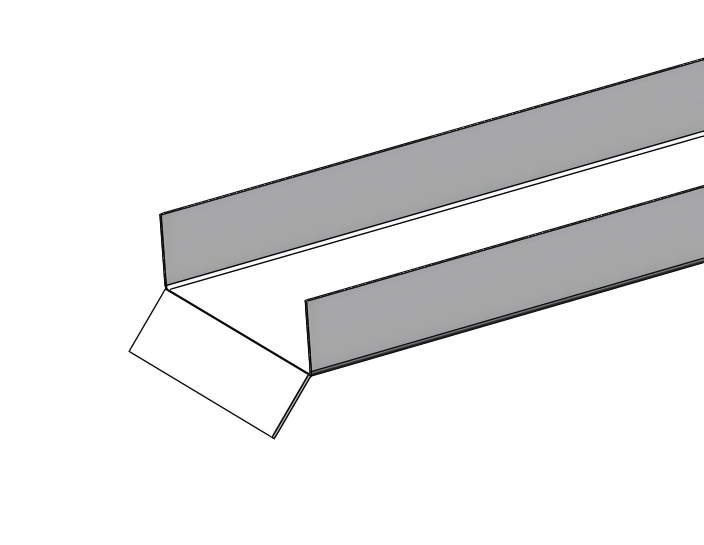

You can look for it at our factory.Solar Horizontal Waterproof Channel organizes and systematizes the previously scattered water flow, directly protecting the roof, building facade, or ground foundation below while eliminating the possibility of water stains forming on the module glass due to diffuse reflection. This seemingly simple groove is, in essence, a critical detail that enhances the overall reliability of the photovoltaic system, safeguards the structural integrity of the building, and ensures power generation efficiency.

Adapt to the situation

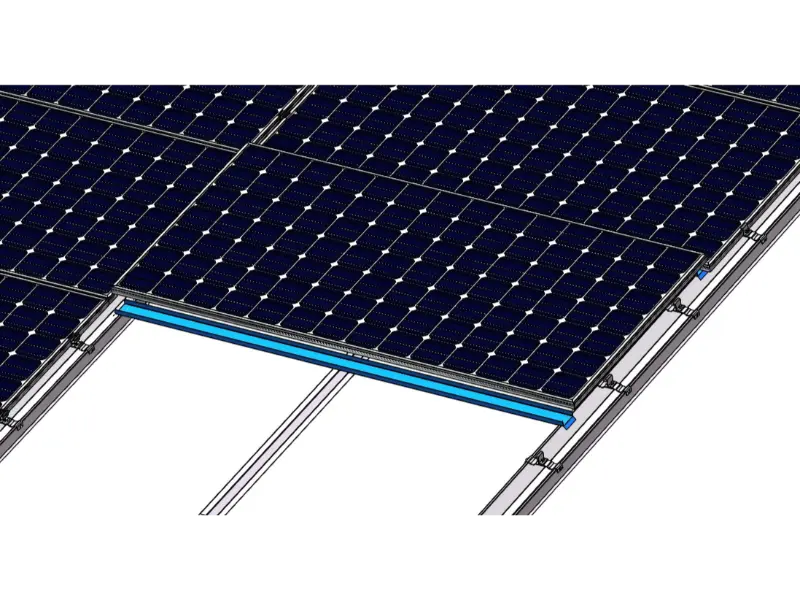

Solar Horizontal Waterproof Rail is typically installed in the gaps between panels, but this does not mean it is mounted together with the panels. Rather, it is designed to catch rainwater that leaks through the panel gaps, thereby protecting the space beneath the photovoltaic system from water intrusion. Additionally, its smooth surface prevents water from pooling, reducing the risk of water accumulation.

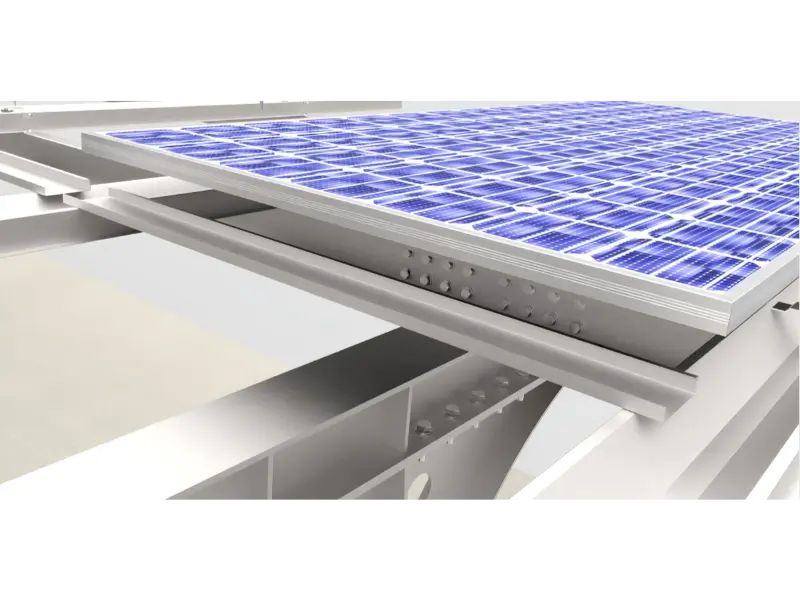

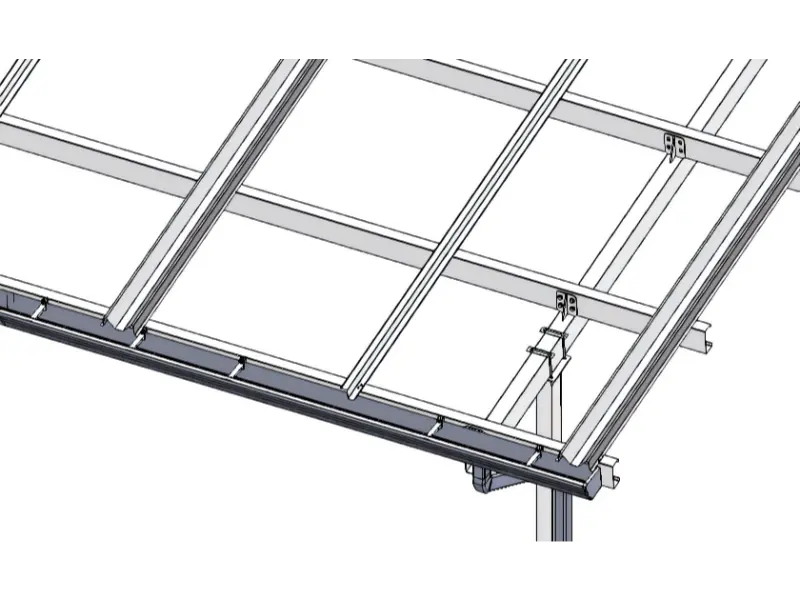

Waterproof photovoltaic mounting systems are commonly used in solar carport systems. This is because Solar Horizontal Waterproof Racking typically need to be parked beneath these structures, which must provide both shade and protection from rain. The system effectively seals the areas with the most panel gaps, preventing rainwater from entering.

Note:

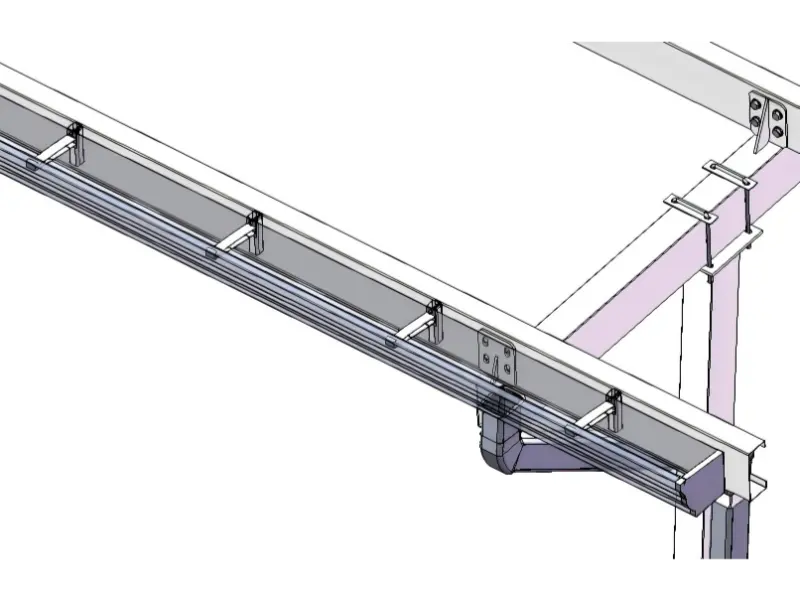

In this setup for keeping water off the solar panel frames, there are two main PV Horizontal Waterproof Rail. The bigger one at the bottom catches all the rainwater first. That water then flows into a side channel that guides it away. We also need to add pipes along the way. These pipes take the water from the channels and release it directly onto the ground. This way, the water doesn’t just drip down from a height, which could be annoying or unsafe for people or things below.
