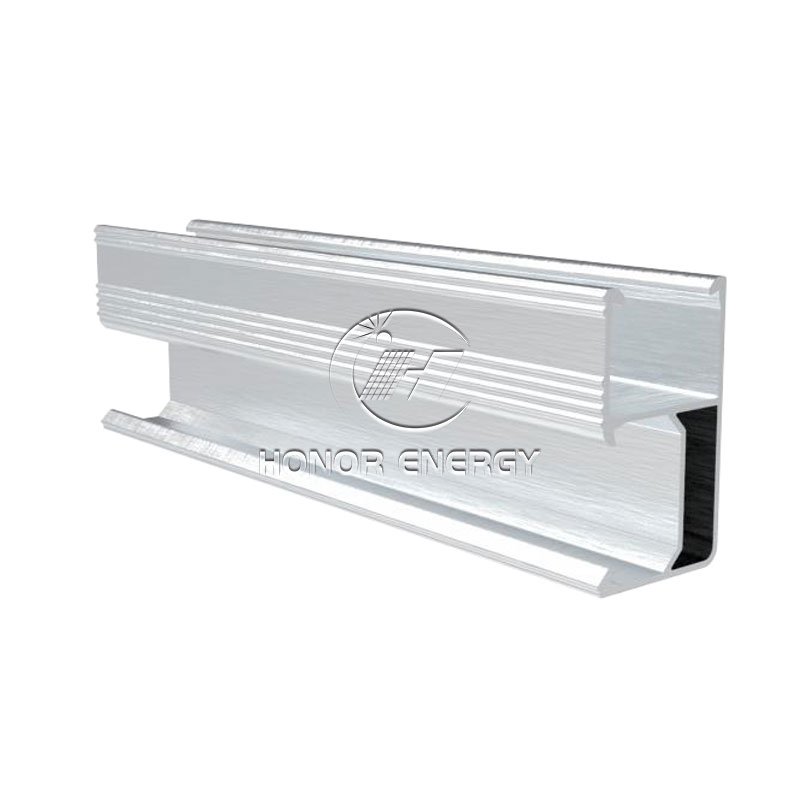

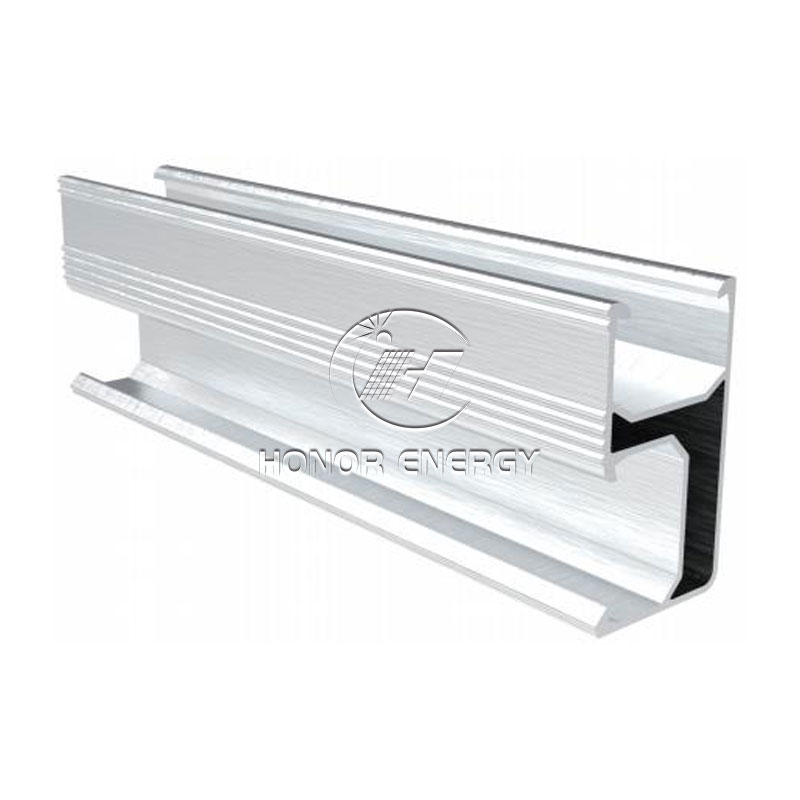

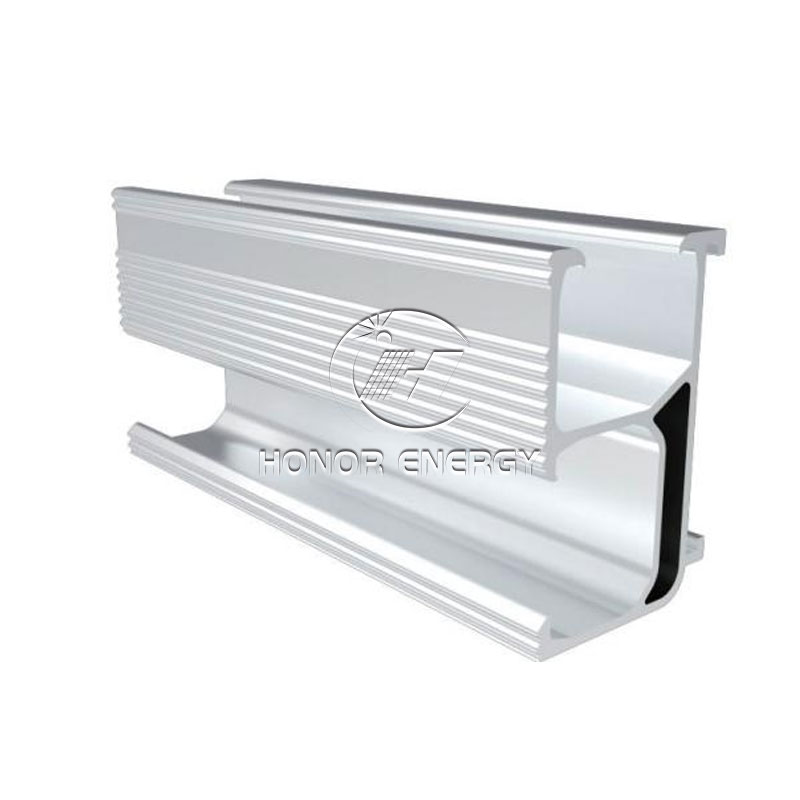

Solar R-type Rail

Our solar R-type rail built to Last: 25+ Years of Use

Made from 6005-T5 high-grade aluminum (extruded in one piece), with an anodized coating for corrosion protection:
Tough in any environment: Handles coastal salt spray, intense inland UV, and temp swings (-40°C to 80°C) like a champ
No rust issues: Same material as solar panel aluminum frames — no "mutual corrosion"
Light but strong: 1/3 the weight of steel (same strength), so it’s easier to ship and install (saves labor too)

Tough Enough for Storms & Snow

The R-shape + extra reinforcing ribs mean it’s light and tough:
Windproof: Stands up to Category 17 typhoons (60m/s wind speeds)
Snowproof: Holds 1.4kN/m² (that’s ~1.4m of snow weight per square meter)
Flexible spans: Single rails stretch up to 2.4m — fits all common panel size

Super Easy to Install: Cuts Time by 50%

No on-site drilling: Pre-punched holes — just snap on nuts/clamps and go
Our aluminum solar R-type rail can works anywhere: Roofs (asphalt/metal tiles), ground setups, carports — any scenario
Built-in extras: Cable troughs for wiring, grounding ports — simplifies wiring/lightning protection in one step

Compatible panels: All mainstream sizes

Standard lengths: 2560/3400/4200mm (custom lengths available)
Colors: Silver or black — matches your building’s look

Why choose us?

Fully certified: CE, ISO9001, JIS — all the global stamps of approval
Saves money: Modular design cuts waste; faster installs mean less labor cost
We’ve got your back: 10-year warranty + 25-year performance guarantee, plus dedicated tech support
Whether it’s a small rooftop setup or a big ground-based farm, our solar panel mounting R-Type Rail is the reliable, hassle-free backbone your solar system needs.
