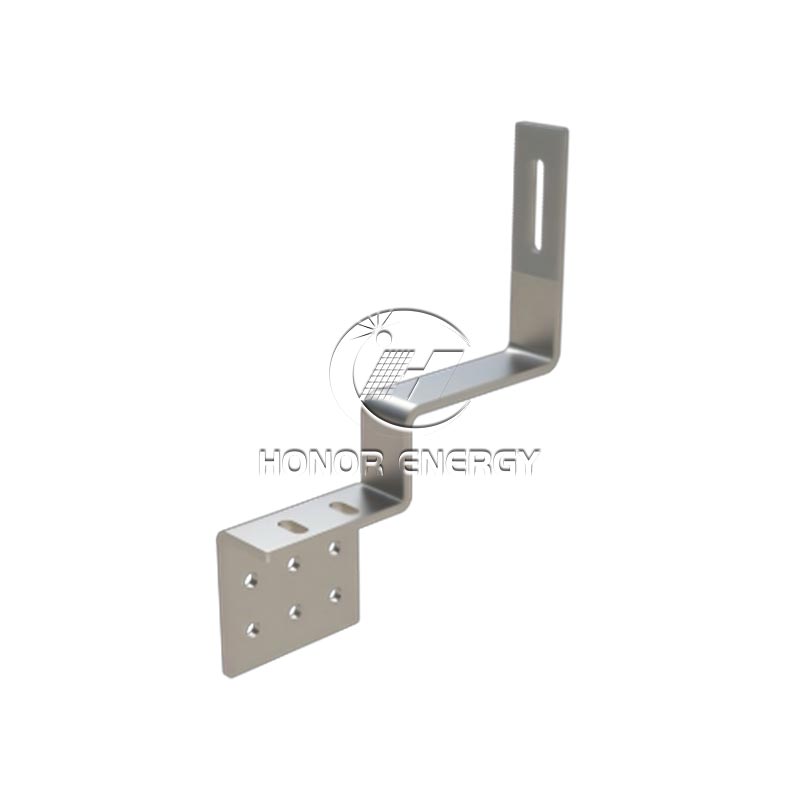

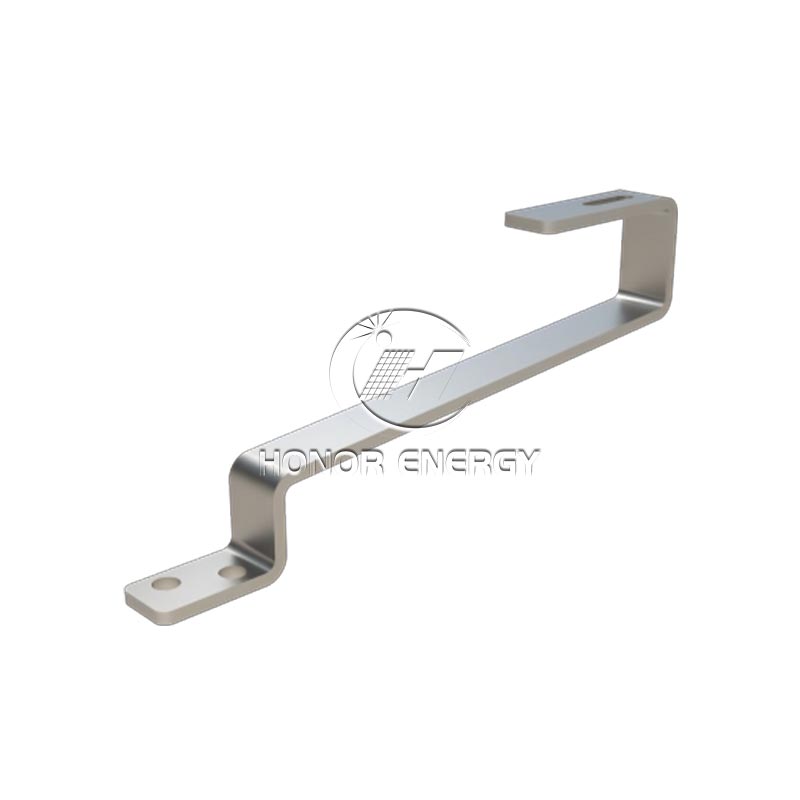

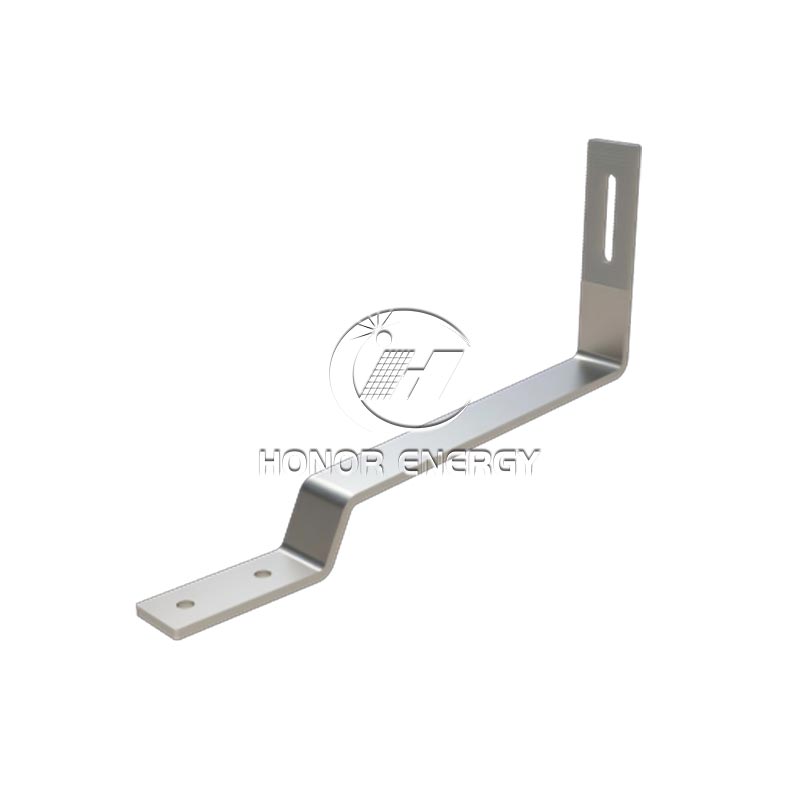

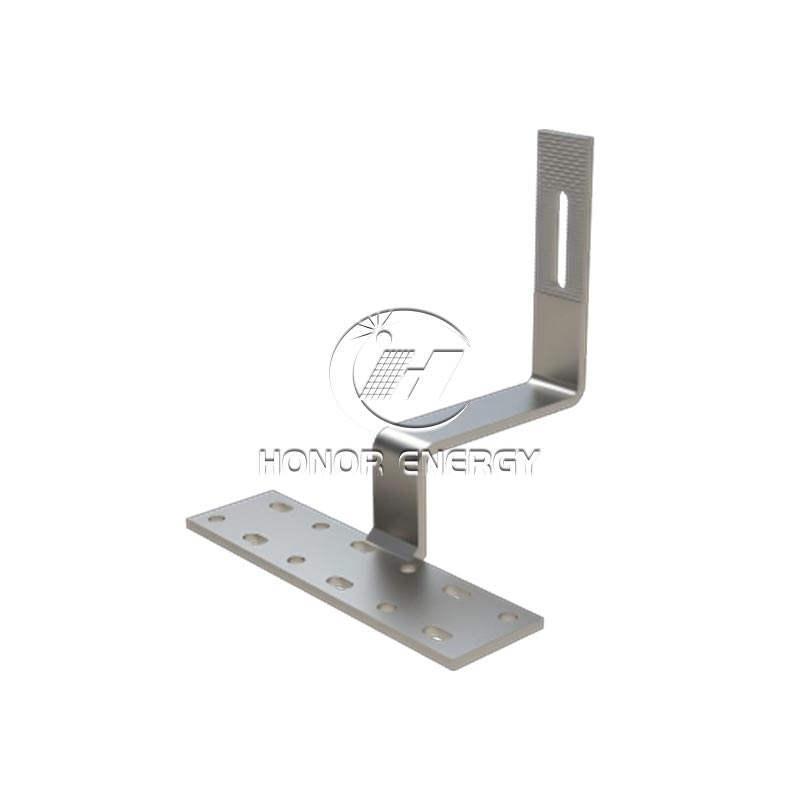

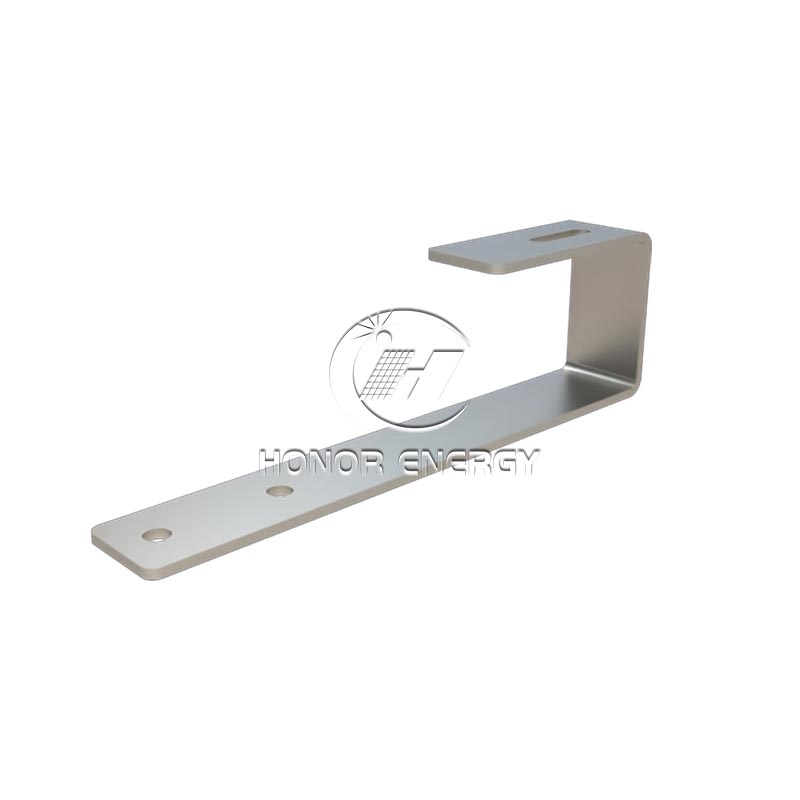

Steel Solar Tile Roof Mount

Name: Steel Solar Tile Roof Mount

Installation Site: All kinds of tile roofs

Product Origin: Fujian, China

Material: Steel

Warranty: 12years

Duration: 25years

Shipping Port: Xiamen Port

Lead Time: 7-15 days

Max Wind Speed: 60m/s

Max Snow Load: 1.6kn/㎡

What are the characteristics of the product?

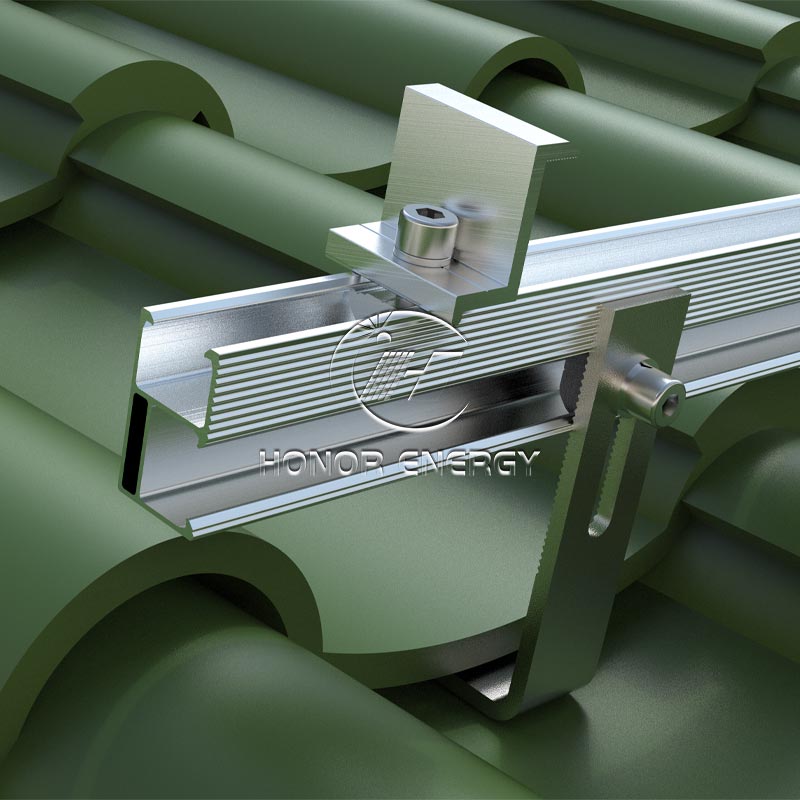

Wide adaptability: Compatible with various types of tile roofs such as asphalt shingles, terracotta tiles, and metal tiles, and can match different roof slopes (15°-45°) through adjustable connectors.

Flexible installation: Modular design allows for adjustment of the spacing according to the size of the photovoltaic modules, reducing damage to the roof structure.

Reliable structure: The solar tile roof mounting made of carbon steel, it can withstand wind loads up to 2400Pa and snow loads up to 5400Pa, making it suitable for various climate regions.

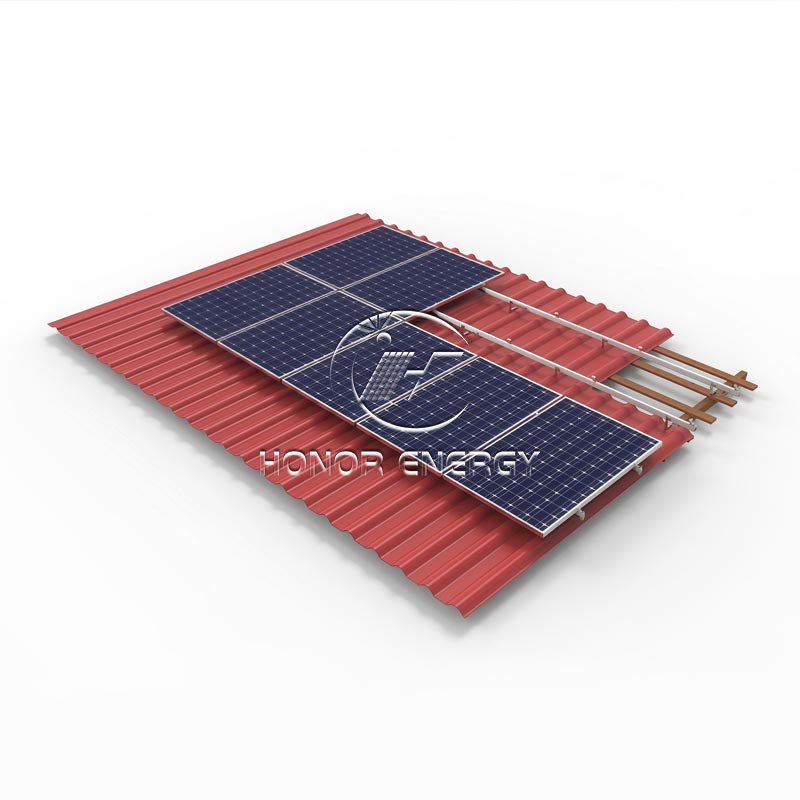

Steel Solar Tile Roof Mounting is suitable for residential or small commercial tile roof photovoltaic projects, especially for roof installation scenarios where both load-bearing capacity and aesthetics are required.

Advantage

1. Reliable quality: The steel is sturdy, with a double-layer anti-rust surface. It is not easy to break in rainy or cold and hot weather, and has a stable load-bearing capacity, not afraid of wind and snow.

2.Good compatibility: Both asphalt shingles and terracotta tiles can be installed, the slope can be adjusted, and the tiles do not need to be damaged during installation.

3.Easy installation: The parts are equipped with holes, and the snap-on quick installation saves time. It also comes with a protective pad to prevent the tiles from breaking.

4.The price of steel solar tile roof bracket is lower than that of aluminium.

5.After-sales peace of mind: Supports customization according to the roof, provides installation guidance, and comes with a 12-year quality guarantee for worry-free use.

FAQ

1.How much weight can the solar roof bracket bear?
Answer: a single point of bearing 300 kg or more, strong ability to resist wind and snow, more climate region.

2.Can it be installed on roofs of different slopes?
Answer: Yes, the slope can be adjusted from 15°to 45°,which is suitable for the inclination angles of most tiled roofs.

3.Is there any guarantee for after-sales service?
Answer: Provide 12 years warranty of quality, installation guide, problems timely response.
