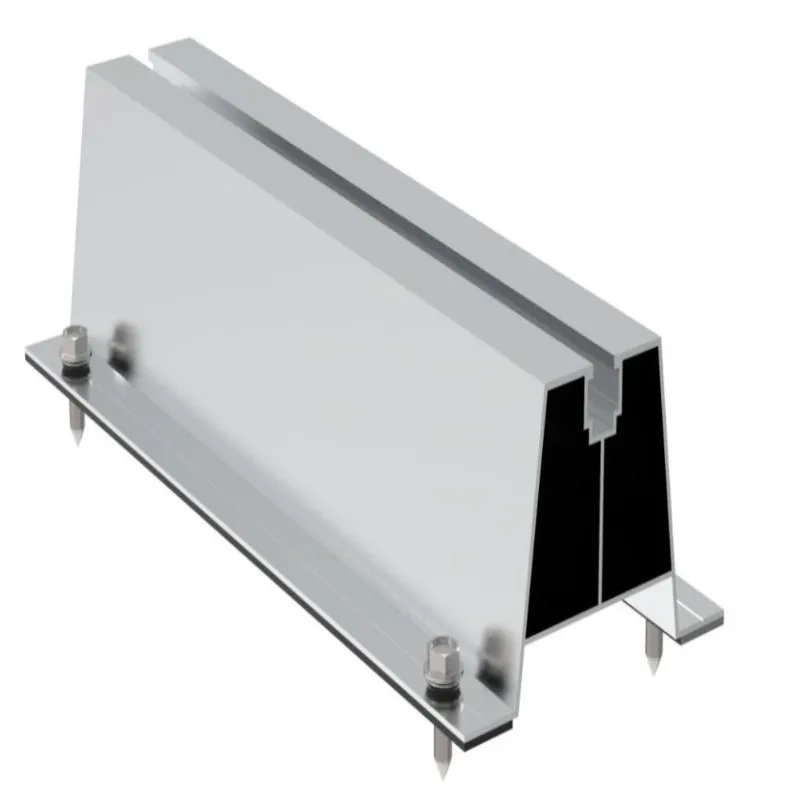

U70 Aluminum Solar Mounting Rail

Xiamen Honor Energy's U70 Aluminum Solar Mounting Rails for Wholesale Procurement. It delivers reliable performance in coastal salt spray environments, rainy zones, high-temperature areas, and frost-prone locations. However, it is not suitable for sites with severe chemical corrosion unless additional protective treatment is applied. Apart from the U70 model, we also supply alternative variants, including the U30 and U50. Furthermore, we are able to offer professional technical recommendations based on your real-world on-site conditions.

Product Specifications

Advantages

Cost-effective mini-rail design reduces aluminum consumption and roof load.

Fast on-site installation saves labor costs for large commercial rooftop projects.

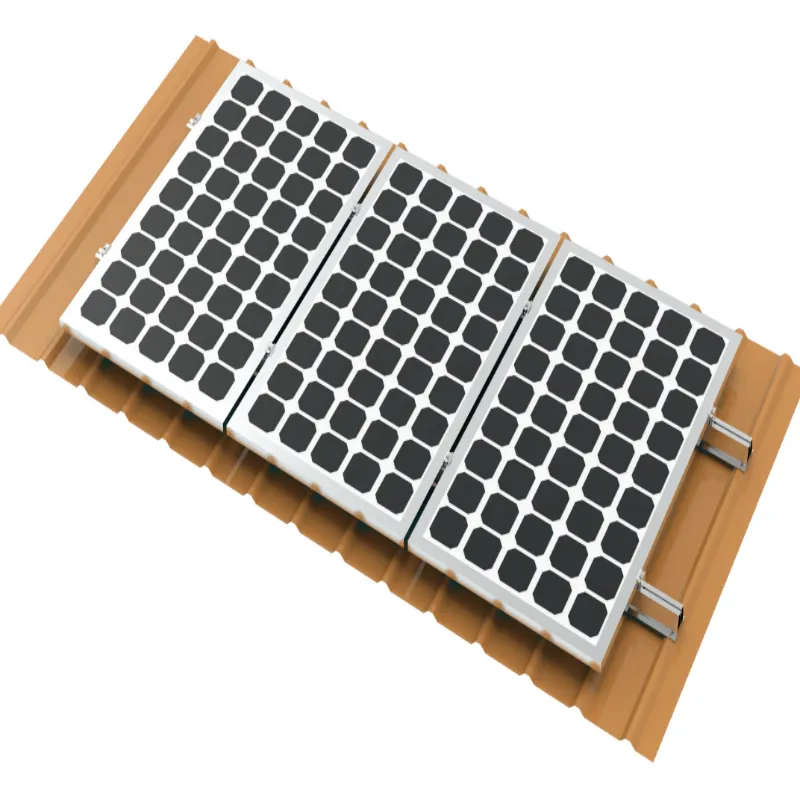

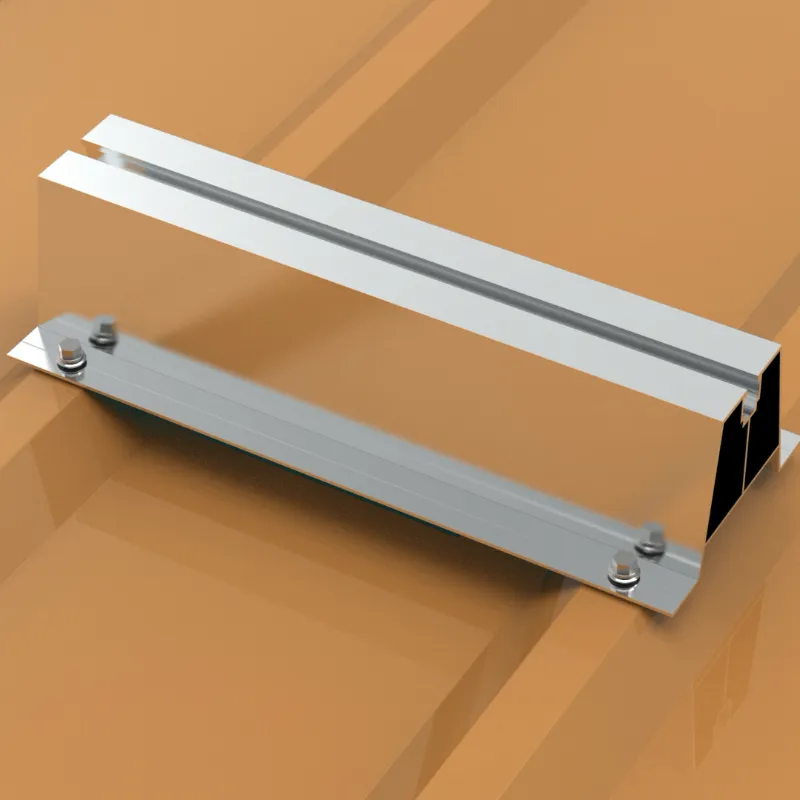

Perfect fit for trapezoidal/corrugated metal roofs, with waterproof EPDM gaskets.

High-strength 6005 T5 aluminum alloy, good wind & snow load performance.

Universal T-slot, compatible with most PV clamps and solar modules.

Short-length profile, convenient for packing & transportation, less deformation risk.

How to Install the U70 Aluminum Solar Mounting Rail

Step 1: Locate the purlins under the metal roof and mark drilling positions. Screws must fasten onto purlins, not only on the roof sheet.

Step 2: Place the U70 rail in the marked position. Fasten the roof purlin with self-drilling screws together with EPDM waterproof gaskets. Tighten to required torque.

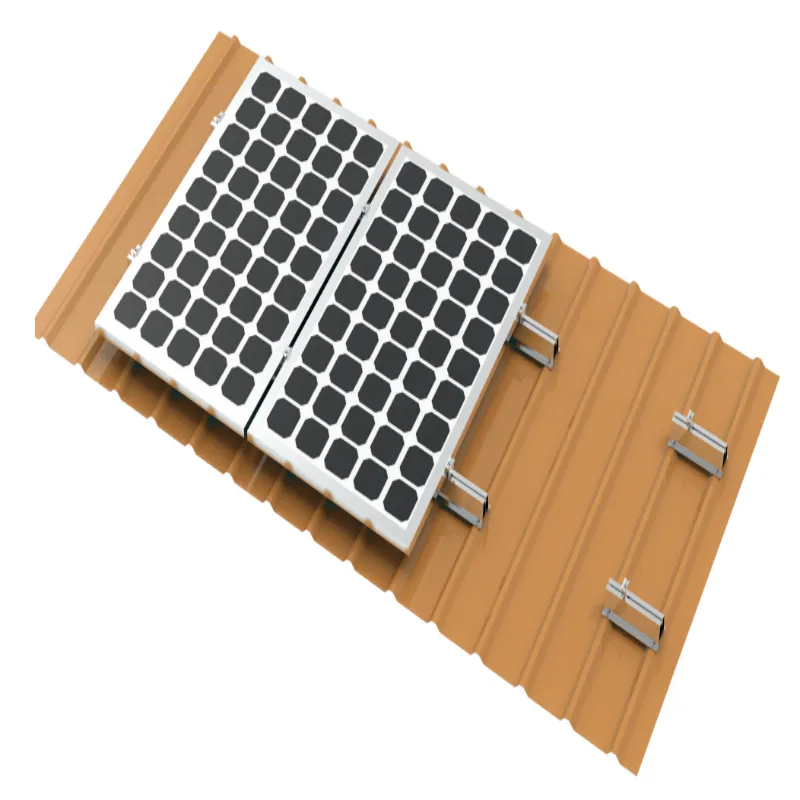

Step 3: Arrange multiple U70 rails according to solar module dimension. Ensure every module corner is supported by rail. Lay PV modules onto the top of U70 rails.

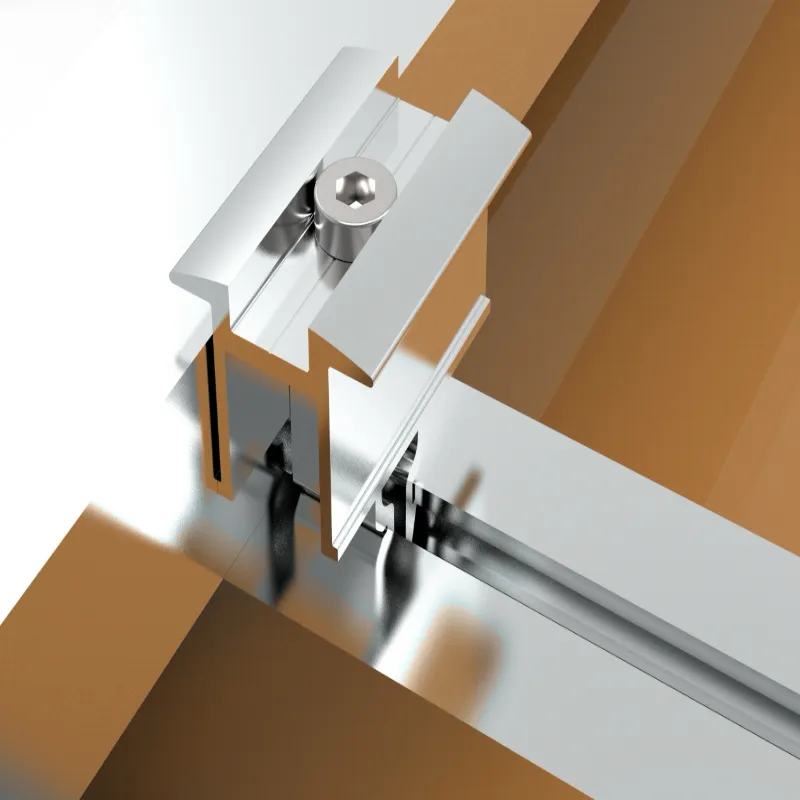

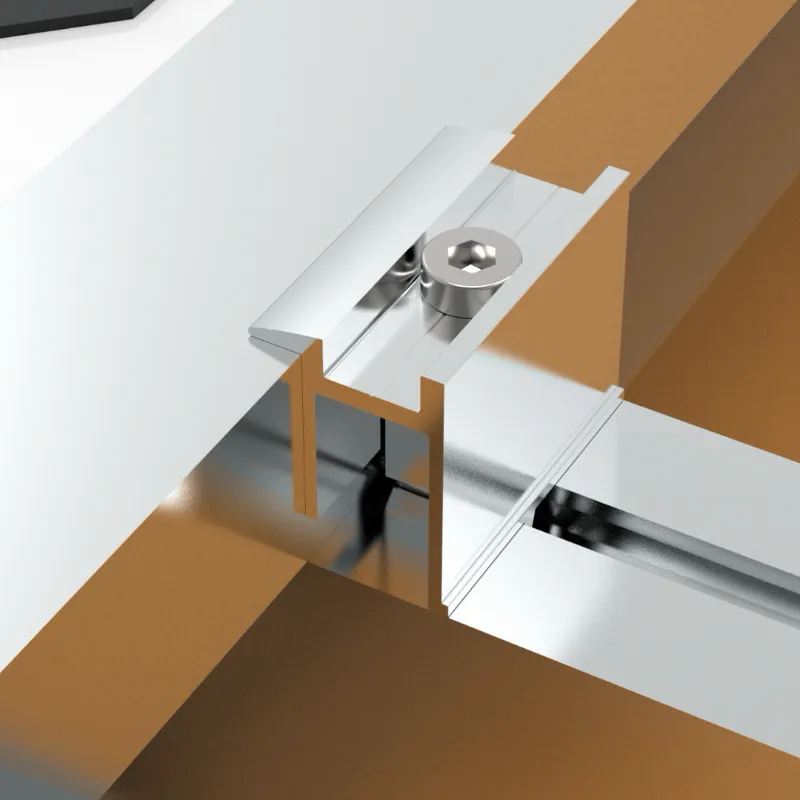

Step 4: Install quick install end clamps & mid clamps, and tighten to specified torque to hold module frames firmly.

Step 5: Double-check all screw torque and gasket integrity; installation completed.

The certification

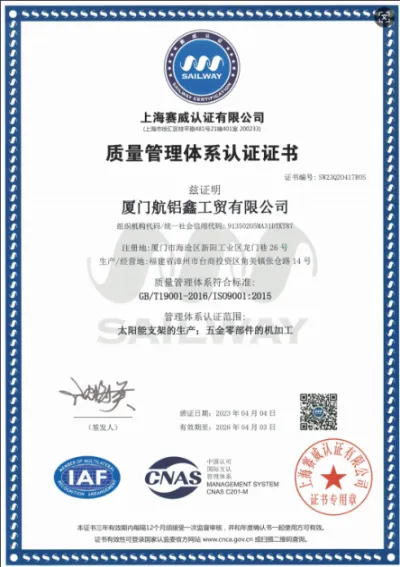

Our U70 Aluminum Solar Panel Rail are manufactured under quality management and certified to the ISO9001 standard.

The ship is out.

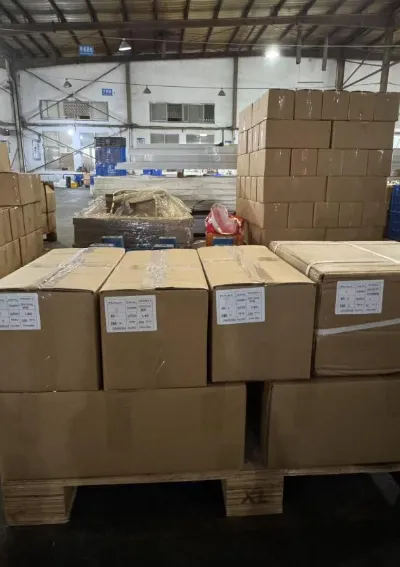

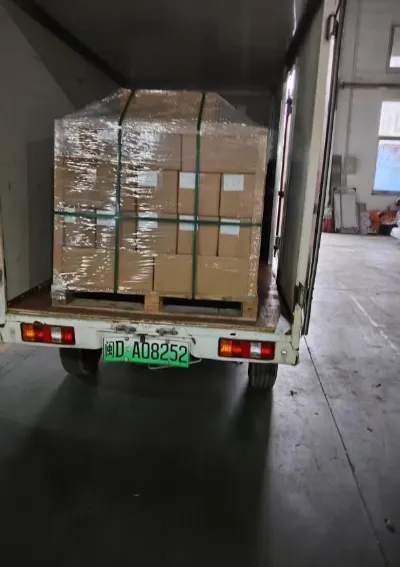

Due to the short length of U-type mini rails, they are packed in cartons and secured on wooden pallets to keep goods neat and prevent deformation during transit.

FAQ

Q1: What kind of roof is this U-shaped mini-rail suitable for?

A: It is mainly designed for trapezoidal and corrugated metal roofs. Screws must be fastened onto roof purlins. Not suitable for thin sheets without purlins or concrete flat rooftops.

Q2: What material and surface finish does the rail adopt?

A: 6005 T5 aluminum alloy with an anodized surface treatment, featuring good corrosion resistance for long-term outdoor use.

Q3: What is the warranty period?

A: 10-year material warranty for the rails. Excludes installation-caused damage and man-made damage.

Q4: Is welding required during installation?

A: No welding is needed at all. Secure rails with self-drilling screws and fasten PV modules with T-bolts and clamps. All connections are bolt-on.

Q5: Do rails need to be spliced for extension?

A: Splice connectors are not required. As short-section mini-rails, they shall be placed under each corner of solar modules directly.

Q6: What is the packing method? A: Rails are packed in cartons and secured on wooden pallets to keep neat and avoid deformation during transit.

Q7: Which solar PV modules are compatible?

A: Compatible with most mainstream PV modules with a 30–45 mm frame height, matched with corresponding mid-clamps and end-clamps.

Q8: Is its wind-load performance reliable?

A: Wind-load performance depends on purlin layout and screw positions. Screws must be fixed onto steel purlins rather than only on roof sheets. Construct in accordance with designed spacing to satisfy local wind-load requirements.

Q9: Can you cut rails to customer-specified lengths?

A: Custom cutting service is available, with a length tolerance of ±2 mm. Please inform us of your required dimensions.
