Aluminum Solar Balcony Mount

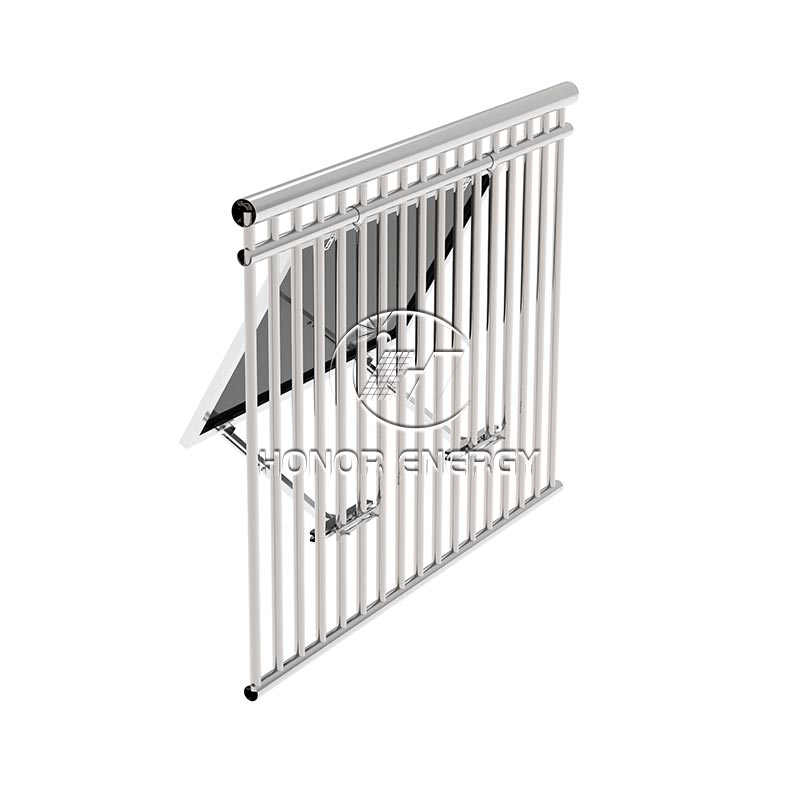

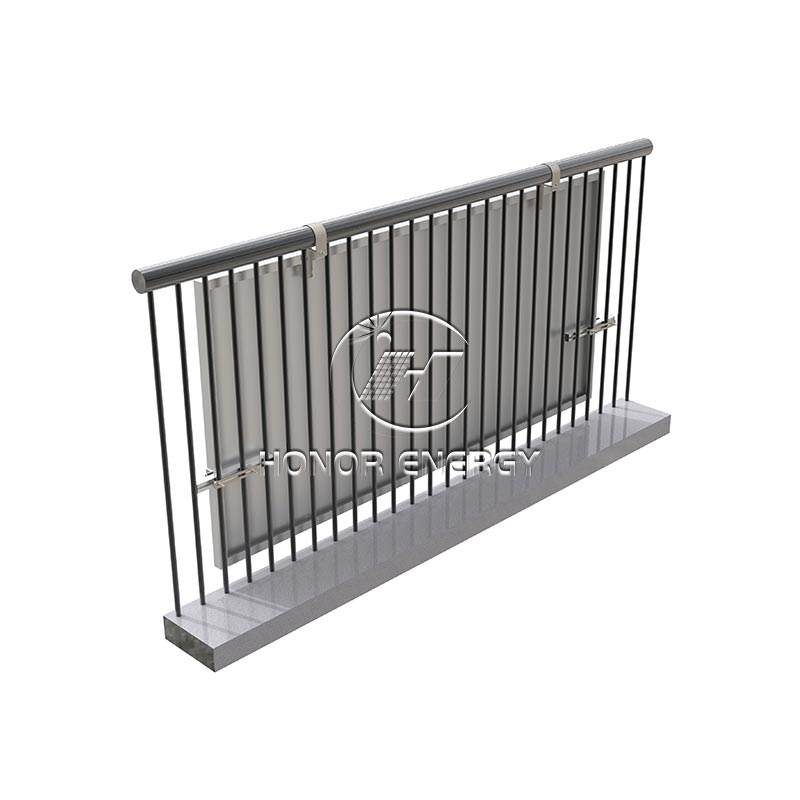

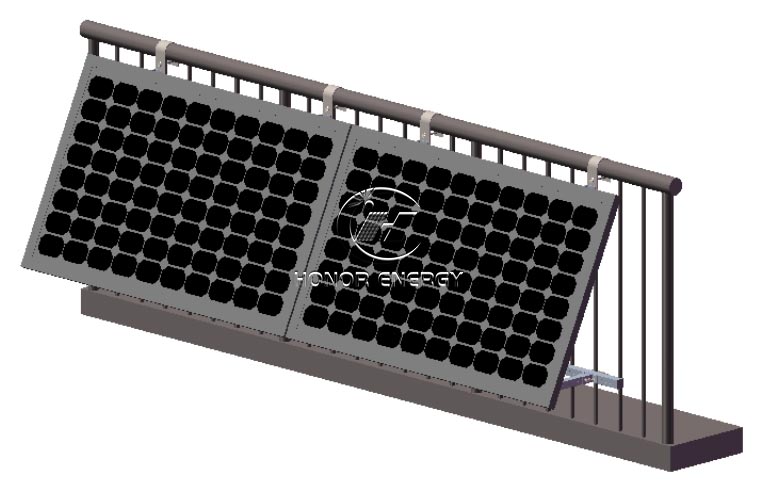

Aluminum Solar Balcony Mount is suitable for balcony railings, exterior walls, or floors, and does not take up extra space. Made of aluminum alloy, it is lightweight and compatible with most balcony load-bearing capacities. It supports vertical installation (space-saving) or diagonal installation (optimized lighting angle) and has an adjustable angle.

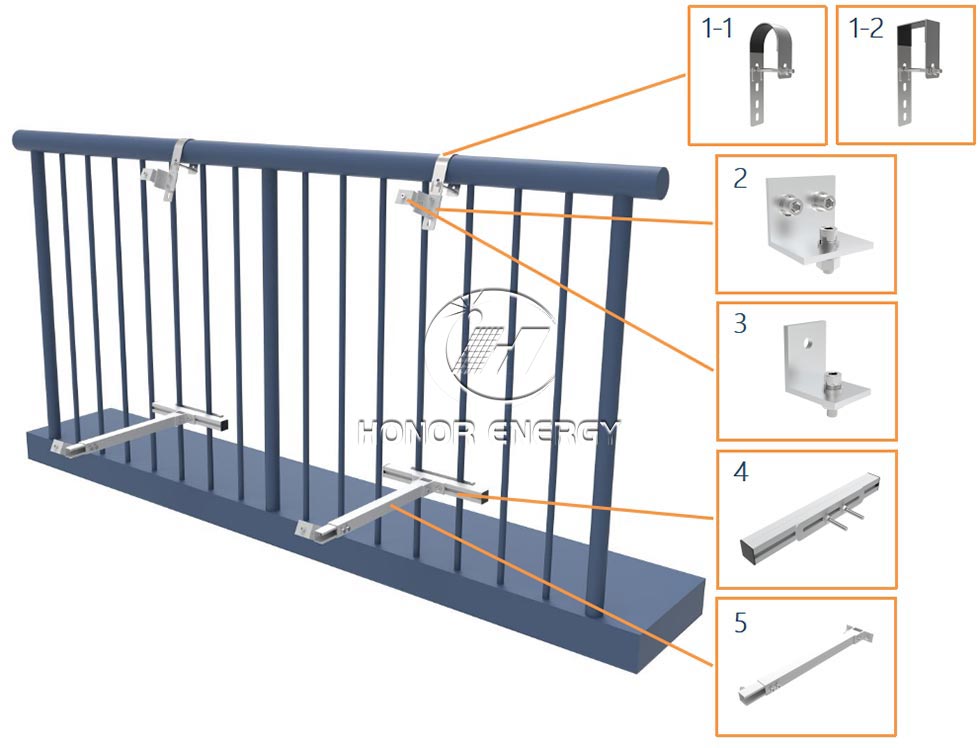

Accessories

To install solar balcony,we need accessories as follows:

1-1	1-2	2

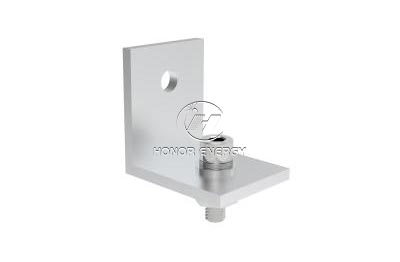

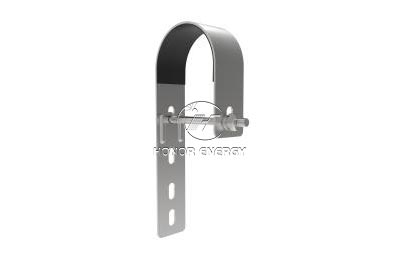

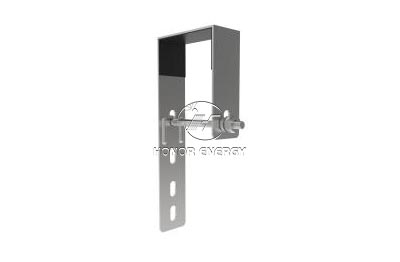

Balcony Hook 01	Balcony Hook 02	L Connector 01 (L60)
3	4	5

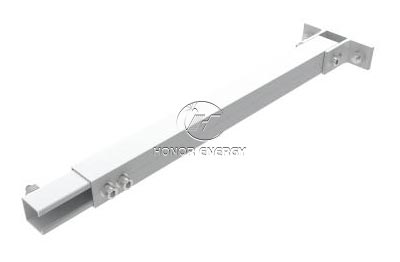

L Connector 02 (L40)	Square Base	Adjustable Bracing

It is not need to change the bracket when replacing the components. It is compatible with 95% of mainstream components. When replacing components of the same specification or higher power, only the fasteners need to be adjusted without changing the main body of the bracket.

Installation

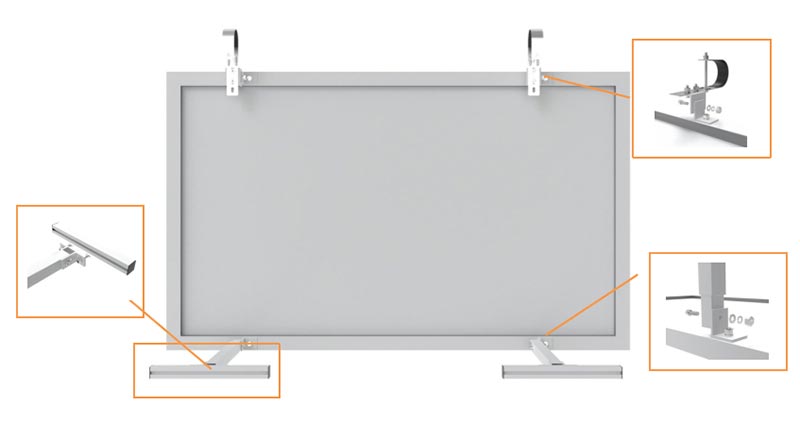

1.First, install two hooks at the top of the panel and two bases and braces at the bottom.

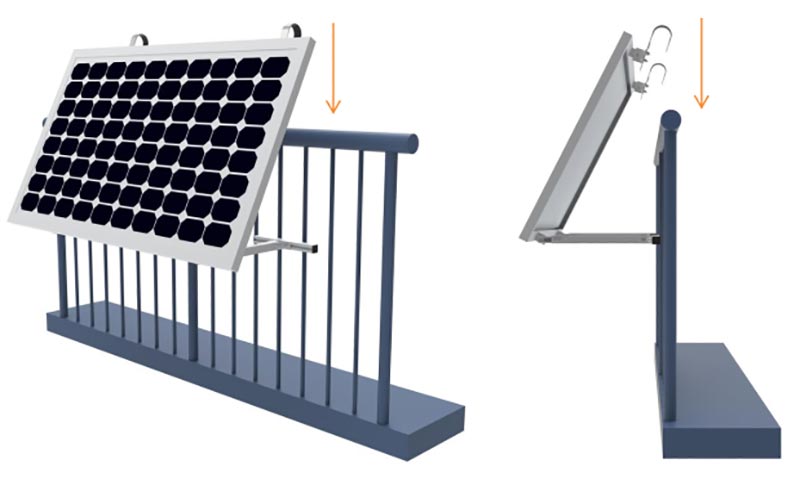

2.Then hook it onto the railing from top to bottom.

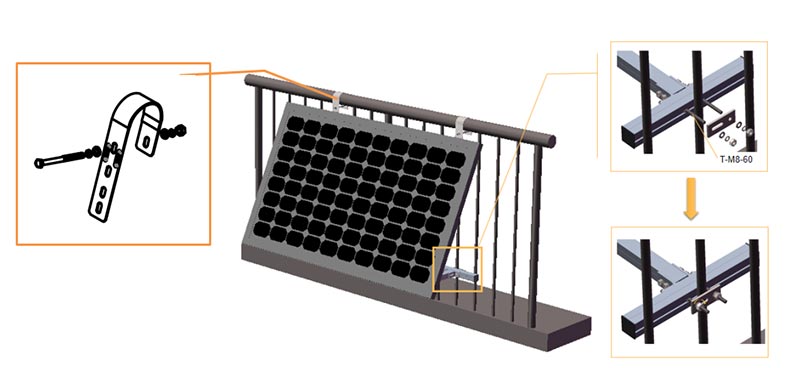

3.Next, secure the top hooks and railings with bolts, and secure the bottom railings and braces in the same way.

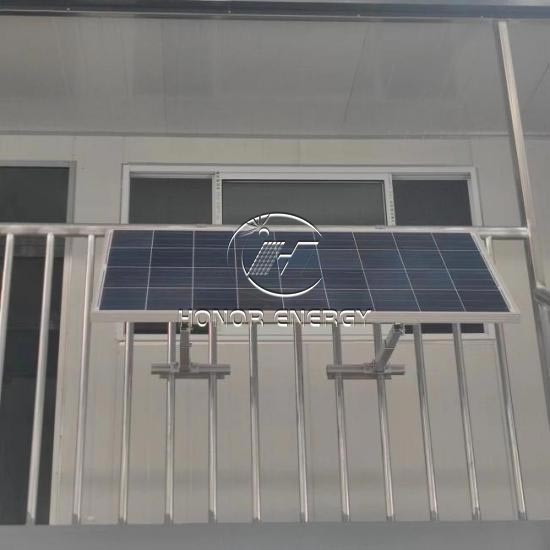

4.Now solar on balcony is installed.

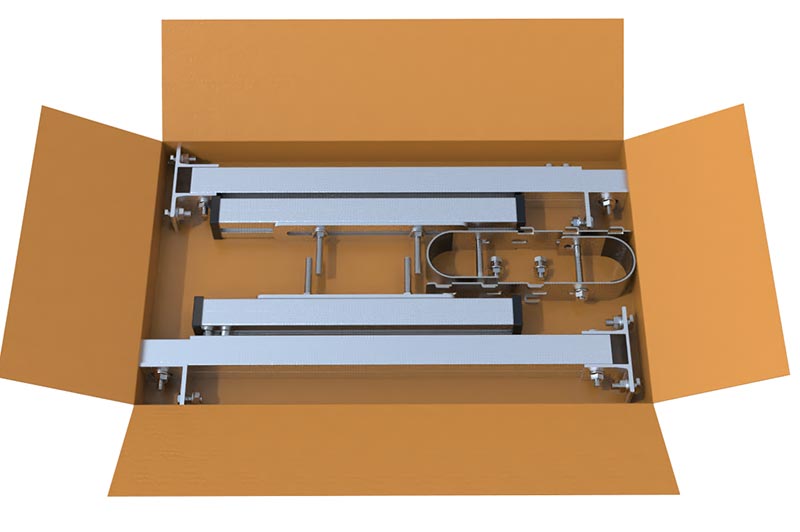

Packaging

The structure of solar balcony photovoltaic is relatively simple and requires few accessories. When packaging, the entire set of brackets is usually placed in a single box for the convenience of customers' future installation and inspection.
