Double Hole Steel Solar Base

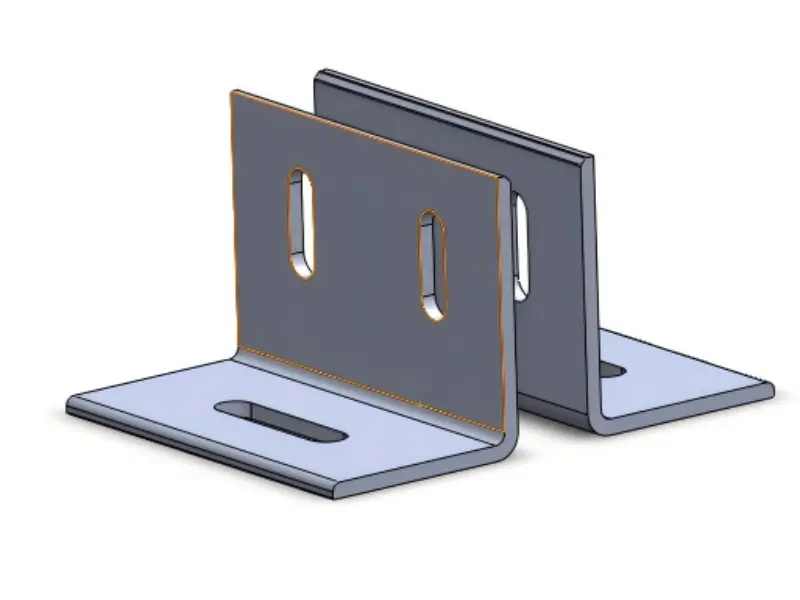

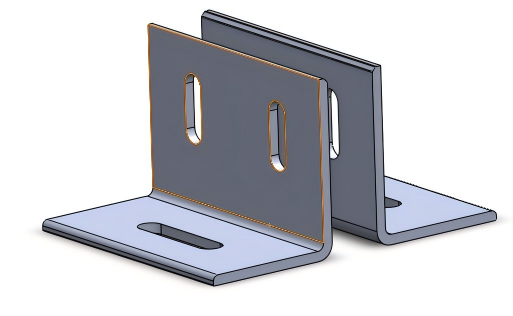

Double Hole Steel Solar Base’s top features two parallel holes for securing the upright posts. The bottom features a long slot for connecting to ground anchors. In the iron support setup, you usually have two main parts. These pieces snap or lock together to make a full base, which then gets fixed firmly to anchors in the ground.The base has two holes. This doesn’t just help it stand up better against strong winds that try to lift or push it—it also lets you tweak the height a little when you’re setting it up. That makes it easier to line everything up correctly during building.We offer free samples.

Use installation

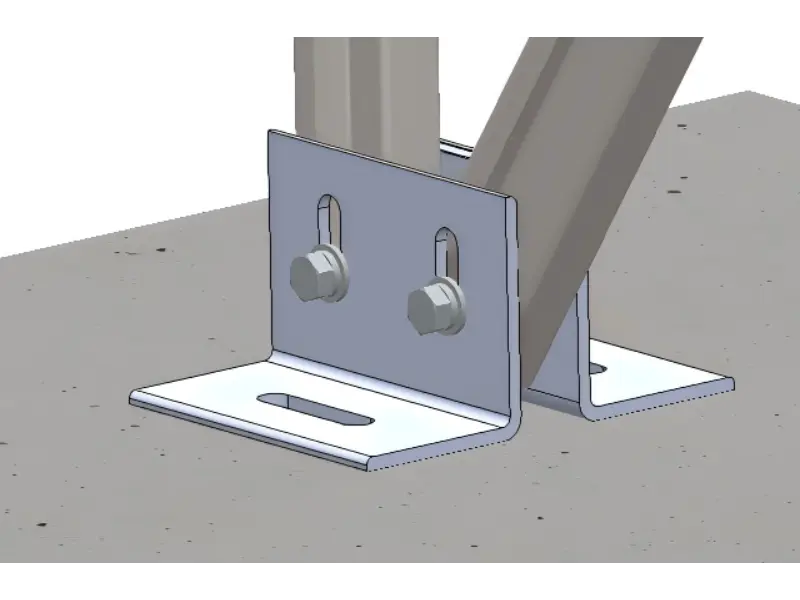

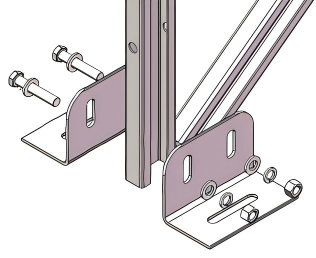

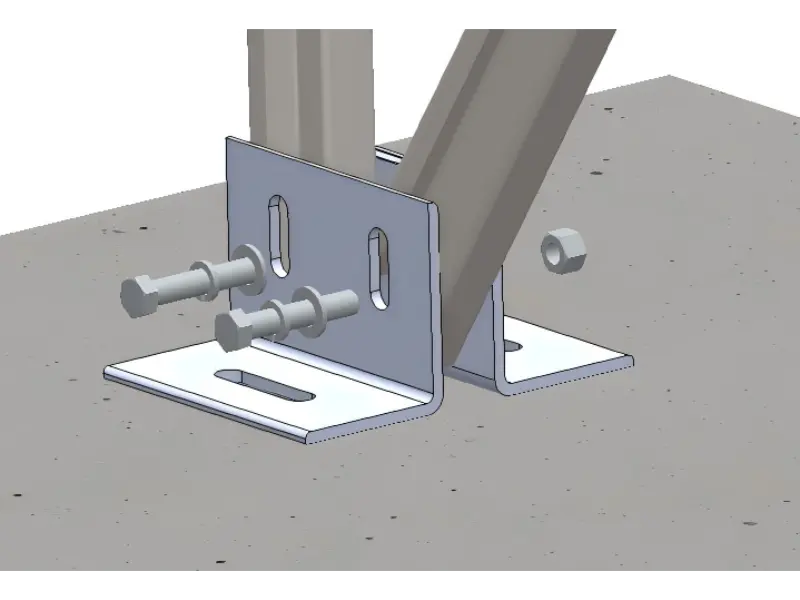

The installation process of Double Hole Solar Steel Base is straightforward. All components include two brackets and two M10*85 bolts. The only tool required is a screwdriver. To install, locate a vertical post and a diagonal brace, position them as close together as possible, then place the brackets on either side. Secure them by threading the bolts through and tightening them to complete the installation.

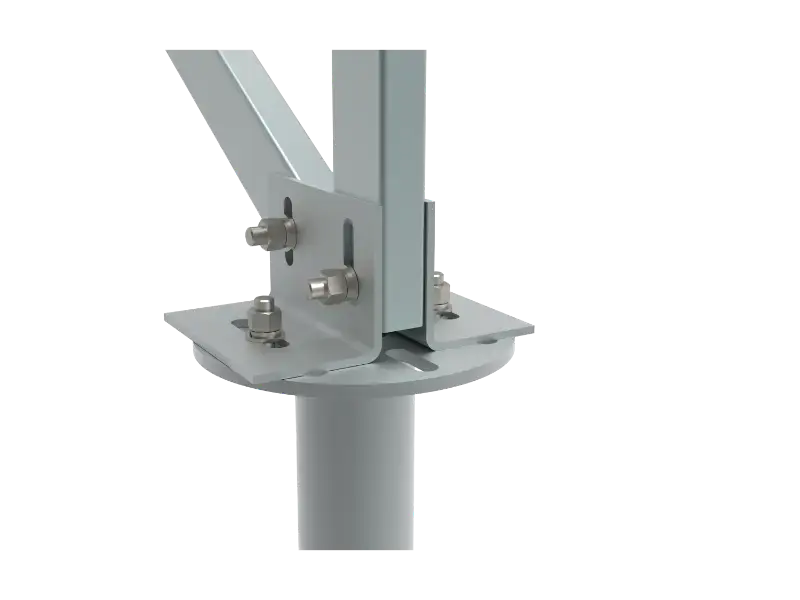

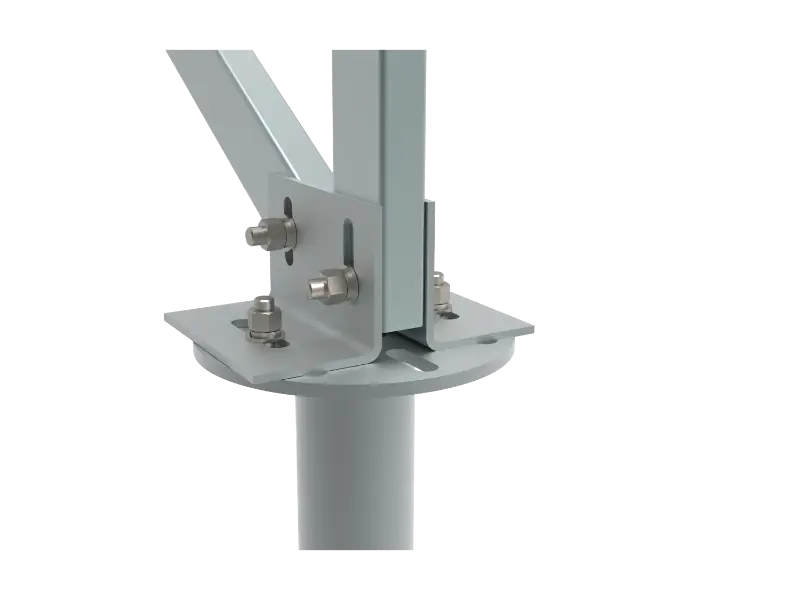

After installing Double Hole Solar Steel Mount Base onto the pre-assembled bracket, it must be mounted onto the ground anchor. During installation, first lift the entire pre-assembled bracket and align the base's holes with the ground anchor's holes. Since the holes on the base's underside are elongated slots, misalignment cannot occur. Then secure it with bolts to complete the installation.

Double Hole Steel Solar Mount Base does not necessarily require ground anchors to function as a stable base and is also utilized in the foundations of many photovoltaic carport projects. In photovoltaic carport installations, it is typically embedded with pre-installed bolts underground, enhancing the overall foundation stability. It is then secured to these bolts, with subsequent installation steps proceeding as usual.
