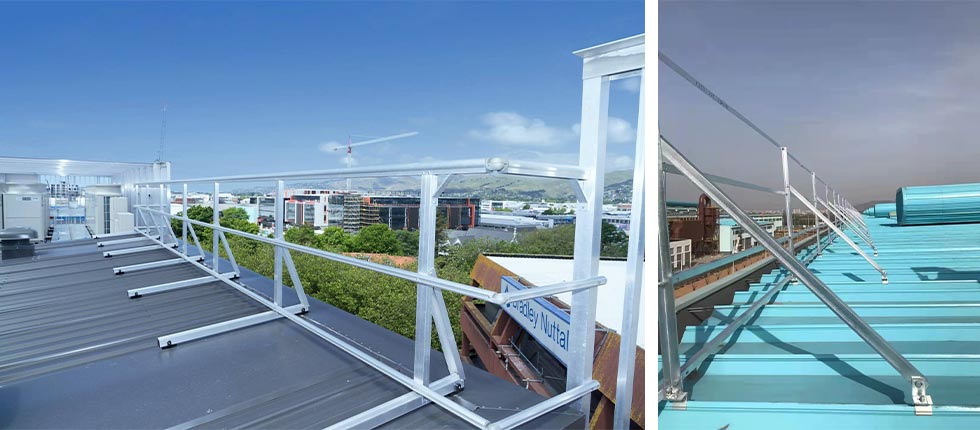

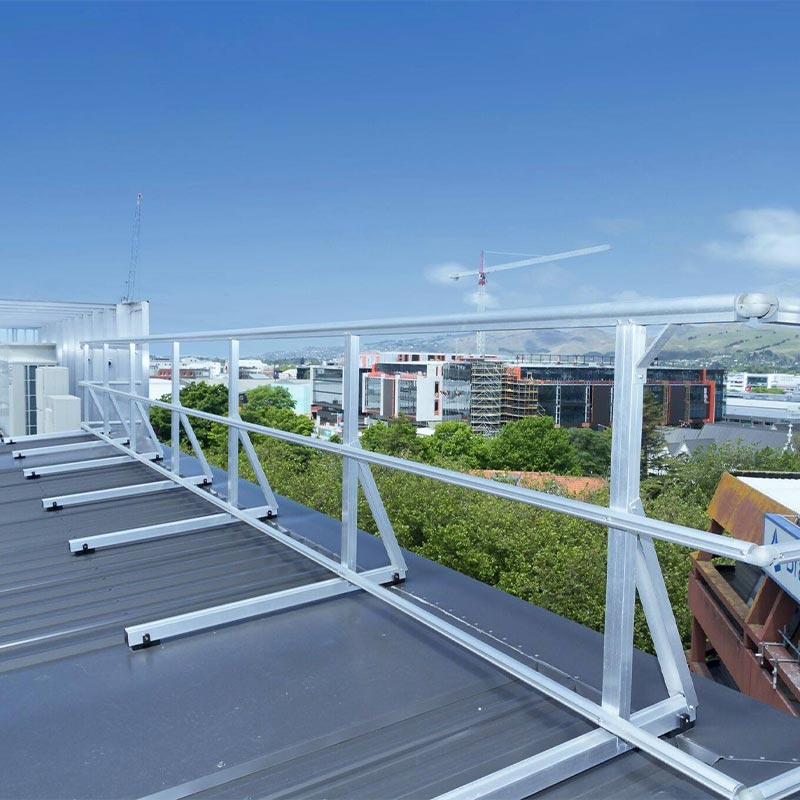

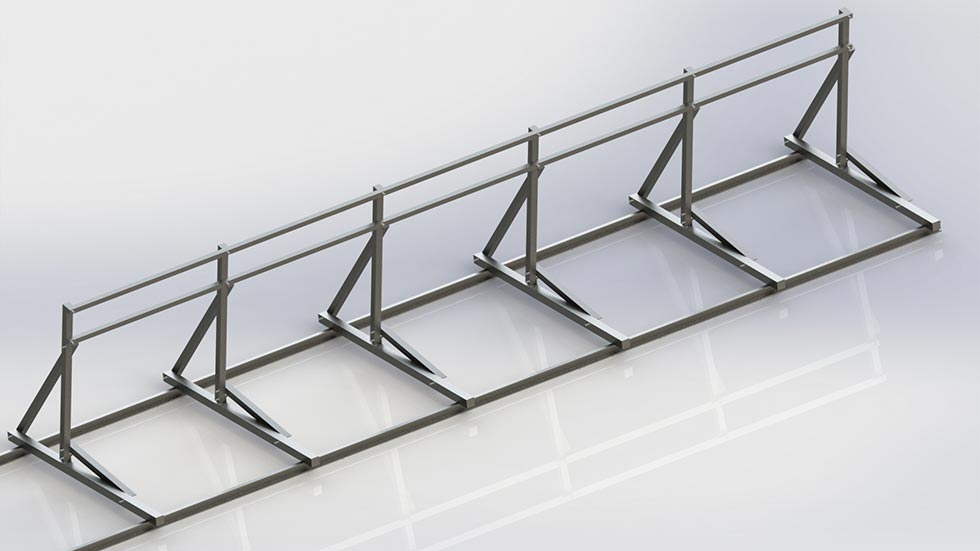

Roof Hand Rail
Roof Hand Rail represent a specialized line of safety solutions engineered and produced by Honor Energy. These systems function as essential protective elements integrated into the uppermost perimeter of a structure. Their primary role is to deliver reliable stability and safeguard for individuals conducting tasks, routine upkeep, or responding to emergencies on elevated rooftop areas. As such, they constitute a fundamental part of comprehensive fall-protection and safety infrastructure. Typically installed along roof edges, around skylights, on both sides of access walkways, or at junctions between different roof levels, they form a continuous, reliable barrier.
Honor Energy is a solar mounting system manufacturer and produce everything related to solar system including Roof Hand Rail. Standing as a quiet but steadfast guardian against falls, the roof handrail embodies a philosophy where utility and security converge. To the eye, it appears as a crisp and unbroken line traced across the high points of a building—a composition of upright stanchions and level rails that follow the silhouette of eaves, circle glazed openings, and mark out prescribed access routes.
Functional Levels of Roof Guardrail Systems
| Functional Level | Application Scenarios | Key Parameter Requirements |
| Residential Level | Residential terraces, villa rooftops | Height ≥ 1100mm; Load ≥ 1.0 kN/m; Clear spacing between vertical members ≤ 110mm |
| Public Building Level | Commercial rooftops, schools, hospitals | Height ≥ 1200mm; Load ≥ 1.5 kN/m; Clear spacing ≤ 110mm; Anti-climb design |
| Industrial Level | Factories, warehouses, equipment platforms | Height ≥ 1200mm; Load ≥ 2.0 kN/m; Clear spacing ≤ 100mm; Impact-resistant design |
| Fall Protection Level | High-altitude work zones, high-risk edge areas | Height ≥ 1500mm; Double mid-rails + toe board; Load ≥ 2.5 kN/m; Pass drop test |

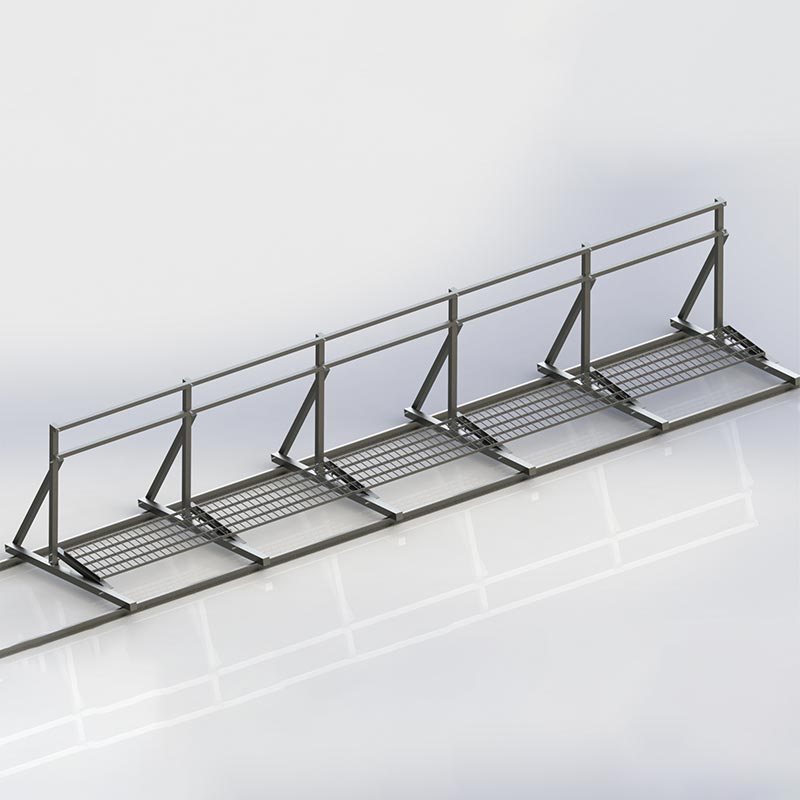

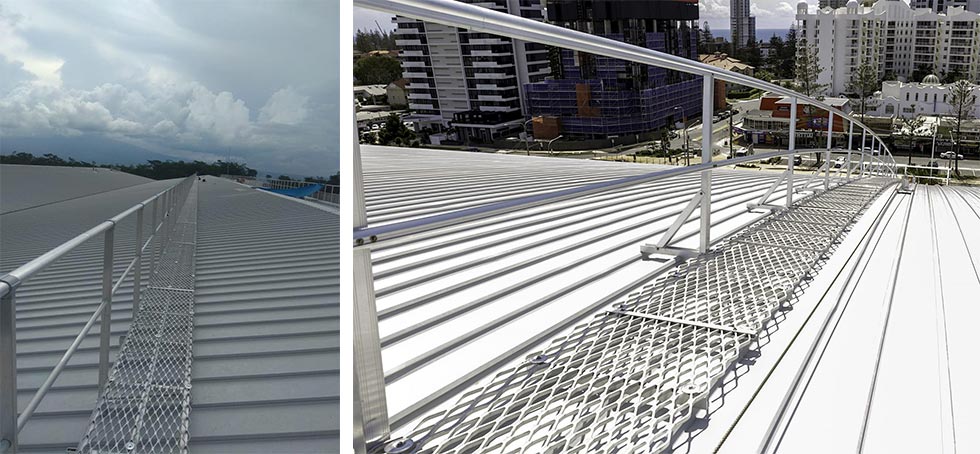

Roof Safety System
When roof handrail systems with walkway systems, they transcend isolated safety features to form a comprehensive high-altitude safety ecosystem. The handrails establish clear, authoritative safety boundaries for the walkway. Providing clear and secure pathways, these handrails allow personnel to navigate elevated areas with assurance. The constant availability of a solid grip transforms movement overhead, minimizing the danger of accidents from slipping or instability. More than physical prevention, this reliable support alleviates the deep-seated unease associated with height, fostering a calmer state of mind that sharpens concentration and improves overall task performance.

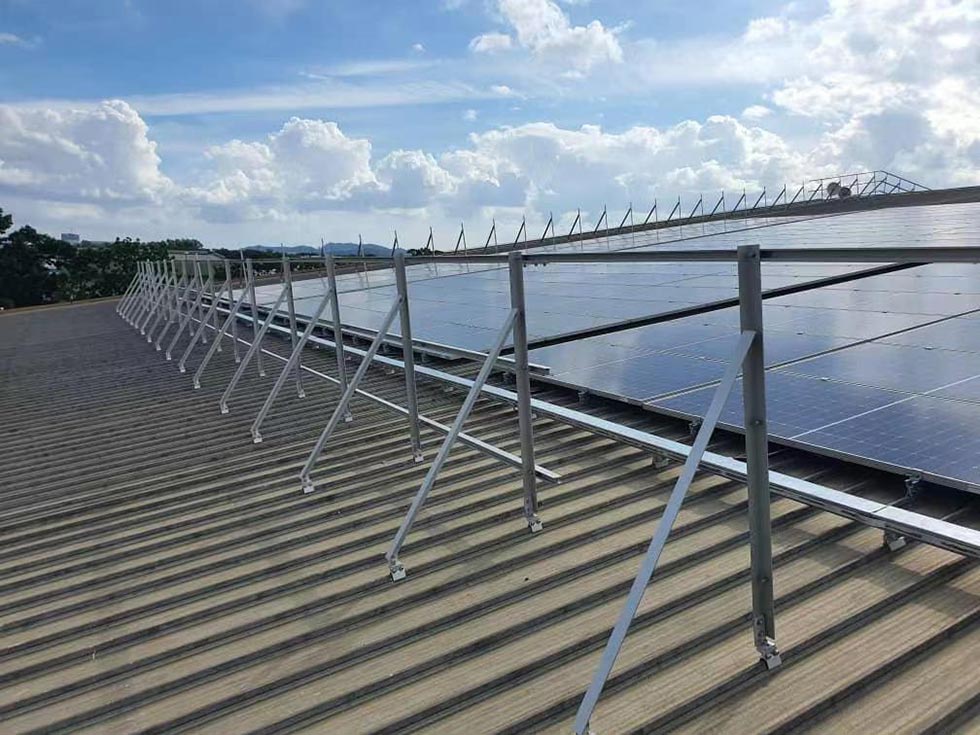

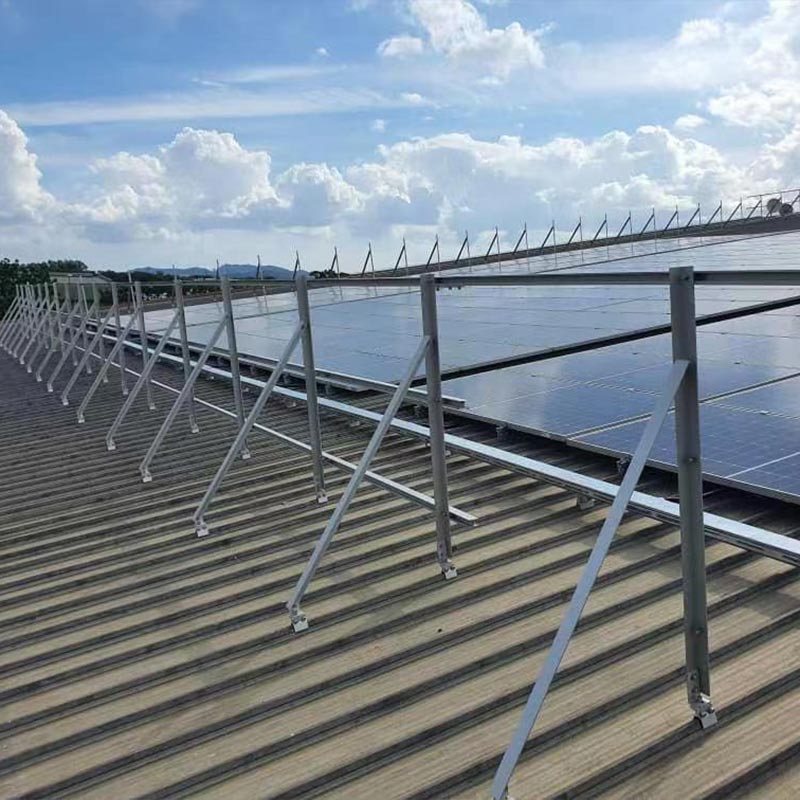

Safety Roof Solar System
Roof railing systems are no longer merely peripheral protective structures but transform into safety lifelines spanning the entire solar panel area. They provide stable, reliable pathways and operational support for installation, cleaning, and maintenance personnel. Every inspection between densely packed PV modules, every panel wipe, and every joint check can be performed within an absolute safety perimeter.
FAQ
1.Does temporary roof safety railing’s installation require drilling holes in my roof? Will it damage the waterproofing?
Drilling is required, but there's no need to worry about waterproofing, as rubber gaskets will be installed at the joints to ensure excellent waterproof performance.
2.What is the weight? Can my roof structure support it?
No need to worry about your roof's load-bearing capacity—our professional team will assess it for you.
3.What is the warranty period?
It comes with a 15-year warranty and typically has a 25-year service life.
