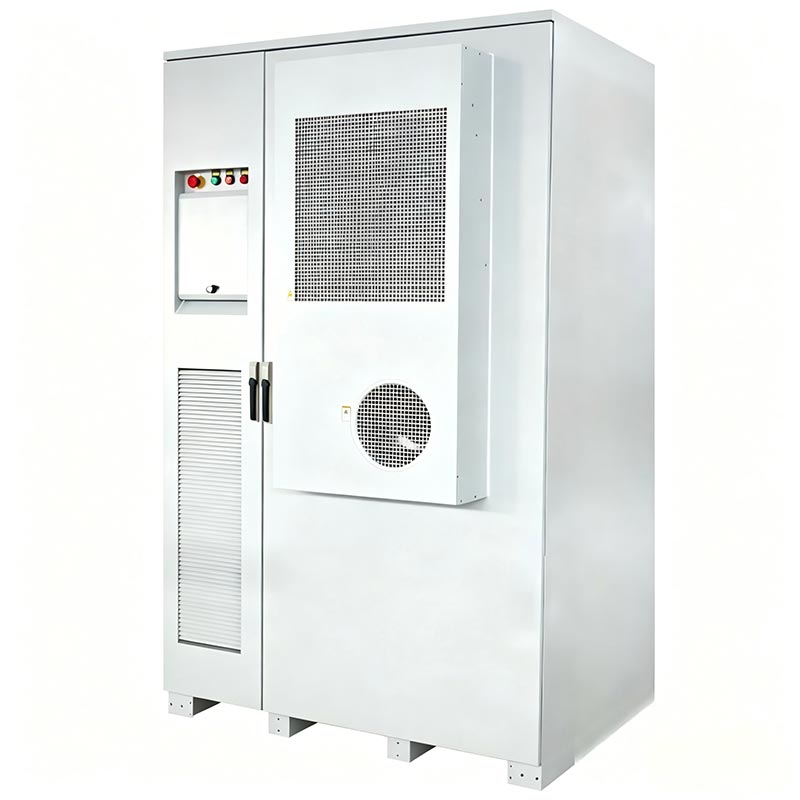

Integrated Lithium Iron Phosphate Battery Energy Storage Cabinet
This Integrated Lithium Iron Phosphate Battery Energy Storage Cabinet is fully assembled in China. It integrates battery clusters, PCS, BMS, EMS, cooling and fire protection systems. It is widely used in industrial and commercial energy storage, backup power, renewable energy integration and microgrid projects.
LFP cells from first‑tier manufacturers
Core Features
LFP cells from first‑tier manufacturers
Integrated lithium iron phosphate battery energy storage cabinet intelligent air cooling for long system life and stable operation
Triple electrical protection: relay, fuse, circuit breaker
Two‑level BMS with multi‑point monitoring and hierarchical linkage
Cells with thin‑film explosion‑proof valve
Default heptafluoropropane / perfluorohexone fire suppression system
High energy density, stable performance, long service life
100kW 215kWh energy storage system modular design for easy maintenance, management and expansion
Integrated pre‑commissioned system for fast on‑site deployment
High‑precision active cell balancing
LFP battery balancing accuracy < 2%
Real‑time voltage, temperature and status monitoring
Industrial and commercial energy storage compact size and light weight, saving space and installation cost
Long cycle life and low failure rate, reducing O&M cost
Remaining capacity > 70% (>150kWh) after 10 years
System Composition
- Battery Cluster: Series‑parallel LFP battery modules
- BMS (Battery Management System): Cell monitoring, balancing and protection
- EMS (Energy Management System): Operation monitoring, strategy control, data recording
- PCS (Power Conversion System): Bidirectional AC‑DC conversion
- Auxiliary Systems: Cooling, fire protection, power distribution, insulation detection
Key Parameters
| Rated Power | 100kW |
| Rated Energy | 215kWh |
| System Configuration | 768V 280Ah lithium battery energy storage system |
| Operating Voltage | DC 672V ~ 876V (cell: 2.8V ~ 3.65V) |
| DC Channels | 1 |
| Rated Frequency | 50Hz/60Hz ±2Hz |
| Power Factor | 1 |
| Current Distortion | ≤3% |
| System Efficiency | ≥87% |
| Design Life | 10 years (based on 2 cycles per day) |
| Remaining Capacity after 10 Years | >150kWh (70%) |
| Operating Temperature | -20°C ~ 55°C (derating above 45°C) |
| Cell Type | 3.2V 280Ah LFP, square aluminum case |
| Battery Module | 51.2V 280Ah (16S1P), built‑in BMU |
| Max Continuous Discharge | 140A (0.5C) |
| Cooling | Intelligent air cooling |
| Fire Fighting | Heptafluoropropane (default) / Perfluorohexone |
| Protection | Input anti‑reverse, output overcurrent, overvoltage, insulation detection |
Core Advantages
- Safe and Reliable
- Efficient and Convenient
- Active Equalization
- Cost Optimization
Application Scenarios
- Industrial & commercial peak shaving and valley filling
- User‑side backup power supply
- Wind and solar energy storage, peak regulation and frequency modulation
- Microgrid system
