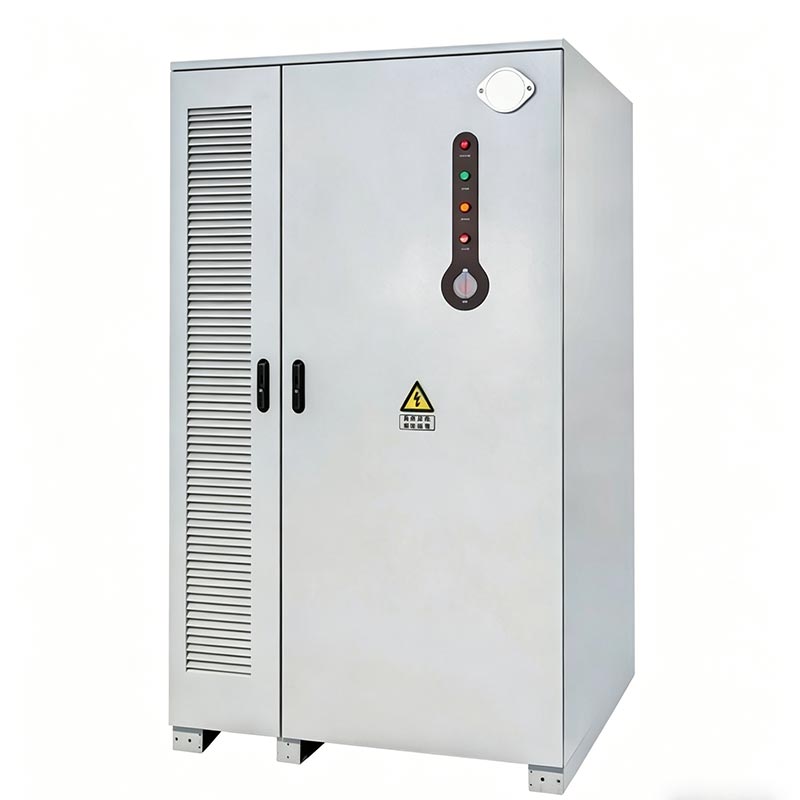

Outdoor liquid cooling lithium battery energy storage system

The Outdoor liquid cooling lithium battery energy storage system: LFP 3.2V 314Ah

System nominal voltage: 1331.2V

Rated charge/discharge current: 157A

Operating power: ≤0.5P

Thermal management: Liquid cooling (5kW)

Cooling medium: 50% glycol aqueous solution

Protection degree: IP54

Operating humidity: 0~95% RH (non-condensing)

Communication: RS485 / Ethernet / CAN

Dimension: 1300×1350×2305 mm

Weight: 3800kg

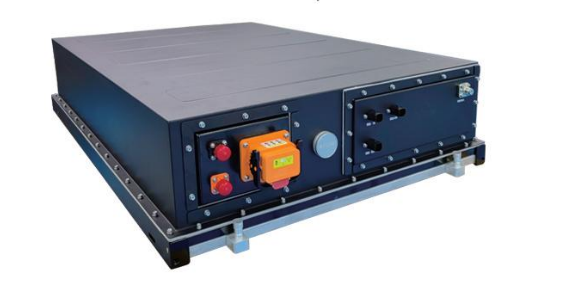

Battery Module Parameters

Configuration: 52S1P

Nominal voltage: 166.4V

Built-in BMU and MSD fast fuse

Protection degree: IP65

Operating temperature: Discharge -20~50℃, Charge 0~50℃

High Safety Outdoor Energy Storage System

High Safety Outdoor Energy Storage System

The liquid-cooling energy storage all-in-one machine of cell type use premium LFP battery cells with high thermal stability and safety performance

Dual-level BMS for real-time monitoring of cell voltage and temperature

PACK-level fire protection: composite detection, spray system and single-zone explosion venting valve

Three-level electrical protection: relays, fuses and circuit breakers

Outdoor cabinet with C4/C5 corrosion resistance and IP54 protection for harsh environments

Efficient Liquid-Cooling Thermal Management

5kW liquid-cooling capacity with 50% glycol aqueous solution

2A active balancing with accuracy ≤2% to improve cell consistency

Stable charge/discharge performance, supports 0.5P continuous operation

Better temperature uniformity than air cooling, slower degradation and longer cycle life

Fast Deployment & Plug-and-Play

Side-by-side multiple cabinets for fast on-site installation

Compatible with string-type PCS and inverter-booster cabinets

Modular integrated design, pre-commissioned before delivery

Compact structure saves space and reduces installation costs

Smart Operation & Maintenance

LFP battery energy storage multiple communication interfaces: RS485 / Ethernet / CAN

Supports remote monitoring, data analysis and fault alarm

Easy maintenance, capacity expansion and on-site management

Low failure rate reduces long-term O&M expenses

Application Scenarios

• C&I Energy Storage: Peak shaving for factories, parks and shopping malls
• Solar Plus Storage: Improve self-consumption rate for PV power stations
• Wind Plus Storage: Smooth output and enhance grid stability
• Microgrid Energy Storage: Off-grid/on-grid power for islands, mining areas
• Backup Power: Uninterrupted supply for data centers, hospitals, base stations
• Grid Services: Frequency regulation, peak load shaving, demand response

Why Choose Us

• Professional liquid-cooling technology for longer system lifetime
• Full-chain safety design and strict environmental testing compliance
• All-in-one outdoor cabinet, fast installation and high ROI
• Smart monitoring platform for easy and efficient O&M
• Customizable capacity, voltage and communication protocols
