Mini -Rail Quick-Install Solar Mounting System

Premium Raw-Material Standard for Long-Term Outdoor Service

Every piece of the Mini -Rail Quick-Install Solar Mounting System from supplier Xiamen Honor Energy strictly adopts aerospace-grade 6005-T5 aluminium alloy as its main profile, which receives double-layer anodized anti-corrosion treatment. This industrial-level surface treatment brings multiple practical merits:

Structure and Materials

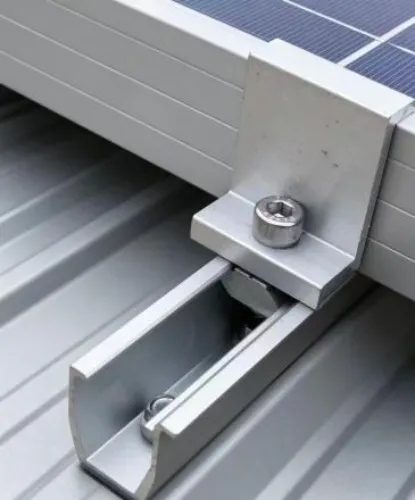

Main-body profile: 6005-T5 aluminum alloy with anodized anti-corrosion treatment. Its U-shaped rail groove is perfectly matched with the quick-install clamps shown in the previous picture.

Bottom fasteners: Equipped with stainless-steel self-tapping screws and EPDM waterproof rubber gaskets. The brackets can be fastened directly onto the color-steel tile surface without damaging the original roof waterproof layer.

Standard available lengths: 120 mm, 150 mm,etc Custom-sized lengths are supported upon request.

Key Design Advantages

1. Light-Weight Structure and Lower Costs

Traditional 4-meter-long full-size aluminum guide rails consume excessive raw-material aluminium and bring heavy shipping loads. Our Mini-Rail Quick-Install Solar Mounting System adopts single-point support design. It cuts aluminium consumption by almost 60 %.

2. Ultra-Fast On-Site Installation

A single worker can finish high-altitude mounting work. You only need to lock the short rails with self-tapping screws. When cooperating with matched quick-release clamps, solar panels can be snapped straight into the rail groove in place, and pre-threaded bolt positioning is no longer necessary. Each short rail can be adjusted separately to adapt to roof slopes and purlin spacing deviations.

3. Non-Destructive and Waterproof Roof-Mounting Solution

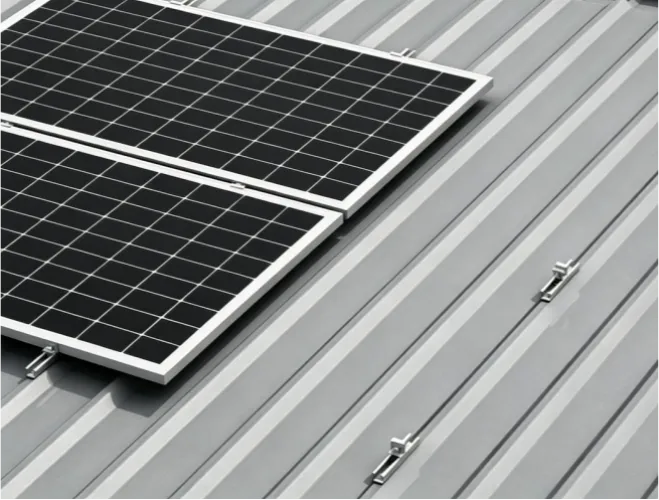

The full-length bottom rubber gasket fully covers every screw hole to stop rainwater leakage through drilled openings. This Mini-Rail Quick-Install Solar Mounting System fits multiple types of metal rooftops, including standing-seam roofs, angular-lock tiles and trapezoidal color-steel sheets for factory buildings.

4. Wide Compatibility

The rail features a standard 40-millimetre opening groove. It works with mainstream solar-panel mid-clamps and end-clamps available on the global market, and suits photovoltaic module frames ranging from 30 mm to 40 mm in thickness.

How to install the Mini-Rail Quick-Install Solar Mounting System

Assembly of the mini U-shaped short rail is straightforward. Drive self-tapping screws into the rooftop to fasten the rail, then slide the mid-clamps or side-clamps into the rail and secure the solar panels.

Sample inspection

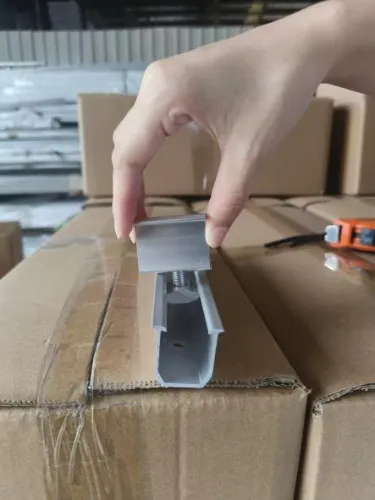

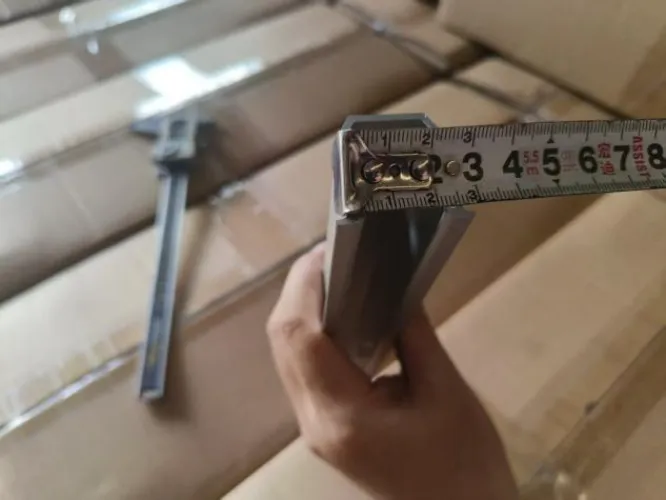

We will conduct trial-assembly for products before delivery and check all dimensions strictly.

Xiamen Honor Energy will provide you with professional guidance, accurate quotations and reliable-quality products.
