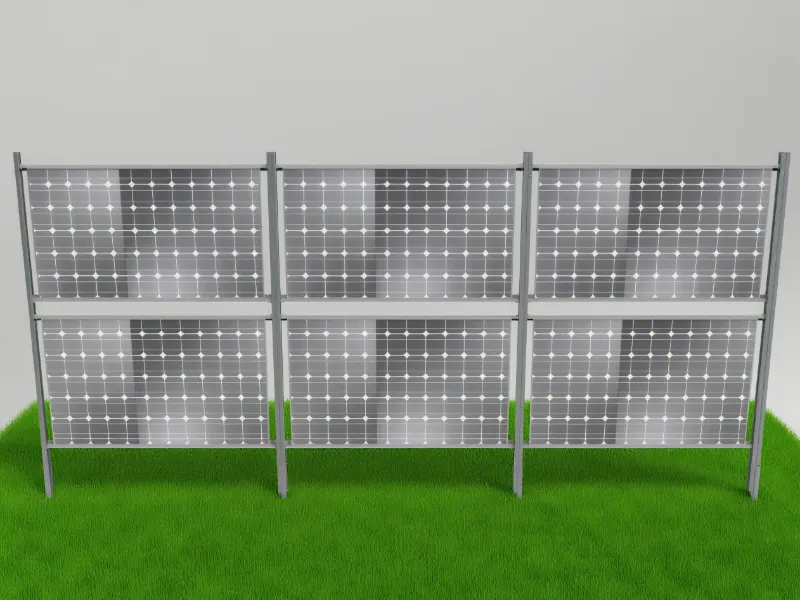

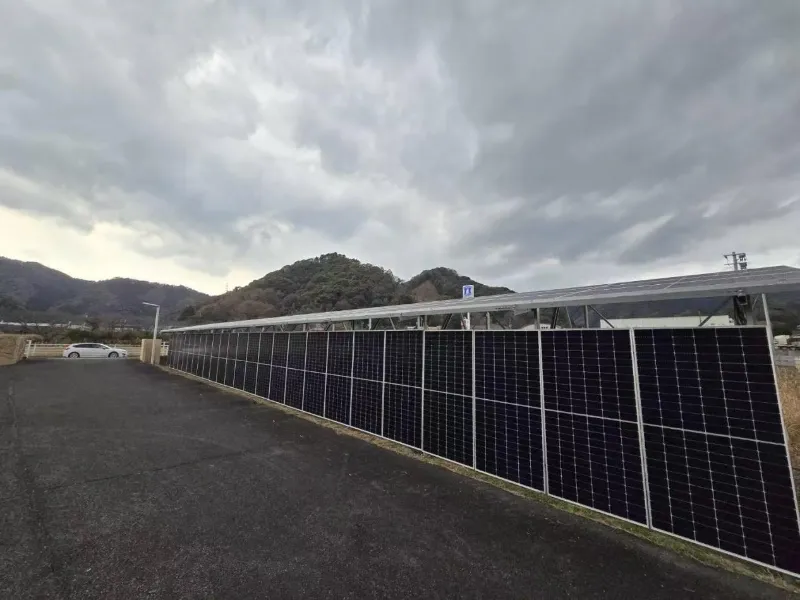

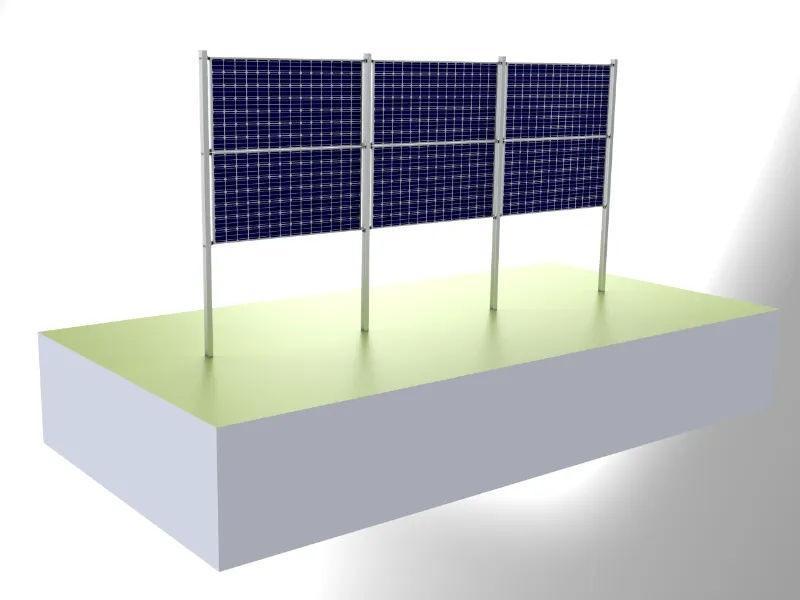

Vertical Solar Carbon Steel Mounting

The cost-effective vertical solar carbon steel mounting is a vertical support structure mainly made of carbon steel, which is often used for the fixation and installation of outdoor equipment, such as photovoltaic panels, surveillance cameras, sensors and other small to medium-sized devices.

The core feature of the Vertical Solar Fence Ground Rack Solar Farm Mounting System lies in its simple structure. It mostly adopts a single-column design. The columns are usually made of square or circular carbon steel pipes, and the overall occupied ground space is small. It works well in tight spaces like rooftop edges, green belts, and along roadsides. Plus, it doesn't stand out much, so it doesn't mess with how the area looks.

In terms of performance, the carbon steel material endows it with high strength and load-bearing capacity. This single-pole setup can hold several hundred kilos. That means it’s strong enough for most small and medium outdoor gear. At the same time, it is also relatively inexpensive: compared with materials like stainless steel, carbon steel has a lower raw material cost, is less difficult to process, suitable for mass production, and can reduce the overall installation cost of the project.

In terms of installation and adaptability, the components of the Vertical Solar Ground Mounting System have a high degree of standardization, the on-site assembly process is simple, and complex construction equipment is not required. What’s more, you can adjust it a bit based on how flat the ground is. That way, it works on all sorts of surfaces—like gentle slopes, hard ground, or grass.

Overall, the Bifacial Solar Panel Fence Vertical Mounting Bracket is widely used in the field of outdoor equipment support due to its advantages, such as simple structure, space-saving, convenient installation, and low cost.

Advantages

It’s solid stuff—tough, can take a heavy load, and doesn’t budge even when it’s windy or snowy.

Simple to set up: All parts are standard, putting it together is easy, and you don’t need any fancy tools.

Fits lots of places: Works on all kinds of ground—hard surfaces, slopes, grass, you name it.

Can be tweaked: You can change the size and design to match what the equipment needs and the surrounding area.

Certification

As a specialized photovoltaic mounting (rack) system company, we hold professional certifications including CE, JIS, and TUV, which qualify us to export our products to countries around the world.

The special Vertical Solar Carbon Steel Mounting

Our advantage is that we are not only capable of designing vertical solar brackets but also integrating vertical bracket structures with solar carports. We can customize complex structural designs to meet customers’ diverse project requirements.

Installation

1. Site Preparation

1) Clear debris on-site; mark each pole position strictly according to the layout drawing.

2) Choose foundation type: concrete base or ground screw.

3) Required tools: spirit level, torque wrench, measuring tape, installation driver.

2. Foundation Work

Concrete Base Dig pits, embed anchor bolts and pour concrete, allowing sufficient curing time.

3. Install Upright Poles

1) Fix vertical poles onto base flange plates.

2) Adjust poles to be perfectly vertical by spirit level, and tighten bolts.

4. Assemble Horizontal Rails

Mount upper & lower cross rails to connect adjacent upright poles and form a stable frame.

5. Solar Panel Installation

1) Prepare end clamps & mid clamps.

2) Install solar panels vertically in two rows, and fasten panels with clamps.

6. Final Inspection

1) Double-check all uprights are plumb.

2) Retighten all fasteners.

3) Test overall stability to avoid shaking.

FAQ

1. Why is carbon steel used instead of other materials for this kind of bracket?

A: Carbon steel raw material cost is lower than stainless steel and aluminum alloy, the processing difficulty is small, and the strength and bearing capacity can satisfy the needs of most, and it is more cost-effective and suitable for bulk.

2. Are there any requirements for the terrain during installation?

A: Adaptability is stronger on a flat, hard court with a mild slope gradient (generally within 5°); the grass can be installed, such as on soft ground by concrete foundation reinforcement, but only if there is too much relief or geological soft ground treatment first.

3. How is the load-bearing capacity of the Vertical Structures Solar Racking System?

A: Carbon steel yield strength and tensile strength are higher; a single-column structure can withstand hundreds of kilograms of weight, usually enough to meet the majority of small and medium-sized bearing requirements of outdoor equipment.

4. Can the bracket be adjusted according to actual needs?

A: Yes, column diameter and length of beam can be customized according to the equipment such as anticorrosive processing size, installation height, load-bearing requirements and local climate (such as wind and snow), to fit different scenarios.
