Balcony Mounting

Xiamen Honor Energy manufactures solar mounting systems and components for different photovoltaic installation environments, with quality management supported by ISO 9001 and relevant product and market compliance requirements.

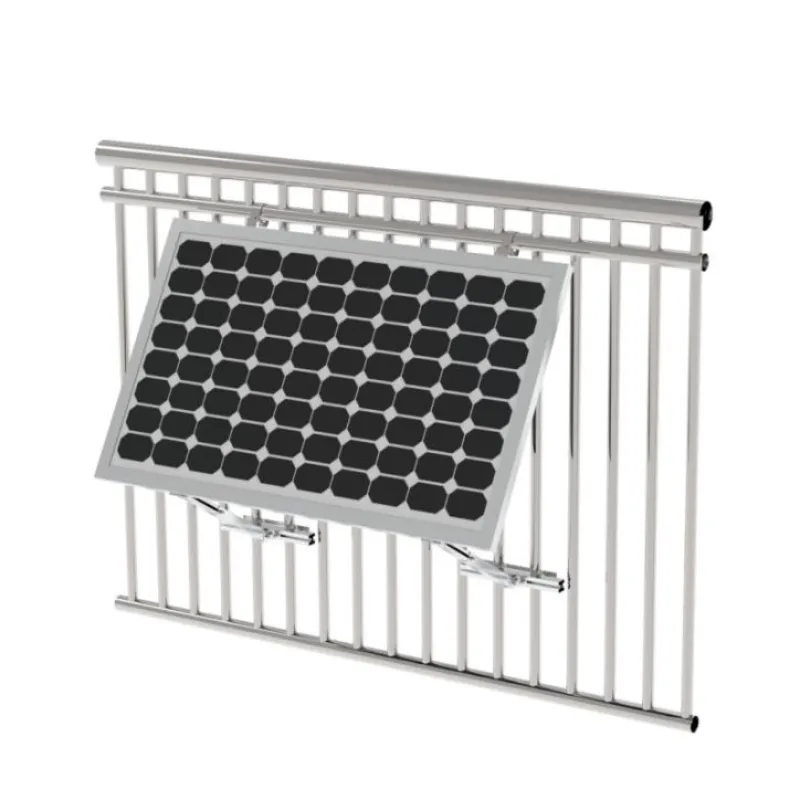

The Balcony Mounting is designed for PV installations where a conventional rooftop mounting structure is not practical. Its clamp-on configuration connects the solar panel mounting structure to a compatible balcony railing, avoiding the need to drill into the railing during installation.

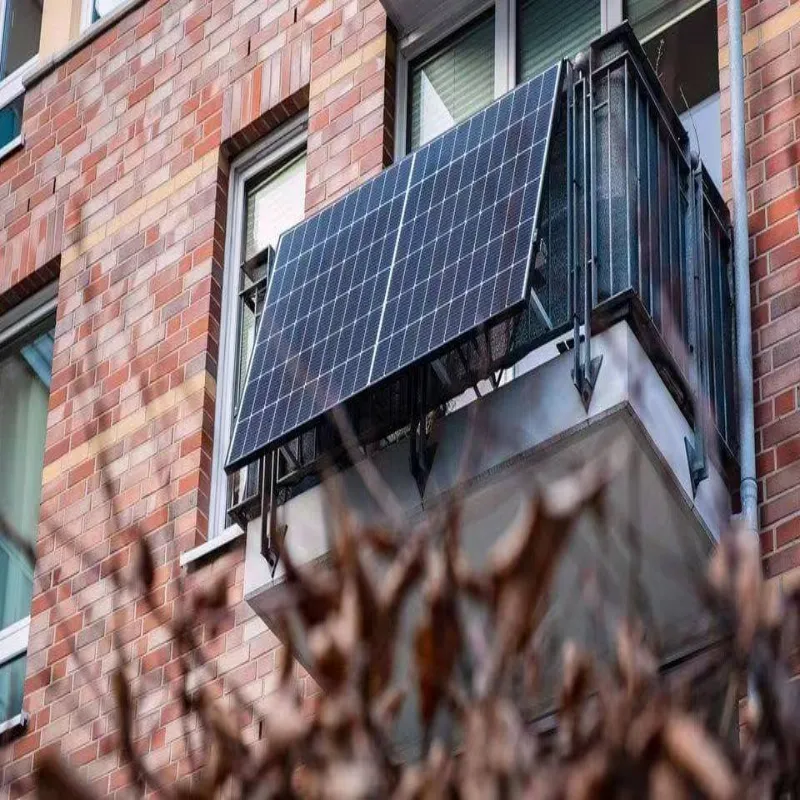

This configuration is particularly suitable for balcony and terrace installations where available mounting space is limited or permanent drilling is undesirable. Installation suitability should be confirmed according to the railing structure, PV module specifications, site conditions, and applicable local requirements.

Features

Clamp-On Installation

The mounting structure attaches directly to compatible balcony railings without drilling into the railing. This reduces structural modification work during installation and provides a mounting option for balconies where conventional roof mounting is unavailable or unsuitable.

The system is designed for railing diameters of up to 52 mm, subject to the actual railing profile and mounting configuration.

Adjustable Tilt Angle

The mounting system provides an adjustable tilt range of 15° to 30°. The angle can be selected according to the balcony orientation, module arrangement, available space, and installation conditions.

The adjustable structure also allows the panel position to be modified when the installation requirements change.

AL6005-T5 Aluminum and SUS304 Stainless Steel

The main mounting structure uses AL6005-T5 aluminum, while SUS304 stainless steel is used for specified components and fasteners.

The combination provides a lightweight aluminum mounting structure with stainless-steel components selected for outdoor PV mounting applications. The materials are suitable for long-term exposure to normal outdoor conditions, subject to the environmental conditions of the installation site.

Compatible with 30–35 mm Framed Solar Panels

The Balcony Solar Mount is designed for framed solar panels with 30–35 mm frame thickness.

Panel frame thickness is an important compatibility parameter, but final compatibility should also consider the module dimensions, frame profile, weight, and mounting configuration. For project applications, Xiamen Honor Energy can review the relevant panel and railing dimensions before production.

Compact Use of Balcony Space

The mounting structure is designed around the existing balcony railing, allowing PV modules to be installed without using a conventional rooftop mounting structure.

This makes it suitable for balconies, terraces, patios, and other limited-space photovoltaic applications. The final module arrangement depends on the available railing length, balcony layout, module dimensions, and applicable structural requirements.

20+ Year Designed Service Life

The Balcony Solar Mount has a designed service life of more than 20 years.

The product combines AL6005-T5 aluminum and SUS304 stainless steel with a mounting structure designed for long-term outdoor photovoltaic applications. Xiamen Honor Energy provides a 10-year warranty, subject to the applicable warranty terms and conditions.

Technical Specifications

FAQ:

Q1: Does this mount require drilling into the balcony railing?

No. The Xiamen Honor Energy Balcony Solar Mount uses a clamp-on configuration that attaches to compatible balcony railings without drilling into the railing. The railing structure and local installation requirements should be checked before installation.

Q2: What solar panels are compatible with this balcony mount?

The mount is designed for framed solar panels with 30–35 mm frame thickness. Final compatibility should also be confirmed based on panel dimensions, frame profile, weight, and mounting configuration.

Q3: What railing sizes are compatible with the mounting system?

The specified railing compatibility is up to 52 mm in diameter. Actual compatibility depends on the railing profile, geometry, available mounting space, and clamp configuration.

Q4: What tilt angle can be adjusted?

The mounting system provides an adjustable tilt range of 15° to 30°. The appropriate angle depends on the balcony orientation, panel arrangement, shading conditions, and site requirements.

Q5: What materials are used for the the Solar Mount?

The main mounting structure uses AL6005-T5 aluminum and SUS304 stainless steel. These materials are selected for the structural and outdoor requirements of the mounting system.

Q6: Can you check compatibility before production?

Yes. Xiamen Honor Energy can review the relevant PV module specifications, module frame dimensions, railing dimensions, and project drawings to determine whether the standard mounting configuration is suitable.

Factory & Quality Control

Xiamen Honor Energy manufactures solar mounting components through controlled production and inspection processes covering material inspection, forming or machining, surface treatment, assembly, and final verification.

Quality control focuses on:

Material and dimensional control help maintain consistency between the mounting components and their intended PV installation configuration.

For project orders, product specifications and mounting requirements can be reviewed according to the applicable module, railing, and installation conditions.

Packaging options include export wooden pallets and steel pallets, with the packaging method selected according to component dimensions, quantities, and transportation requirements.

Certifications

Xiamen Honor Energy operates under an ISO 9001 quality management system for its manufacturing activities.

Relevant product and market requirements include:

· ISO 9001 Quality Management System

· CE-related compliance requirements

· JIS-related requirements, where applicable

The applicable compliance documentation depends on the product configuration, installation application, and destination market.
