Solar Mounting L-Foot

We've been in the solar mounting business for years, and here at Xiamen Honor Energy. The surface of Solar Mounting L-Foot is treated with anodizing to improve oxidation resistance and outdoor durability. With its compact L-shaped structure, the PV L foot provides a stable connection between solar rails and supporting structures. It is compatible with common solar mounting rails, including 41×41 mm and 41×62 mm profiles, and is widely used in metal roof systems, concrete roof installations, and ground-mounted solar mounting structures.

Solar Mounting L Foot Structure

The PV L foot is a right-angle bracket used in solar mounting systems to connect photovoltaic rails with supporting structures. It transfers mechanical loads from solar modules and rails to the roof or foundation.

The typical load path is:

Solar Module → Rail → L Foot → Roof Structure / Foundation

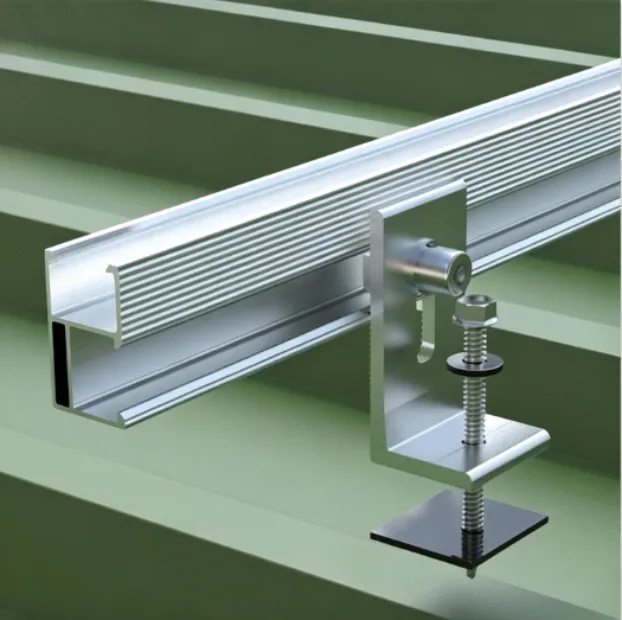

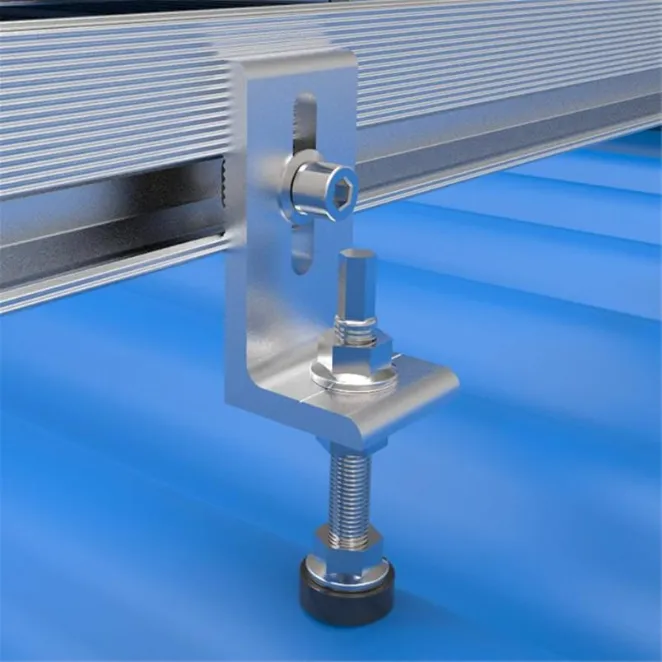

The horizontal base is fixed to the supporting surface, while the vertical section connects with the solar rail through bolts. The slotted design allows positioning adjustment during installation, improving rail alignment and compatibility with different roof conditions.

Material and Surface Treatment

6005-T5 Aluminum Alloy

Solar mounting L feet are mainly manufactured from 6005-T5 aluminum alloy, which offers a balance of strength, lightweight design, and corrosion resistance.

The anodized surface forms a protective oxide layer that improves resistance against moisture, oxidation, and outdoor environmental exposure. For applications in coastal or highly corrosive environments, stainless steel alternatives can be selected according to project requirements.

Product Features

Adjustable Connection Design

The integrated slot design allows flexible positioning between the L foot and solar rail, helping maintain alignment across different mounting structures.

Lightweight Aluminum Construction

The aluminum alloy structure reduces component weight while maintaining the mechanical strength required for photovoltaic mounting applications. This makes it suitable for large-scale solar projects where component weight and installation efficiency are important considerations.

Rail Compatibility

Solar mounting L feet are compatible with commonly used PV rail profiles, including:

· 41×41 mm aluminum rails

· 41×62 mm aluminum rails

· Customized rail systems

Performance Characteristics

Structural Load Support

The load performance of a solar mounting L foot depends on material grade, thickness, dimensions, fixing method, and system design.

Typical PV mounting systems using L feet are designed for applications with wind speeds up to 60 m/s and snow loads around 1.4-1.5 kN/m². Actual performance depends on project-specific structural calculations and environmental conditions.

Corrosion Resistance

The combination of anodized aluminum and stainless steel fasteners provides corrosion resistance for long-term outdoor photovoltaic applications. Proper material selection helps reduce corrosion risks caused by environmental exposure and metal compatibility issues.

Manufacturing Process

Solar mounting L feet are manufactured through processes including stamping, extrusion processing, and CNC machining.

For standard high-volume production, stamping provides consistent dimensions and efficient manufacturing. CNC machining is used for customized designs, special dimensions, and low-volume requirements.

Manufacturing quality focuses on:

· Dimensional accuracy

· Slot and hole precision

· Surface treatment consistency

· Structural integrity

The anodizing process improves the surface performance of aluminum components by enhancing hardness, corrosion resistance, and weather resistance.

Applications

Metal Roof Solar Systems

Solar mounting L feet are widely used on trapezoidal and corrugated metal roofs. Their compact structure allows PV rails to be connected directly to roof supporting structures using suitable fasteners.

Standing Seam Roof Systems

For standing seam roofs, L feet can be combined with roof clamps to provide a rail connection without directly penetrating the roof surface.

Concrete Roof Systems

On concrete roofs, L feet can be installed with suitable mounting bases or anchors to connect PV rails and support solar modules.

Ground-Mounted Solar Structures

Solar Mounting L-Foot can also be used in ground-mounted solar systems where adjustable rail connections and compact mounting components are required.

How to Select Solar Mounting L-Feet

Material Selection

For standard photovoltaic applications, 6005-T5 aluminum alloy with anodized treatment is commonly selected due to its strength-to-weight ratio and corrosion resistance.

For coastal areas, industrial environments, or locations with higher corrosion exposure, stainless steel or other corrosion-resistant materials may be selected.

Thickness Selection

The final thickness should be selected according to system load requirements, roof conditions, and mounting design.

Dimension Selection

The L foot dimensions should match the solar rail system and installation structure. Important parameters include base size, vertical height, slot position, and mounting hole design.

Customized dimensions can be developed according to different solar mounting structures.

Quick Selection Guide

FAQ

Q1. What is a solar mounting L foot?

A solar mounting L foot is an L-shaped aluminum bracket used to connect PV rails with roof structures or mounting foundations. It serves as a key connection component in solar mounting systems.

Q2. What material is used for PV L feet?

Most PV L feet are made from 6005-T5 aluminum alloy because of its mechanical strength, lightweight properties, and corrosion resistance.

Q3. Where are L feet used?

Solar Mounting L-foot are commonly used in metal roof systems, concrete roof solar installations, ground-mounted PV structures, and commercial photovoltaic projects.

Q4. Can solar mounting L feet be customized?

Yes. Dimensions, thickness, slot design, surface treatment, and connection methods can be customized according to different solar mounting structures.

Q5. What is the expected service life of aluminum L feet?

When properly selected with suitable materials, surface treatment, and compatible mounting components, anodized aluminum L feet can meet the long-term operating requirements of photovoltaic systems.

Factory & Quality Control

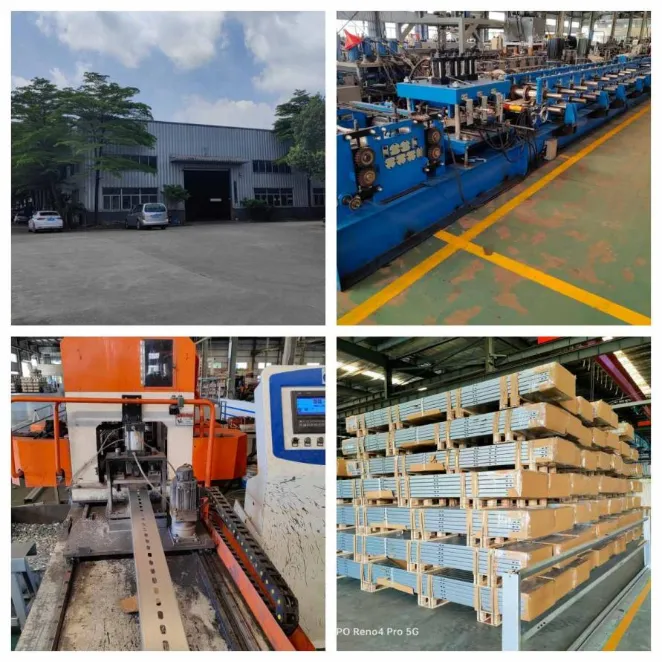

Xiamen Honor Energy produces solar mounting accessories through controlled manufacturing processes, including raw material inspection, forming or machining, surface treatment, and final quality verification.

Quality control focuses on material consistency, dimensional accuracy, surface treatment quality, and product performance.

Packaging options include exporting wooden pallets and steel pallets to protect components during transportation.

Certifications

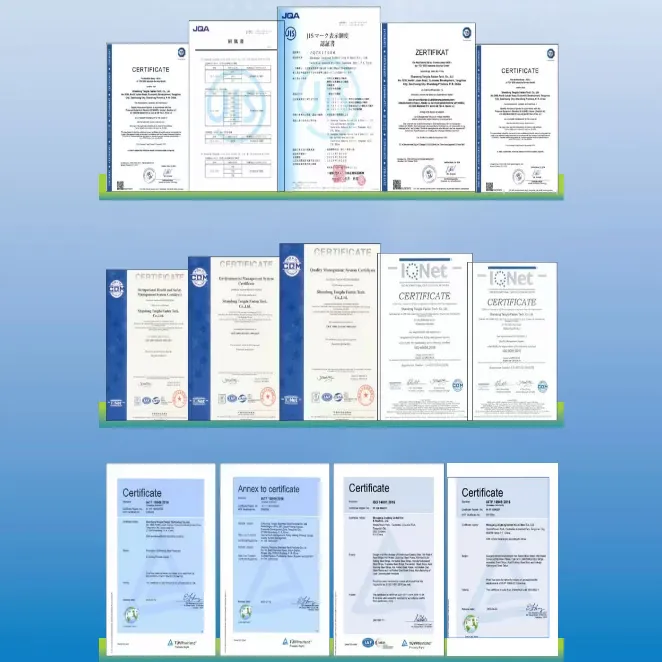

Xiamen Honor Energy follows quality management standards for solar mounting component production, including:
