Solar Connecting Plate

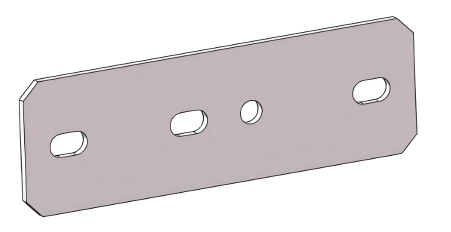

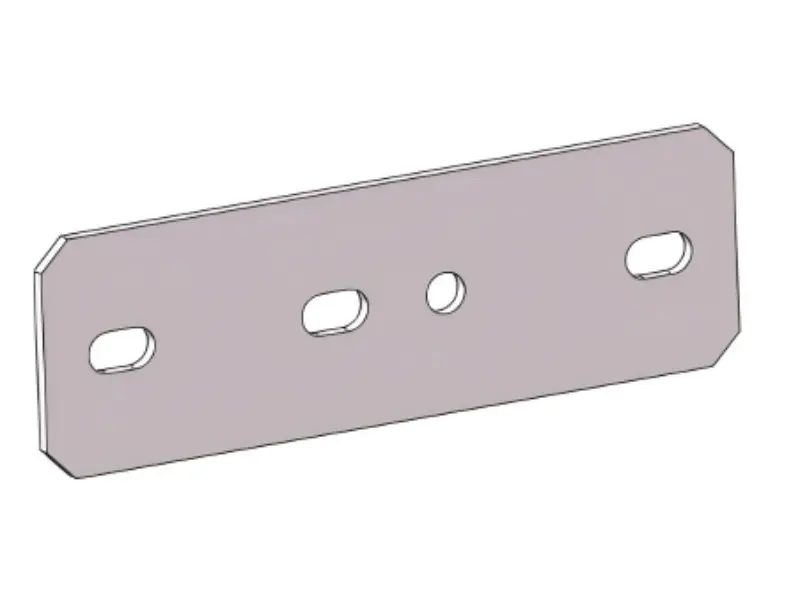

The part called a Solar Connecting Plate is basically a strong, flat piece of metal, shaped like a thick rectangle. It's built tough from high-strength steel that's coated to prevent rust. Lots of bolt holes drilled into it in a very specific, planned-out pattern.Its main job is to be a super solid link. It acts like a heavy-duty connector that bolts together and locks two major parts of the support structure: the horizontal beams that hold the solar panels up and the vertical posts that are anchored in the ground. By joining these parts tightly, it makes sure that all the weight and force from the panels and wind gets safely transferred down through the entire structure and into the ground.

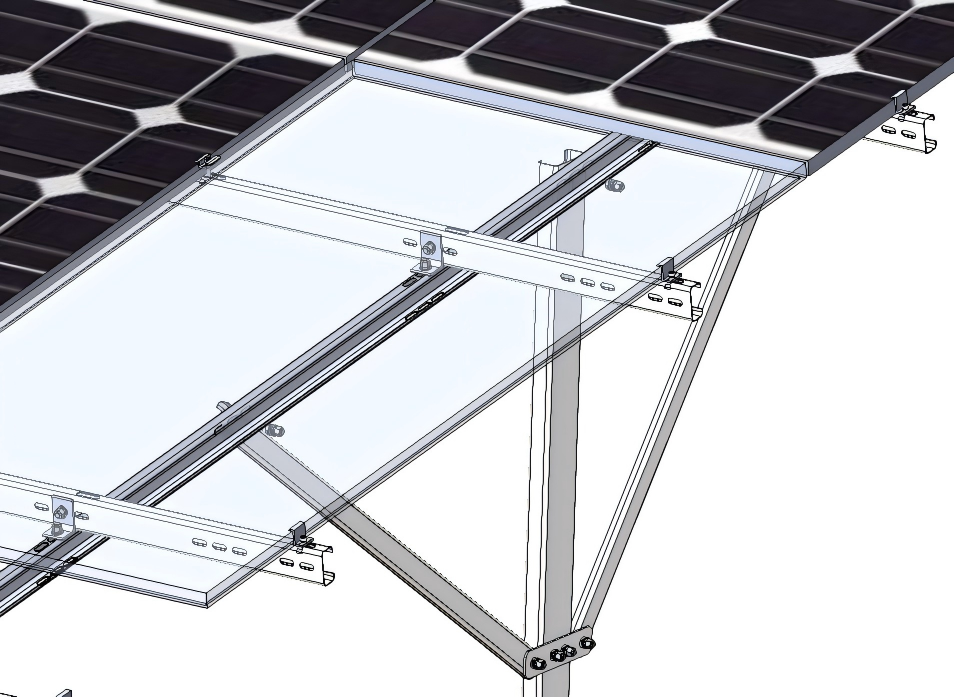

Connection method

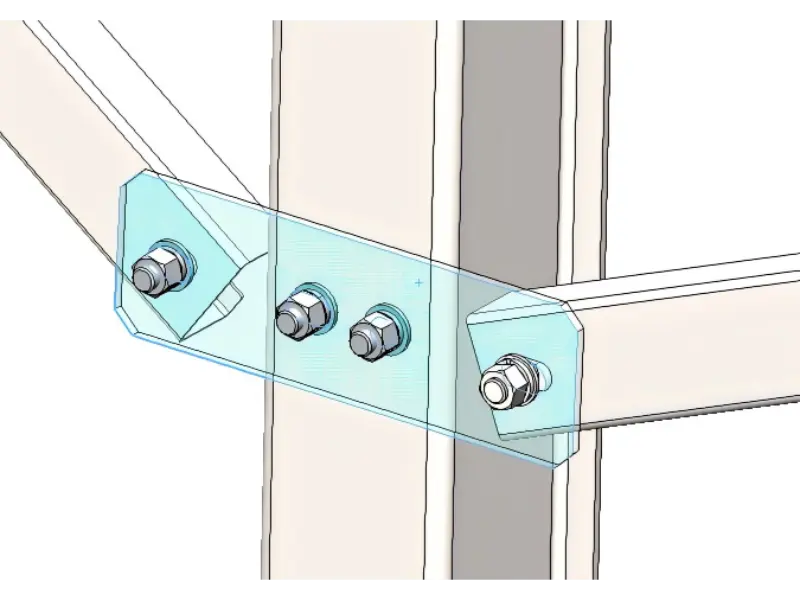

Connecting solar plate is commonly found in single-column ground support systems or ground support systems requiring additional diagonal bracing. This is because it effectively transfers all forces to the main column, thereby reinforcing the length of the main longitudinal beam and securing it in place. It must have a minimum of four holes: the outer holes for connecting the diagonal bracing, and the two central holes for connecting the main column.

The holes of Solar mount connecting plate on either side are typically arranged in pairs, as usually only two inclined cables need to be secured to the column. The central holes are generally arranged either horizontally in pairs or vertically in pairs. Although the orientation differs, the stress distribution remains essentially the same. Nowadays, the holes are typically designed in a vertical arrangement to avoid stress concentration along the same horizontal line, thereby enhancing stability.

Design features

The Mount solar connecting plate also has a smart design: its top and bottom edges are bent or folded. Builders often use this shape in places that get a lot of heavy wind or snow. The folded edges on the connecting plate work just like the reinforced corners on a sturdy shipping box. This isn't just for looks; it actually locks the metal into a much more rigid shape that resists flexing.
