solar waterproof clamp

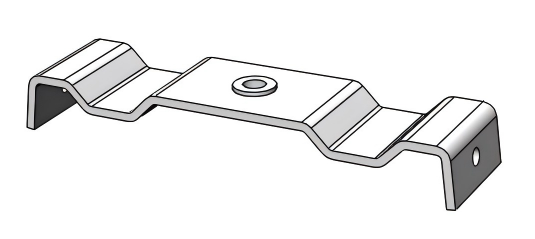

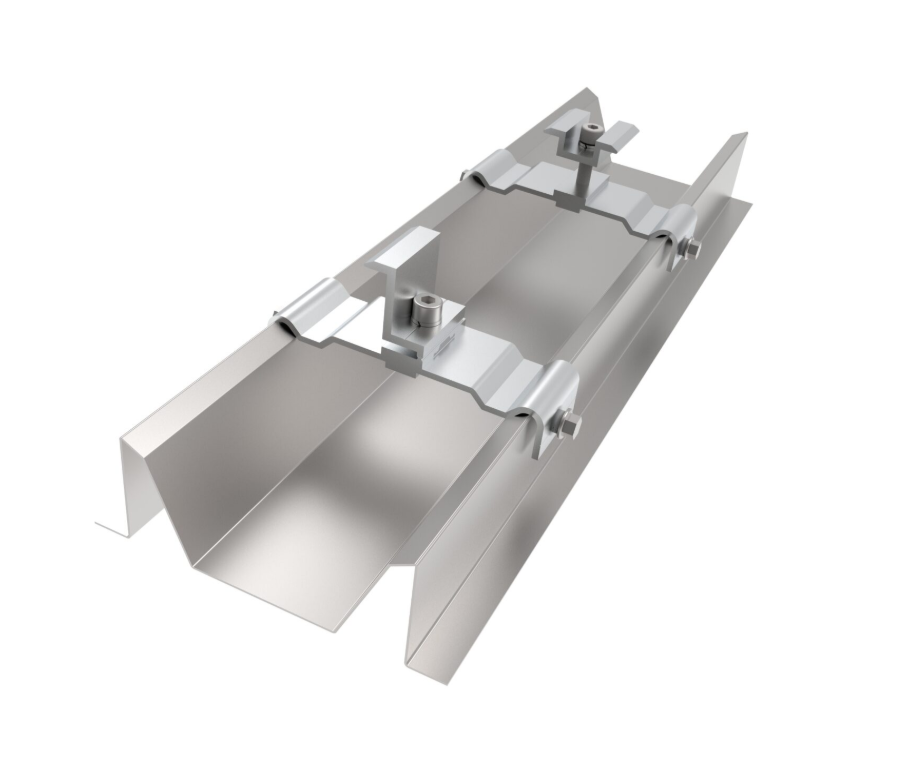

Solar waterproof clamp’s shape resembles that of a bat, and many people find it hard to imagine its function upon first sight. Yet it plays a crucial role within a waterproof photovoltaic mounting system. This is because the water channel lacks central side pressure relief holes, necessitating its design and rendering its function indispensable. It ensures water drainage performance while simultaneously maintaining the stability of the photovoltaic panels.You can come to our factory to have your products customized.

Installation Process

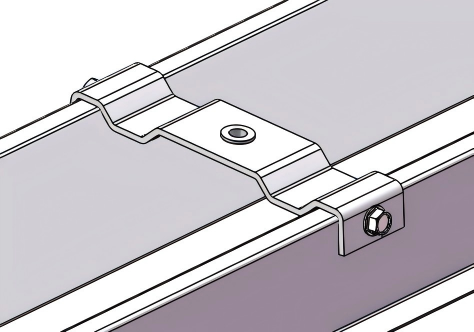

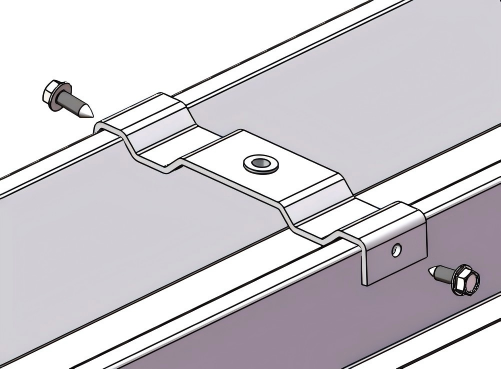

Solar waterproof clamp on rails’ installation process is extremely straightforward, and its design is equally simple. During installation, simply place it onto the gutter, secure it on both sides, then use self-tapping screws to drill holes and lock it in place. However, note that two self-tapping screws must be installed on each side, and they must be aligned to ensure even force distribution across the photovoltaic panel.

Accessory Installation Steps

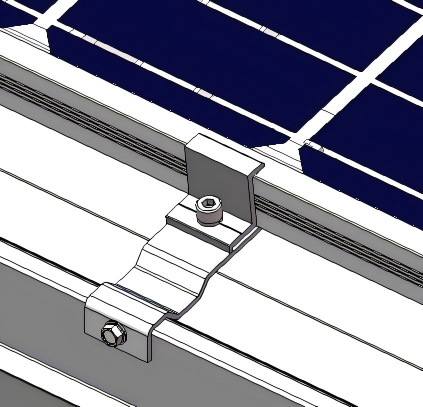

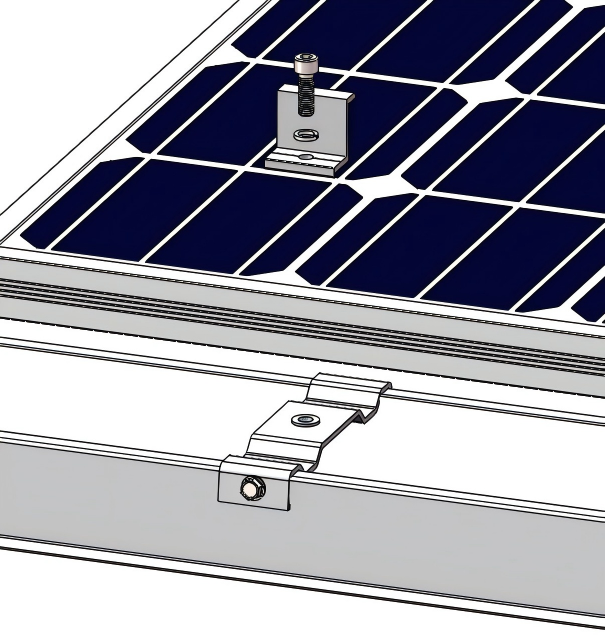

The process of installing the mid clamp and end clamp onto solar waterproof rail clamp’s mounting surface is straightforward. First, thread the center side pressure plate onto the bolt in the sequence of bolt, flat washer, and then align it with the mounting holes. Next, screw the nut onto the bolt, and finally tighten the nut to complete the installation. Note that although its wall thickness is relatively thin, it can still withstand the force of tightening the bolt.

The meaning of its existence

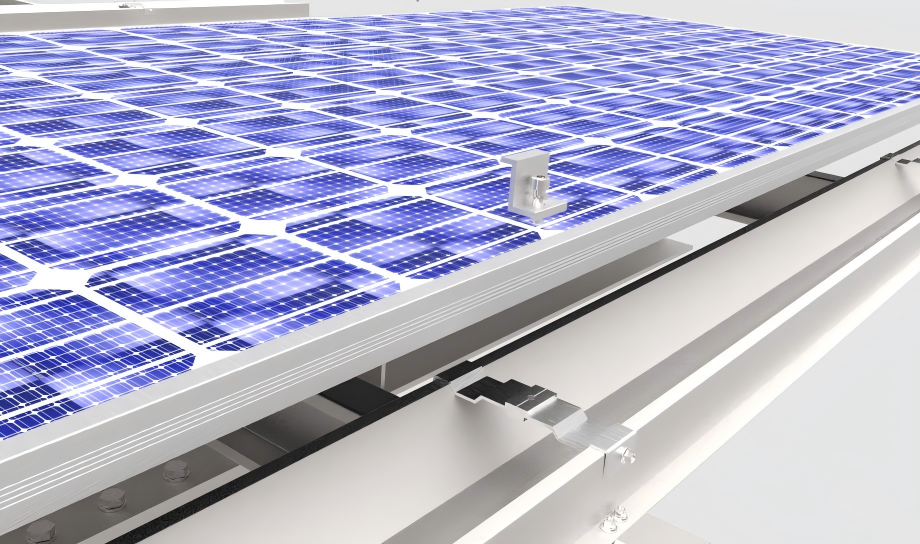

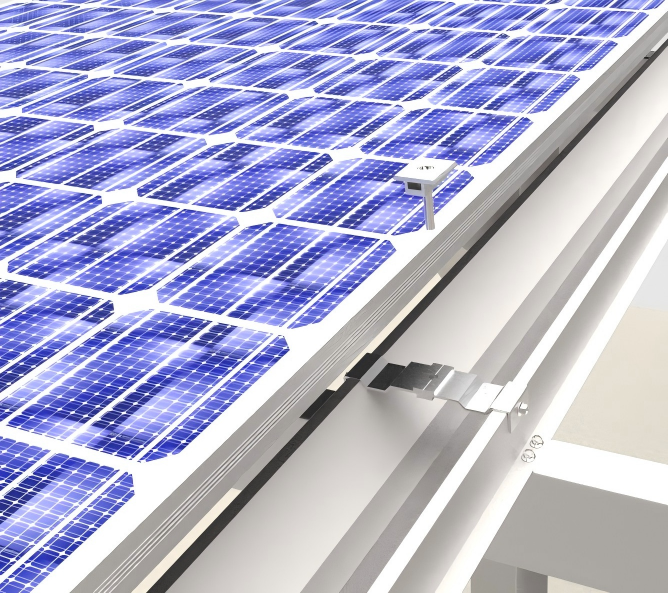

Though merely an accessory, waterproof solar rail clamp compensates for the inconvenience of drilling holes in the water channel. This led to the decision to construct a bridge-like structure above it, which became the most crucial element ensuring the panel's stability. It is not just an accessory; more importantly, it supports the panel and provides structural stability.
