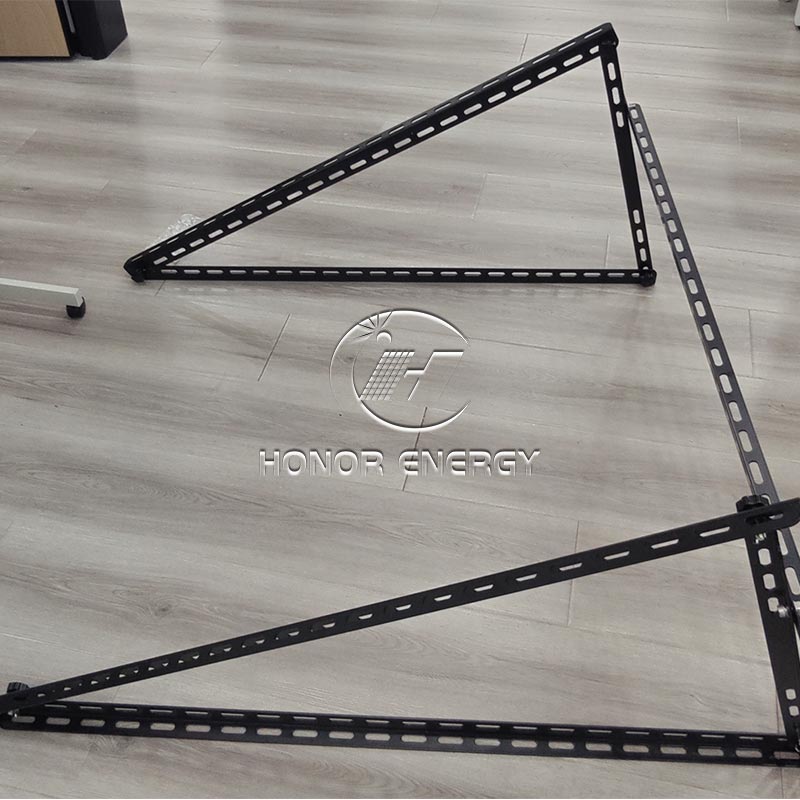

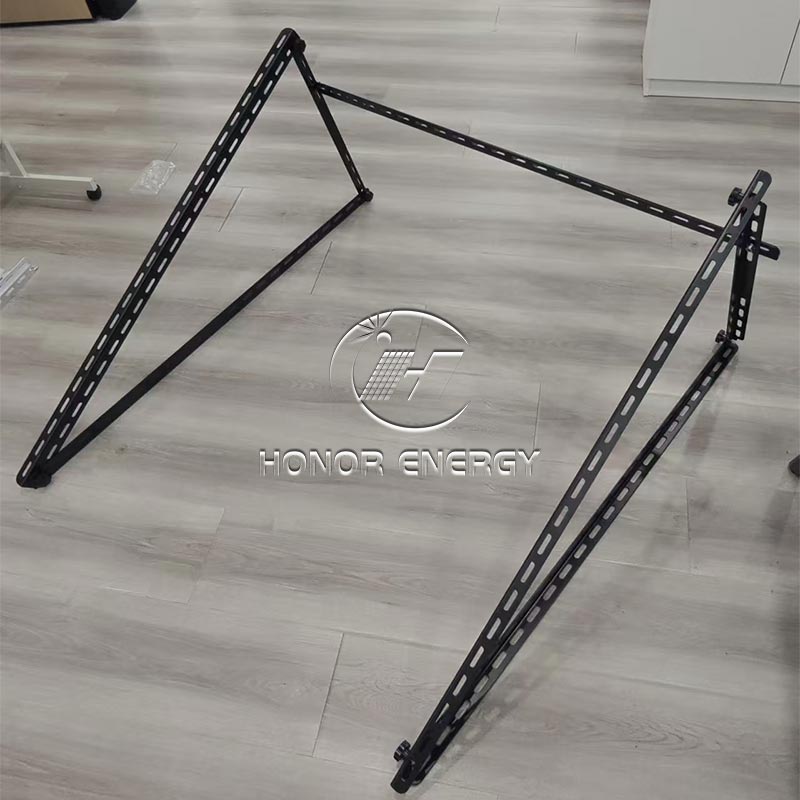

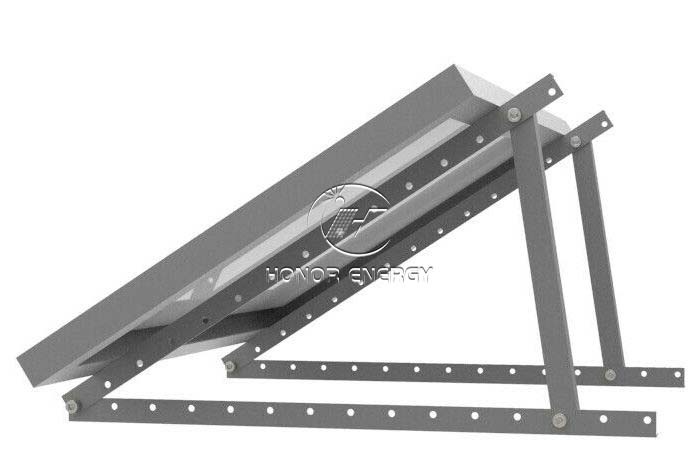

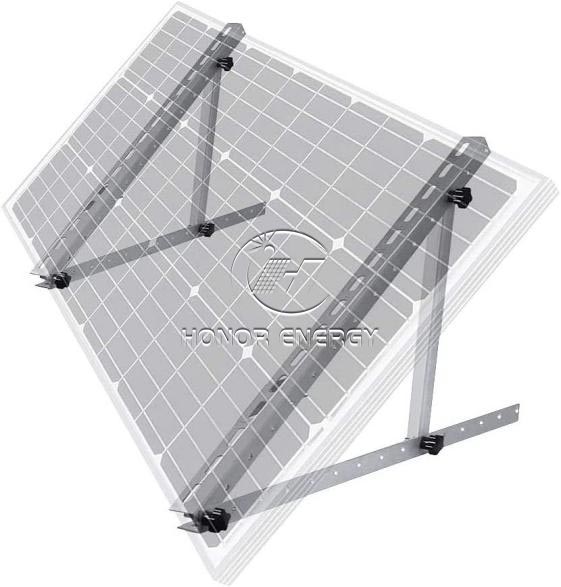

Steel Adjustable Solar Roof Mount
Steel Adjustable Solar Roof Mount is one kind of product which is manufactured by Honor New Energy Technology.It can be adjusted to the desired angle to maximize the efficiency of solar power generation. It is made of steel and has high strength. It reduces additional load on the roof and avoids obstructing or affecting the roof's functionality.
Honor New Energy is a solar mount manufacturer and produce Steel Adjustable Solar Roof Mount for home projects and small-scale projects. Its greatest advantage is that the tilt angle can be manually adjusted to keep the photovoltaic panels close to the optimal angle of incidence of the sun, maximizing solar energy capture efficiency. At the same time, the use of steel can better withstand wind and snow pressure, improving stability.
Advantage
1.Adjustable solar panel roof mount can be adjusted the angle to you need
for the best efficiency.
2.It can be adapted to different roof types(e.g.Flat Roof,Tile Roof,etc.)
and building structures.
3.It requires few materials, low cost and simple structure, low maintenance
costs.
Adjust Time
Since adjustable solar roof mount requires manual adjustment, it is suitable for installation in regions with a latitude between 30°and 45°, so it can be adjusted 2 to 4 times a year as needed.
Twice per year plan
Summer(May–September):Set the inclination angle to the local latitude -
15°.
Winter(October to April of the following year):Set the inclination angle to
the local latitude + 15°.
Four times per year plan
| Season | Adjust Time | Inclination angle | Basis for adjustment |
| Spring | March | The local latitude*0.9-10° | The sun's altitude gradually rises. |
| Summer | June | The local latitude-15° | The sun's altitude angle is at its highest, and the inclination angle is reduced. |
| Autumn | September | The local latitude*0.9+5° | The sun's altitude begins to decrease. |
| Winter | December | The local latitude+15° | The sun's altitude angle is at its lowest, increasing the tilt angle. |
