Z-bracket for Solar Panel Mounting

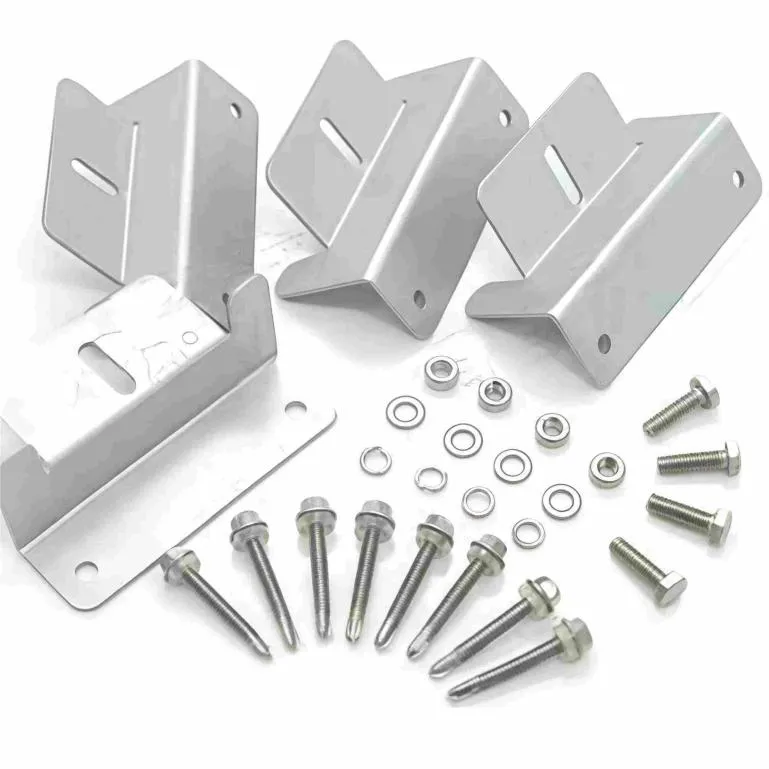

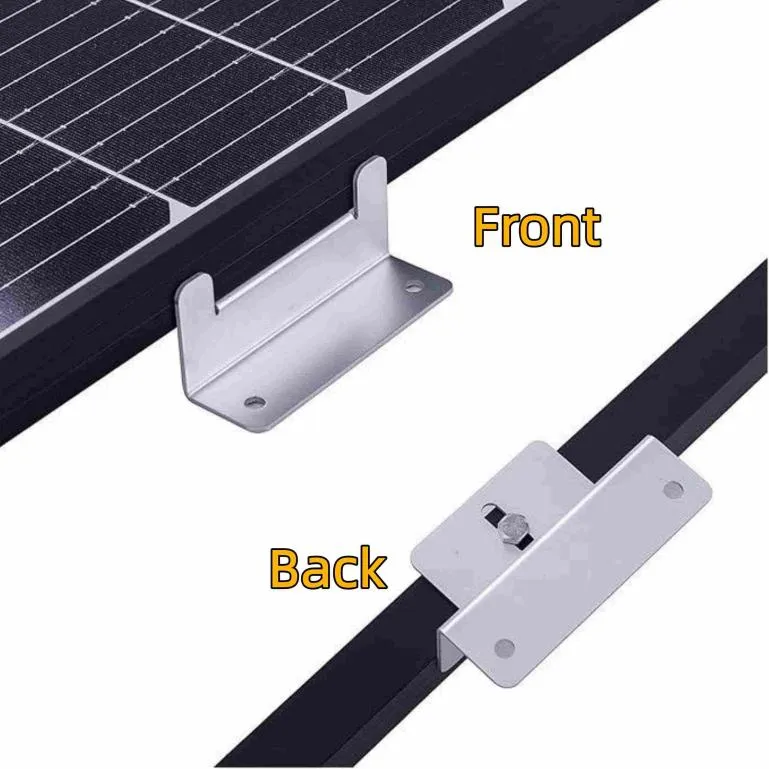

This Z-bracket aluminum solar panel bracket from Xiamen Honor Energy supports customization and wholesale. Unlike common rail-based mounting, this PV bracket is fixed directly onto the roof of an RV or shipping container. The Z-shaped structure creates a gap between the panel and the roof surface for cable routing and heat dissipation. During installation, self-tapping screws or bolts go through the bottom holes and lock directly onto the vehicle or container roof—no mounting rails are needed. For RVs and containers with flat roofs and limited load capacity, this method reduces the number of parts and overall weight. Suitable for solar installers and conversion workshops looking to purchase a rail-free mounting solution.

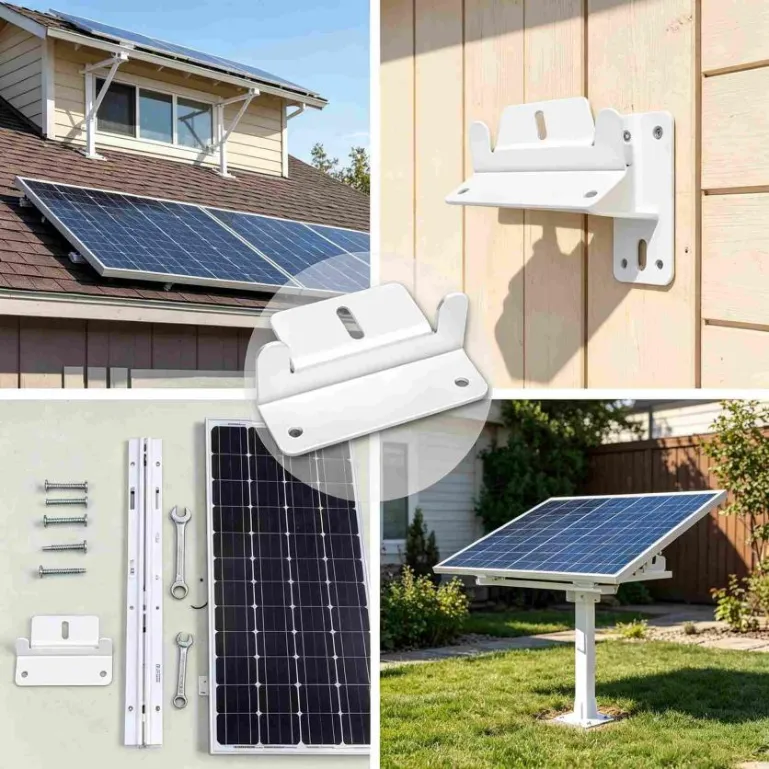

Application

l RV roofs: Fixed directly onto the flat roof to power interior systems.

l Shipping container tops: For container homes or mobile energy storage units.

l Special vehicles: Campervans, engineering vehicles, etc.

l Temporary buildings: Prefab houses, guard booths, and other flat-roof solar setups.

Technical Parameters

FAQ

1. This Z-bracket is screwed directly onto an RV roof. How do you handle waterproofing?

The bracket itself is not waterproof. During installation, apply sealant (such as butyl or silicone) around the screw holes before driving the screws in. It is also recommended to add a waterproof gasket or strip between the bracket base and the roof surface, so rainwater does not seep through the holes. If the RV roof is fiberglass or metal, clean the surface thoroughly before applying sealant for better adhesion.

2. Without rails, is direct mounting on a container roof strong enough?

Load capacity depends on two things: the thickness and material of the container roof, and the fastening method. For standard steel containers, the roof panel is usually 1.6mm to 2.0mm thick. Using self-tapping screws with sealant, combined with the multi-point force distribution of the Z-bracket, is generally sufficient for standard-sized solar panels. For aluminum or fiberglass roofs, check the panel thickness first. If needed, add a backing plate inside or use rivet nuts to prevent screws from pulling out.

3. What if the RV or container roof is not perfectly flat?

Minor unevenness is usually fine. The Z-bracket base has a contact surface that can sit flush after tightening. However, if the roof has a noticeable curve or uneven spots, it is better to add shims under the bracket base, or choose a thicker aluminum bracket (e.g., 3.0mm) to reduce uneven stress on the panel after installation. Before drilling, place the bracket on the roof to check the fit.
